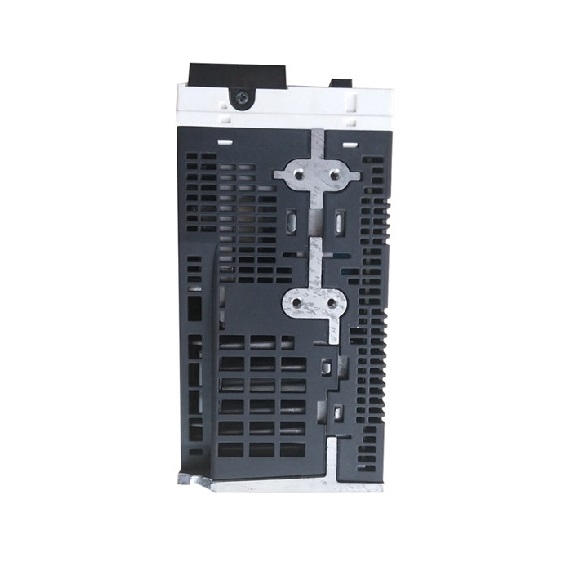

Panasonic Servo Driver MINAS A6 | MFDLNA3SE MFDLNA3SG MFDLTA3SF | MFDLNB3SE MFDLNB3SG MFDLTB3SF |
Power supply input | 3 phase 200 V | 3 phase 200 V |
Maximum output current | 100 A | 120 A |
Rotary encoder | Resolution:8388608 P/r | Resolution:8388608 P/r |
Regenerative resistor | Built-in | Built-in |
Auto gain tuning function | Provided | Provided |
Dynamic brake function | Provided | Provided |
Absolute system | Available NOTE) | Available NOTE) |
Operation temperature | 0 – 55 °C | 0 – 55 °C |
Control power cable | HVSF 0.75 mm2 | HVSF 0.75 mm2 |
Control power cable | AWG18 | AWG18 |
Main power supply cable | HVSF 3.5 mm2 | HVSF 3.5 mm2 |
Main power supply cable | AWG12 | AWG12 |
Ground cable | HVSF 3.5 mm2 | HVSF 3.5 mm2 |
Ground cable | AWG12 | AWG12 |
Motor cable | HVSF 3.5 mm2 | HVSF 3.5 mm2 |
Motor cable | AWG12 | AWG12 |
Inrush current(Main power supply) (*1) | Max. 22 A | Max. 22 A |
Inrush current(Control power supply) (*1) | Max. 14 A | Max. 14 A |
Weight | Approx 5.2 kg | Approx 5.2 kg |
Dimensions | Size F | Size F |
