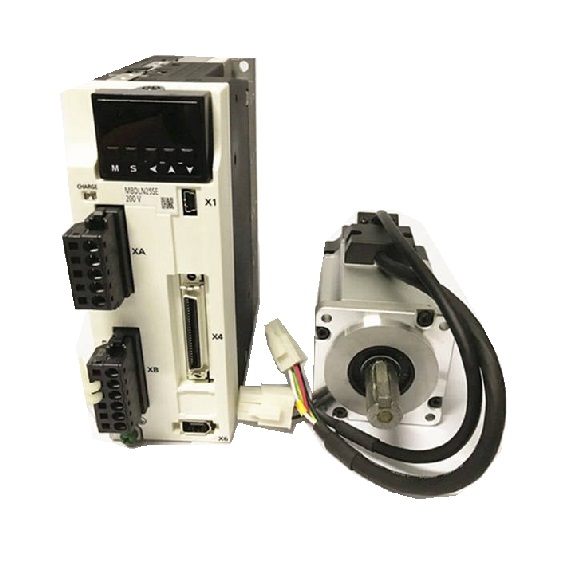

Panasonic Servo Driver MINAS A6 850W MDDLN55NE

Panasonic Servo Driver MINAS A6 850W MDDLN55NE
We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
100% Original and new,In stock by Panasonic Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Panasonic Servo Driver MINAS A6	MDDLN45SE MDDLN45SG MDDLT45SF	MDDLN55SE MDDLN55SG MDDLT55SF	MEDLN83SE MEDLN83SG MEDLT83SF	MEDLN93SE MEDLN93SG MEDLT93SF
Power supply input	Single phase/ 3 phase 200 V	Single phase/ 3 phase 200 V	3 phase 200V	3 phase 200V
Maximum output current	24 A	40 A	60 A	80 A
Rotary encoder	Resolution:8388608 P/r	Resolution:8388608 P/r	Resolution:8388608 P/r	Resolution:8388608 P/r
Regenerative resistor	Built-in	Built-in	Built-in	Built-in
Auto gain tuning function	Provided	Provided	Provided	Provided
Dynamic brake function	Provided	Provided	Provided	Provided
Absolute system	Available NOTE)	Available NOTE)	Available NOTE)	Available NOTE)
Operation temperature	0 – 55 °C	0 – 55 °C	0 – 55 °C	0 – 55 °C
Control power cable	HVSF 0.75 mm2	HVSF 0.75 mm2	HVSF 0.75 mm2	HVSF 0.75 mm2
Control power cable	AWG18	AWG18	AWG18	AWG18
Main power supply cable	HVSF 2.0 mm2	HVSF 2.0 mm2	HVSF 2.0 mm2	HVSF 2.0 mm2
Main power supply cable	AWG14	AWG14	AWG14	AWG14
Ground cable	HVSF 2.0 mm2	HVSF 2.0 mm2	HVSF 2.0 mm2	HVSF 2.0 mm2
Ground cable	AWG14	AWG14	AWG14	AWG14
Motor cable	HVSF 2.0 mm2	HVSF 2.0 mm2	HVSF 2.0 mm2	HVSF 3.5 mm2
Motor cable	AWG14	AWG14	AWG14	AWG12
Inrush current(Main power supply) (*1)	Max. 29 A	Max. 29 A	Max. 29 A	Max. 29 A
Inrush current(Control power supply) (*1)	Max. 14 A	Max. 14 A	Max. 14 A	Max. 14 A
Weight	Approx 2.1 kg	Approx 2.1 kg	Approx 2.7 kg	Approx 2.7 kg
Dimensions	Size D	Size D	Size E	Size E
