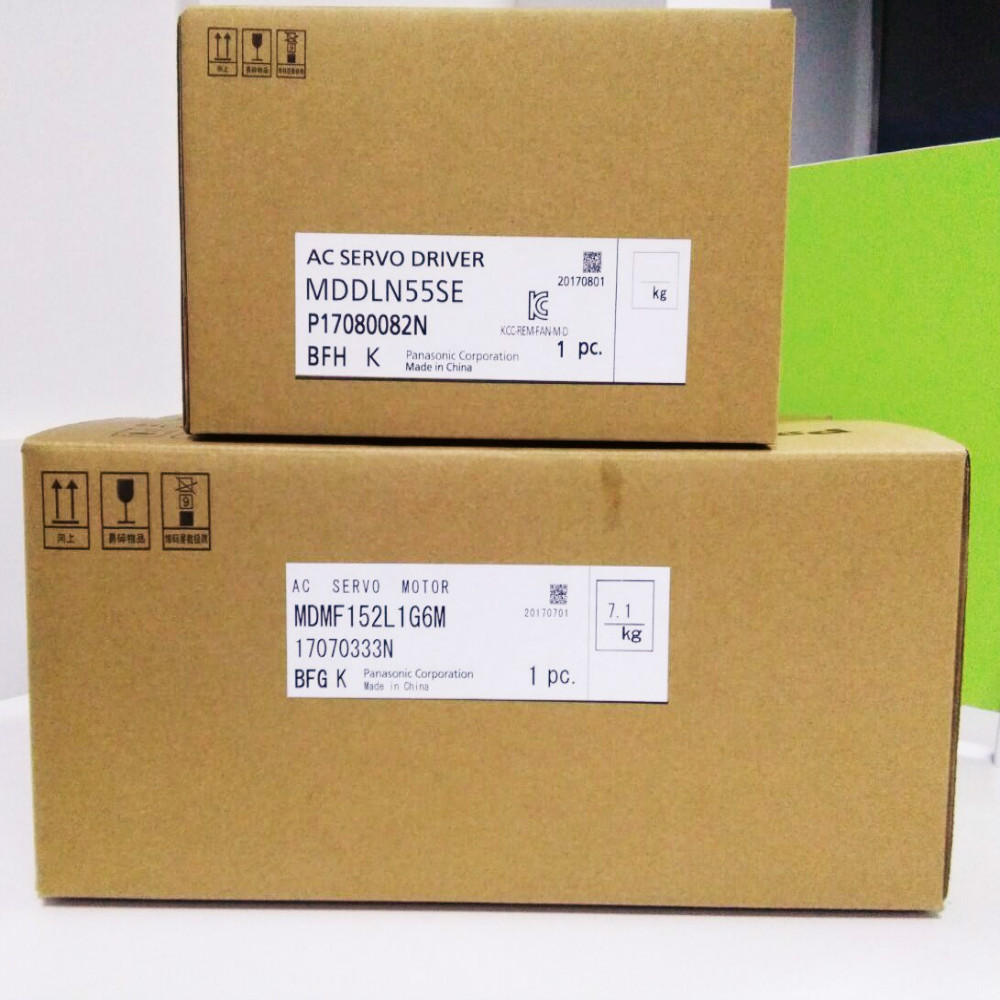

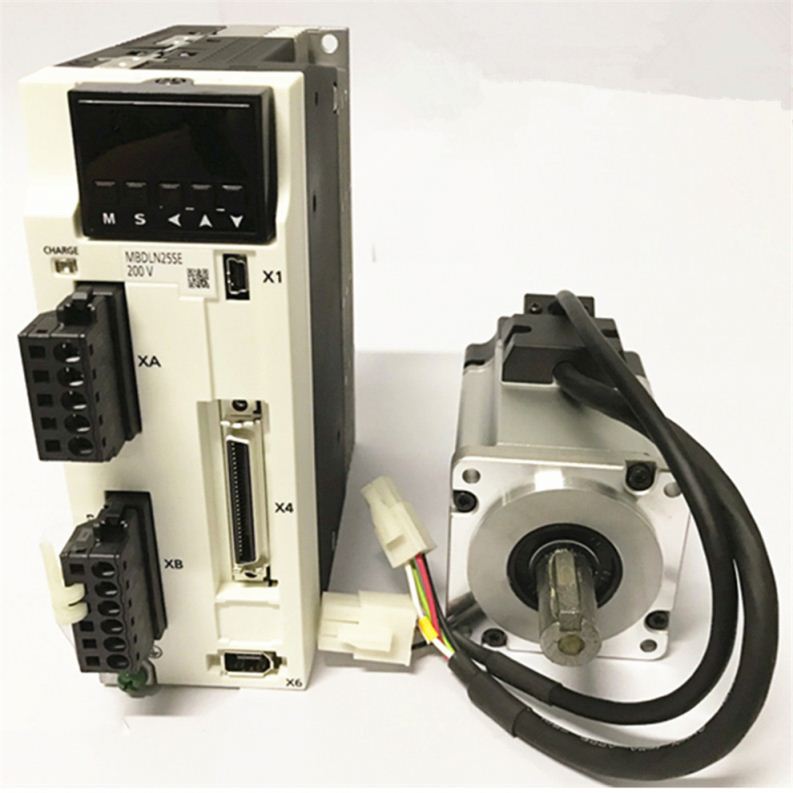

Panasonic Servo Driver MINAS A6 850W MDDLN55SG

Series#: Panasonic Servo Drive

Product Details

  • Panasonic Servo Driver MINAS A6 850W MDDLN55SG
  • Multifunctional software for quick adjustment support
  • Enhanced position detecting resolution enables smoother and more precise positioning.
  • High-speed response, high-precision positioning for quick and accurate movement
  • Small, light, powerful*1 and speedy
  • Easy and quick setting, shortening conventional settling time by approx. 64%*1.
  • Realized 3.2 kHz frequency response to improve productivity.
  • Lineup of motors protected by high dust-proof, high heat-resistant oil seal (With protective lip)
Qty:

Specification

Model No. MADLN01SE MADLN01SG MADLT01SF MADLN11SE MADLN11SG MADLT11SF MADLN05SE MADLN05SG MADLT05SF MADLN15SE MADLN15SG MADLT15SF
Power supply input Single phase 100 V Single phase 100 V Single phase/ 3 phase 200 V Single phase/ 3 phase 200 V
Maximum output current 6 A 8 A 6 A 8 A
Rotary encoder Resolution:8388608 P/r Resolution:8388608 P/r Resolution:8388608 P/r Resolution:8388608 P/r
Regenerative resistor Externally connected Externally connected Externally connected Externally connected
Auto gain tuning function Provided Provided Provided Provided
Dynamic brake function Provided Provided Provided Provided
Absolute system Available NOTE) Available NOTE) Available NOTE) Available NOTE)
Operation temperature 0 – 55 °C 0 – 55 °C 0 – 55 °C 0 – 55 °C
Control power cable HVSF 0.75 mm2 HVSF 0.75 mm2 HVSF 0.75 mm2 HVSF 0.75 mm2
Control power cable AWG18 AWG18 AWG18 AWG18
Main power supply cable HVSF0.75 – 2.0 mm2 HVSF0.75 – 2.0 mm2 HVSF0.75 – 2.0 mm2 HVSF0.75 – 2.0 mm2
Main power supply cable AWG14 – 18 AWG14 – 18 AWG14 – 18 AWG14 – 18
Ground cable HVSF 2.0 mm2 HVSF 2.0 mm2 HVSF 2.0 mm2 HVSF 2.0 mm2
Ground cable AWG14 AWG14 AWG14 AWG14
Motor cable HVSF0.75 – 2.0 mm2 HVSF0.75 – 2.0 mm2 HVSF0.75 – 2.0 mm2 HVSF0.75 – 2.0 mm2
Motor cable AWG14 – 18 AWG14 – 18 AWG14 – 18 AWG14 – 18
Inrush current(Main power supply) (*1) Max. 7 A Max. 7 A Max. 14 A Max. 14 A
Inrush current(Control power supply) (*1) Max. 7 A Max. 7 A Max. 14 A Max. 14 A
Weight Approx 0.8 kg Approx 0.8 kg Approx 0.8 kg Approx 0.8 kg
Dimensions Size A Size A Size A Size A
