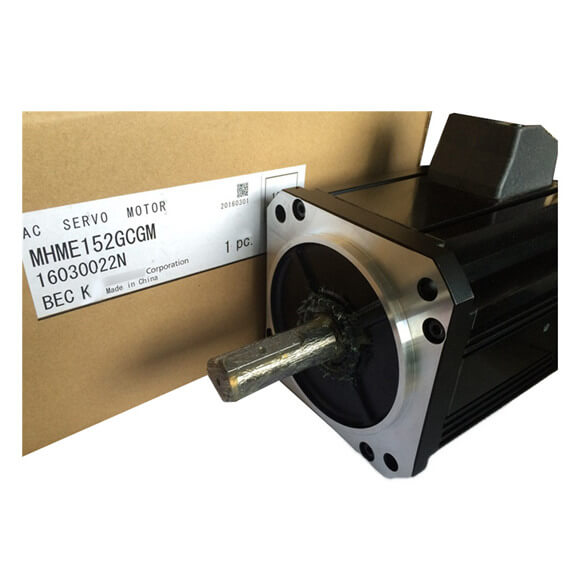

Panasonic Servo Motor MINAS A5 1.5KW MHME152GCGM/MHME152GCG

Panasonic Servo Motor MINAS A5 1.5KW MHME152GCGM/MHME152GCG
We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
100% Original and new,In stock by Panasonic Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Panasonic Servo Motor MINAS A5	AC200 V
Panasonic Servo Motor MINAS A5 MHME	MHME152GC□	MHME152SC□
Panasonic Servo Motor MINAS A5 MHME	MHME152G1□	MHME152S1□
A5Ⅱ, A5 series	MDD◇T5540
A5ⅡE, A5E series	MDD◇T5540E	–
Frame symbol	D-frame
Power supply capacity (kVA)	2.3
Rated output (W)	1500
Rated torque (N•m)	7.16
Momentary Max. peak torque (N•m)	21.5
Rated current (A(rms))	9.4
Max. current (A(o-p))	40
Without option	22
DV0P4284	130
Rated rotational speed (r/min)	2000
Max. rotational speed (r/min)	3000
Moment of inertia of rotor (×10−4 kg•m2) Without brake	37.1
With brake	38.4
Recommended moment of inertia ratio of the load and the rotor Note)3	5 times or less
Rotary encoder specifications Note)5	20-bit Incremental	17-bit Absolute
Resolution per single turn	1048576	131072
