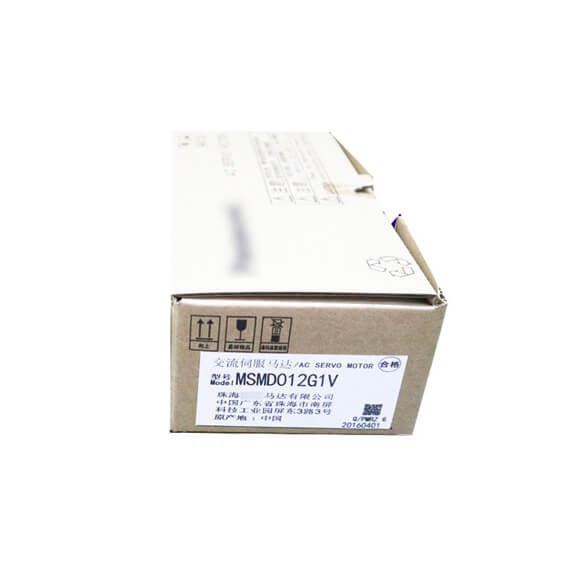

Panasonic Servo Motor MINAS A5 100W MSMD012G1U

Series#: Panasonic Servomotor

Product Details

  • Panasonic Servo Motor MINAS A5 100W MSMD012G1U
  • We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
  • 100% Original and new,In stock by Panasonic Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Panasonic Servo Motor MINAS A5 AC100 V
Panasonic Servo Motor MINAS A5

IP65

MSMD5AZG1□ MSMD5AZS1□
Panasonic Servo Motor MINAS A5

IP67

A5Ⅱ, A5 series MAD◇T1105
A5ⅡE, A5E series MAD◇T1105E
Frame symbol A-frame
Power supply capacity (kVA) 0.4
Rated output (W) 50
Rated torque (N•m) 0.16
Momentary Max. peak torque (N•m) 0.48
Rated current (A(rms)) 1.1
Max. current (A(o-p)) 4.7
Regenerative brake frequency (times/min) Note)1

Without option

No limit Note)2
DV0P4280 No limit Note)2
Rated rotational speed (r/min) 3000
Max. rotational speed (r/min) 5000
Moment of inertia

of rotor (×10−4 kg•m2)

Without brake

0.025
With brake 0.027
Recommended moment of inertia ratio of the load and the rotor Note)3 30 times or less
Rotary encoder specifications Note)5 20-bit Incremental 17-bit Absolute
Resolution per single turn 1048576 131072
Panasonic Servo Motor MINAS A5 AC200 V
Panasonic Servo Motor MINAS A5 IP65 MSMD5AZG1□ MSMD5AZS1□
 Panasonic Servo Motor MINAS A5

IP67



A5Ⅱ, A5 series

MAD◇T1505
A5ⅡE, A5E series MAD◇T1505E
Frame symbol A-frame
Power supply capacity (kVA) 0.5
Rated output (W) 50
Rated torque (N•m) 0.16
Momentary Max. peak torque (N•m) 0.48
Rated current (A(rms)) 1.1
Max. current (A(o-p)) 4.7
Regenerative brake frequency (times/min) Note)1

Without option

No limit Note)2
DV0P4281 No limit Note)2
Rated rotational speed (r/min) 3000
Max. rotational speed (r/min) 5000
Moment of inertia

of rotor (×10−4 kg•m2)

Without brake

0.025
With brake 0.027
Recommended moment of inertia ratio of the load and the rotor Note)3 30 times or less
Rotary encoder specifications Note)5 20-bit Incremental 17-bit Absolute
Resolution per single turn 1048576 131072
