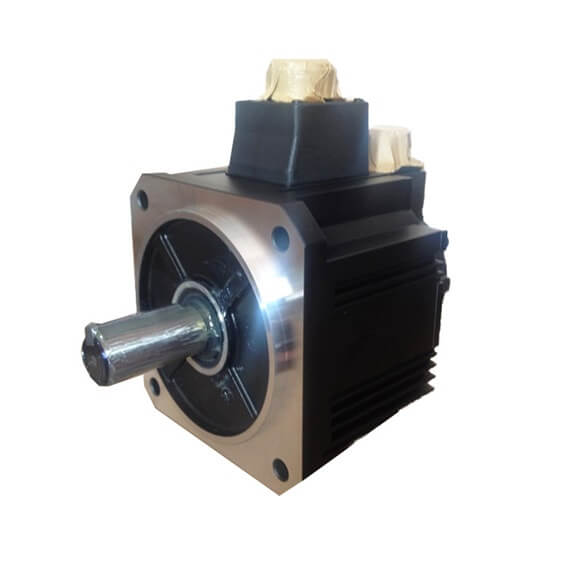

Panasonic Servo Motor MINAS A5 1KW MDME | AC200 V | |
Panasonic Servo Motor MINAS A5 | MDME102GC□ | MDME102SC□ |
Panasonic Servo Motor MINAS A5 | MDME102G1□ | MDME102S1□ |
A5Ⅱ, A5 series | MDD◇T3530 | |
A5ⅡE, A5E series | MDD◇T3530E | – |
Frame symbol | D-frame | |
Power supply capacity (kVA) | 1.8 | |
Rated output (W) | 1000 | |
Rated torque (N•m) | 4.77 | |
Momentary Max. peak torque (N•m) | 14.3 | |
Rated current (A(rms)) | 5.7 | |
Max. current (A(o-p)) | 24 | |
Without option | No limit Note)2 | |
DV0P4284 | No limit Note)2 | |
Rated rotational speed (r/min) | 2000 | |
Max. rotational speed (r/min) | 3000 | |
Moment of inertia
of rotor (×10−4 kg•m2) Without brake |
4.60 | |
With brake | 5.90 | |
Recommended moment of inertia ratio of the load and the rotor Note)3 | 10 times or less | |
Rotary encoder specifications Note)5 | 20-bit Incremental | 17-bit Absolute |
Resolution per single turn | 1048576 | 131072 |
