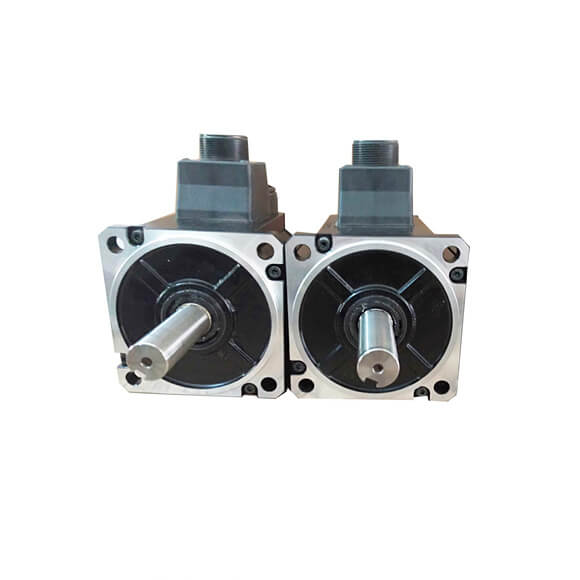

Panasonic Servo Motor MINAS A5 1KW MSME102GCG/MSME102GCGM

Series#: Panasonic Servomotor

Product Details

  • Panasonic Servo Motor MINAS A5 1KW MSME102GCG/MSME102GCGM
  • We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
  • 100% Original and new,In stock by Panasonic Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Panasonic Servo Motor MINAS A5 AC200 V
Panasonic Servo Motor MINAS A5 MSME MSME102GC□ MSME102SC□
Panasonic Servo Motor MINAS A5 MSME MSME102G1□ MSME102S1□
Applicable driver *2 A5Ⅱ, A5 series MDD◇T5540
 A5ⅡE, A5E series MDD◇T5540E
 Frame symbol D-frame
Power supply capacity (kVA) 1.8
Rated output (W) 1000
Rated torque (N•m) 3.18
Momentary Max. peak torque (N•m) 9.55
Rated current (A(rms)) 6.6
Max. current (A(o-p)) 28
Regenerative brake frequency (times/min) Note)1

Without option

No limit Note)2
 DV0P4284 No limit Note)2
Rated rotational speed (r/min) 3000
Max. rotational speed (r/min) 5000
Moment of inertia

of rotor (×10−4 kg•m2)

Without brake

2.03
 With brake 2.35
Recommended moment of inertia ratio of the load and the rotor Note)3 15 times or less
Rotary encoder specifications Note)5 20-bit Incremental 17-bit Absolute
 Resolution per single turn 1048576 131072
