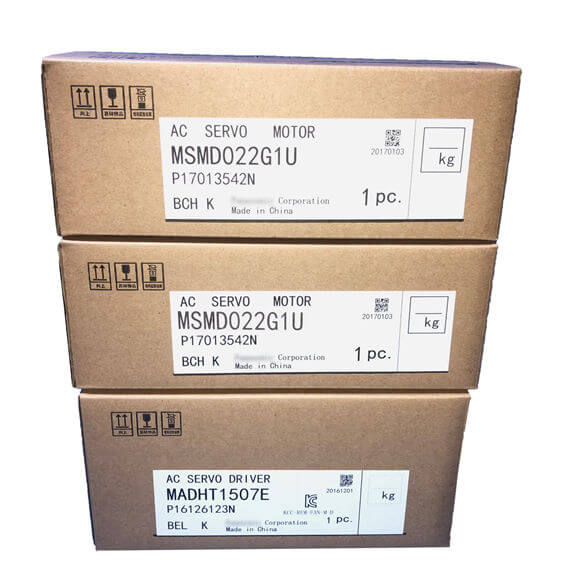

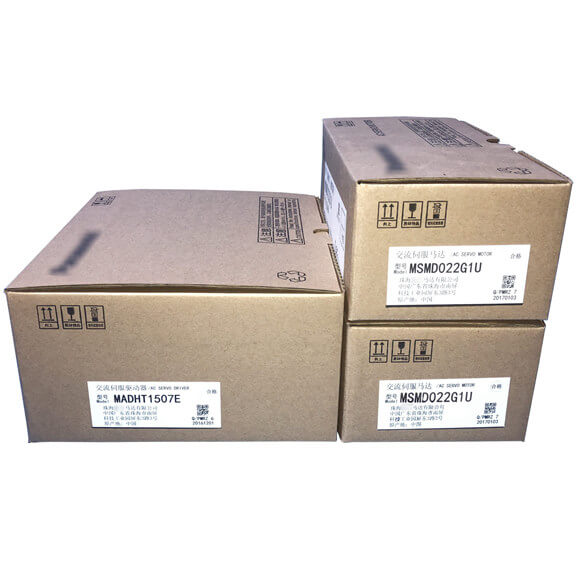

Panasonic Servo Motor MINAS A5 200W MSMJ022G1U/MSMD022G1U

Series#: Panasonic Servomotor

Product Details

  • Panasonic Servo Motor MINAS A5 200W MSMJ022G1U/MSMD022G1U
  • We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
  • 100% Original and new,In stock by Panasonic Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Panasonic Servo Motor MINAS A5  MSMD 200 W AC100 V
Panasonic Servo Motor MINAS A5  MSMD IP65 MSMD021G1□ MSMD021S1□
Panasonic Servo Motor MINAS A5  MSMD IP67
A5Ⅱ, A5 series MBD◇T2110
 A5ⅡE, A5E series MBD◇T2110E
 Frame symbol B-frame
Power supply capacity (kVA) 0.5
Rated output (W) 200
Rated torque (N•m) 0.64
Momentary Max. peak torque (N•m) 1.91
Rated current (A(rms)) 2.5
Max. current (A(o-p)) 10.6
Regenerative brake frequency (times/min) Note)1

Without option

No limit Note)2
DV0P4283 No limit Note)2
Rated rotational speed (r/min) 3000
Max. rotational speed (r/min) 5000
Moment of inertia

of rotor (×10−4 kg•m2)

Without brake

0.14
With brake 0.16
Recommended moment of inertia ratio of the load and the rotor Note)3 30 times or less
Rotary encoder specifications Note)5 20-bit Incremental 17-bit Absolute
Resolution per single turn 1048576 131072
