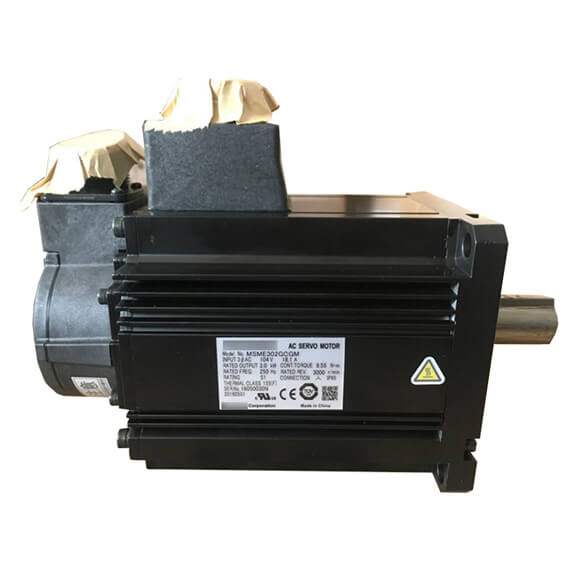

Panasonic Servo Motor MINAS A5 3kW3 MSME302GCG/MSME302GCGM

Panasonic Servo Motor MINAS A5 3kW3 MSME302GCG/MSME302GCGM
We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
100% Original and new,In stock by Panasonic Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Panasonic Servo Motor MINAS A5 3kW3 MSME	AC200 V
Panasonic Servo Motor MINAS A5 IP65	MSME302GC□	MSME302SC□
Panasonic Servo Motor MINAS A5 IP67	MSME302G1□	MSME302S1□
A5Ⅱ, A5 series	MFD◇TA390
A5ⅡE, A5E series	MFD◇TA390E	–
Frame symbol	F-frame
Power supply capacity (kVA)	4.5
Rated output (W)	3000
Rated torque (N•m)	9.55
Momentary Max. peak torque (N•m)	28.6
Rated current (A(rms))	18.1
Max. current (A(o-p))	77
Regenerative brake frequency (times/min) Note)1 Without option	No limit Note)2
DV0P4285×2	No limit Note)2
Rated rotational speed (r/min)	3000
Max. rotational speed (r/min)	5000
Moment of inertia of rotor (×10−4 kg•m2) Without brake	6.50
With brake	6.85
Recommended moment of inertia ratio of the load and the rotor Note)3	15 times or less
Rotary encoder specifications Note)5	20-bit Incremental	17-bit Absolute
Resolution per single turn	1048576	131072
