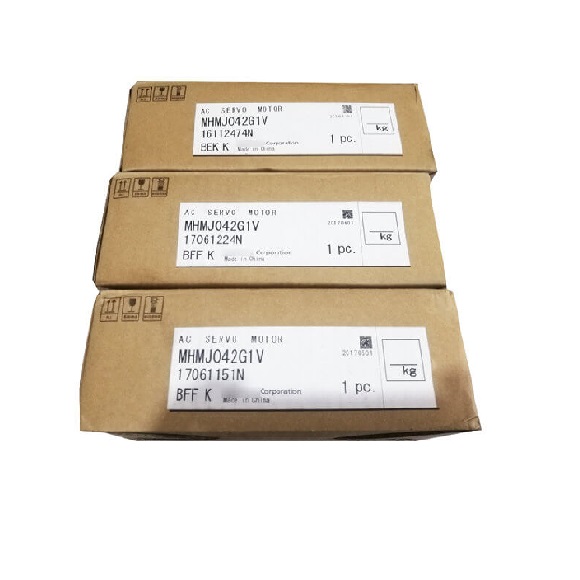

Panasonic Servo Motor MINAS A5 400W Break MHMJ042G1V/MHMD042G1V

Panasonic Servo Motor MINAS A5 400W Break MHMJ042G1V/MHMD042G1V
We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
100% Original and new,In stock by Panasonic Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Panasonic Servo Motor MINAS A5 400W Break	AC100 V
Panasonic Servo Motor MINAS A5 IP65	MHMD041G1□	MHMD041S1□
Panasonic Servo Motor MINAS A5 IP67	–	–
A5Ⅱ, A5 series	MCD◇T3120
A5ⅡE, A5E series	MCD◇T3120E	–
Frame symbol	C-frame
Power supply capacity (kVA)	0.9
Rated output (W)	400
Rated torque (N•m)	1.3
Momentary Max. peak torque (N•m)	3.8
Rated current (A(rms))	4.6
Max. current (A(o-p))	19.5
Regenerative brake frequency (times/min) Note)1 Without option	No limit Note)2
DV0P4282	No limit Note)2
Rated rotational speed (r/min)	3000
Max. rotational speed (r/min)	5000
Moment of inertia of rotor (×10−4 kg•m2) Without brake	0.67
With brake	0.70
Recommended moment of inertia ratio of the load and the rotor Note)3	30 times or less
Rotary encoder specifications Note)5	20-bit Incremental	17-bit Absolute
Resolution per single turn	1048576	131072

Panasonic Servo Motor MINAS A5 400W Break	AC200 V
Motor model ＊1 IP65	MHMD042G1□	MHMD042S1□
IP67	–	–
A5Ⅱ, A5 series	MBD◇T2510
A5ⅡE, A5E series	MBD◇T2510E	–
Frame symbol	B-frame
Power supply capacity (kVA)	0.9
Rated output (W)	400
Rated torque (N•m)	1.3
Momentary Max. peak torque (N•m)	3.8
Rated current (A(rms))	2.6
Max. current (A(o-p))	11.0
Regenerative brake frequency (times/min) Note)1 Without option	No limit Note)2
DV0P4283	No limit Note)2
Rated rotational speed (r/min)	3000
Max. rotational speed (r/min)	5000
Moment of inertia of rotor (×10−4 kg•m2) Without brake	0.67
With brake	0.70
Recommended moment of inertia ratio of the load and the rotor Note)3	30 times or less
Rotary encoder specifications Note)5	20-bit Incremental	17-bit Absolute
Resolution per single turn	1048576	131072
