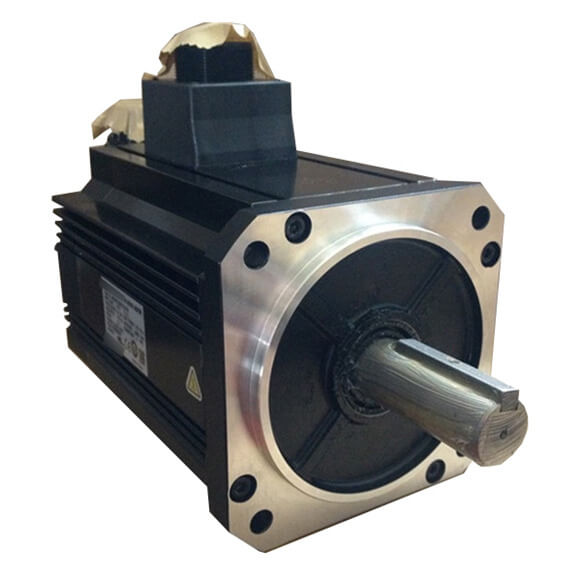

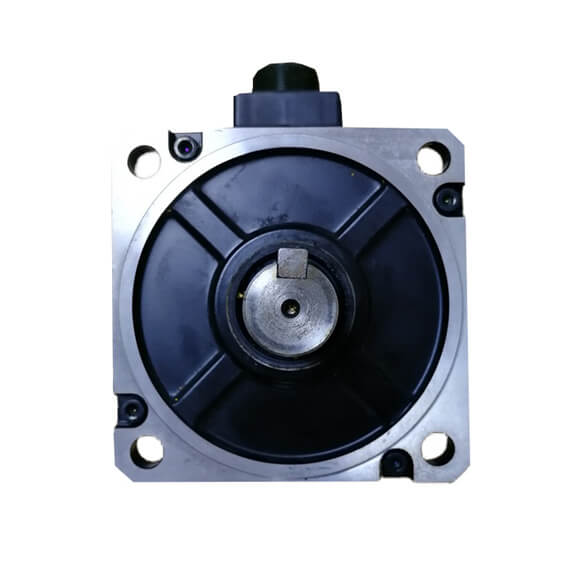

Panasonic Servo Motor MINAS A5 5KW MDME | AC200 V | |
Motor model *1 IP65 | MDME502GC□ | MDME502SC□ |
IP67 | MDME502G1□ | MDME502S1□ |
A5Ⅱ, A5 series | MFD◇TB3A2 | |
A5ⅡE, A5E series | MFD◇TB3A2E | – |
Frame symbol | F-frame | |
Power supply capacity (kVA) | 7.5 | |
Rated output (W) | 5000 | |
Rated torque (N•m) | 23.9 | |
Momentary Max. peak torque (N•m) | 71.6 | |
Rated current (A(rms)) | 25.9 | |
Max. current (A(o-p)) | 110 | |
Regenerative brake frequency (times/min) Note)1
Without option |
120 | |
DV0P4285×2 | No limit Note)2 | |
Rated rotational speed (r/min) | 2000 | |
Max. rotational speed (r/min) | 3000 | |
Moment of inertia
of rotor (×10−4 kg•m2) Without brake |
48.0 | |
With brake | 53.3 | |
Recommended moment of inertia ratio of the load and the rotor Note)3 | 10 times or less | |
Rotary encoder specifications Note)5 | 20-bit Incremental | 17-bit Absolute |
Resolution per single turn | 1048576 | 131072 |
