Panasonic Servo Motor MINAS A6 | AC200 V |

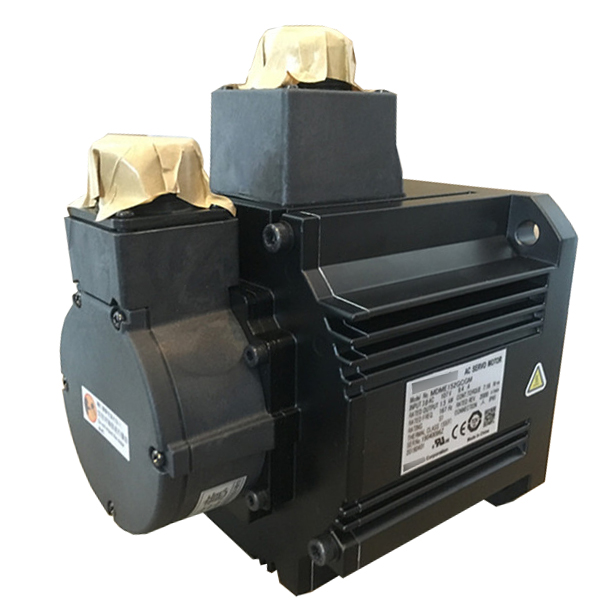

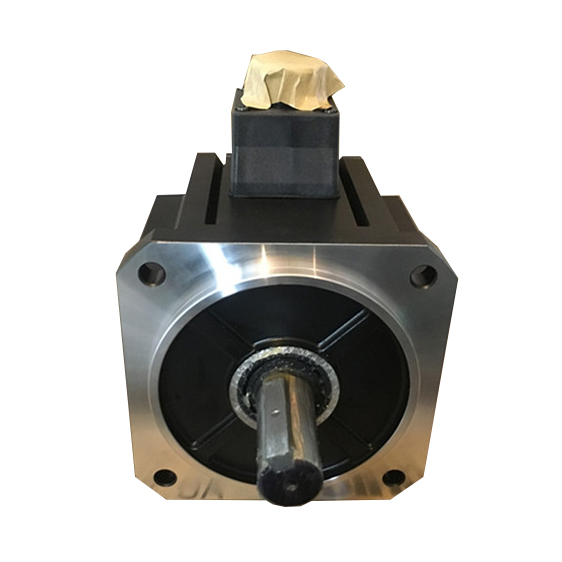

Panasonic Servo Motor MINAS A6 | MSMF152L1□□ |
Multifunction type | MDDLT55SF |
RS485 communication type *2 | MDDLN55SG |
Basic type *2 | MDDLN55SE |
Frame symbol | D-frame |
Power supply capacity
(kVA) |
2.9 |
Rated output(W) | 1500 |
Rated torque(N•m) | 4.77 |
Continuous stall torque(N•m) | 5.72 |
Momentary Max. peak torque(N•m) | 14.3 |
Rated current(A(rms)) | 8.2 |
Max. current(A(o-p)) | 35 |
Regenerative brake frequency (times/min) Note)Without option | No limit Note)2 |
DV0P4284 | No limit Note)2 |
Rated rotational speed(r/min) | 3000 |
Max. rotational speed(r/min) | 5000 |
Moment of inertia of rotor (×10−4 kg•m2)
Without brake |
3.10 |
With brake | 3.45 |
Recommended moment of inertia ratio of the load and the rotor | 15 times or less |
Rotary encoder specifications *3 | 23-bit Absolute |
Resolution per single turn | 8388608 |
