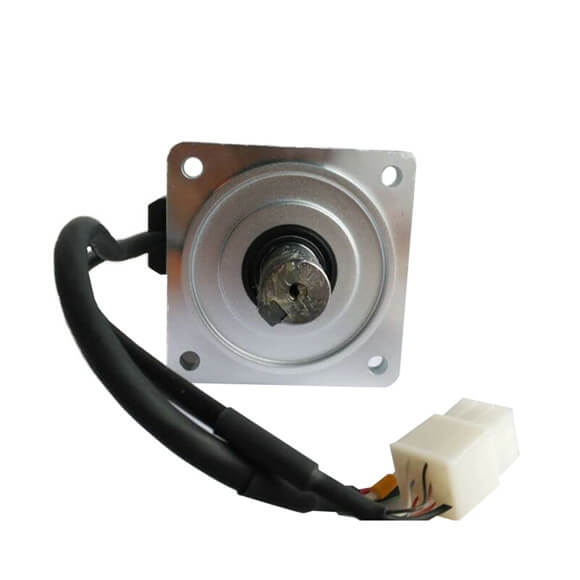

Panasonic Servo Motor MINAS A6 1000w Break MSMF092L1V2M

Panasonic Servo Motor MINAS A6 1000w Break MSMF092L1V2M
We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
100% Original and new,In stock by Panasonic Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Panasonic Servo Motor MINAS A6 850w MGMF092L1G6M	AC200 V
Panasonic Servo Motor MINAS A6 IP67	MGMF092L1□□
Multifunction type	MDDLT45SF
RS485 communication type *2	MDDLN45SG
Basic type *2	MDDLN45SE
Frame symbol	D-frame
Power supply capacity(kVA)	2.0
Rated output(W)	850
Rated torque(N•m)	5.41
Continuous stall torque(N•m)	5.41
Momentary Max. peak torque(N•m)	14.3
Rated current(A(rms))	5.9
Max. current(A(o-p))	22
Regenerative brake frequency (times/min) Note)1Without option	No limit Note)2
DV0P4284	No limit Note)2
Rated rotational speed(r/min)	1500
Max. rotational speed(r/min)	3000
Moment of inertia of rotor (×10−4 kg•m2) Without brake	6.18
With brake	7.40
Recommended moment of inertia ratio of the load and the rotor	10 times or less
Rotary encoder specifications *3	23-bit Absolute
Resolution per single turn	8388608
