Panasonic Servo Motor MINAS A6 100W | AC200 V |

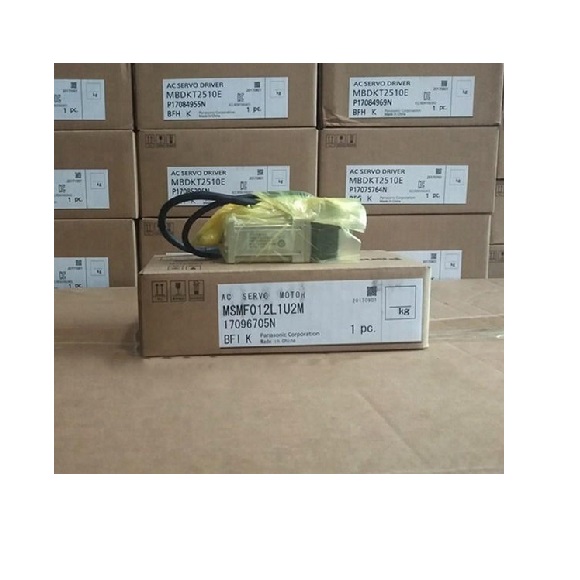

Panasonic Servo Motor MINAS A6 100W | MSMF012L1□□ |
Multifunction type | MADLT05SF |
RS485 communication type *2 | MADLN05SG |
Basic type *2 | MADLN05SE |
Frame symbol | A-frame |
Power supply capacity(kVA) | 0.5 |
Rated output(W) | 100 |
Rated torque(N•m) | 0.32 |
Continuous stall torque(N•m) | 0.32 |
Momentary Max. peak torque(N•m) | 0.95 |
Rated current(A(rms)) | 1.1 |
Max. current(A(o-p)) | 4.7 |
Regenerative brake frequency (times/min) Note)1
Without option |
No limit Note)2 |
DV0P4281 | No limit Note)2 |
Rated rotational speed
(r/min) |
3000 |
Max. rotational speed
(r/min) |
6000 |
Moment of inertiaof rotor (×10−4 kg•m2)Without brake | 0.048 |
With brake | 0.051 |
Recommended moment of inertia ratio of the load and the rotor Note)3 | 30 times or less |
Rotary encoder specifications *3 | 23-bit Absolute |
Resolution per single turn | 8388608 |
