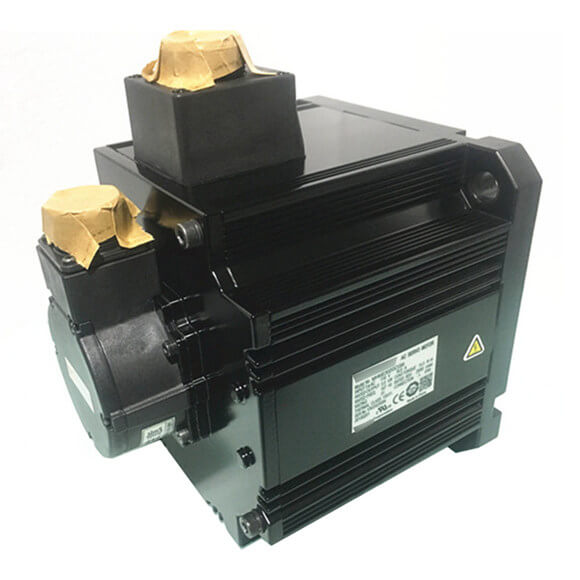

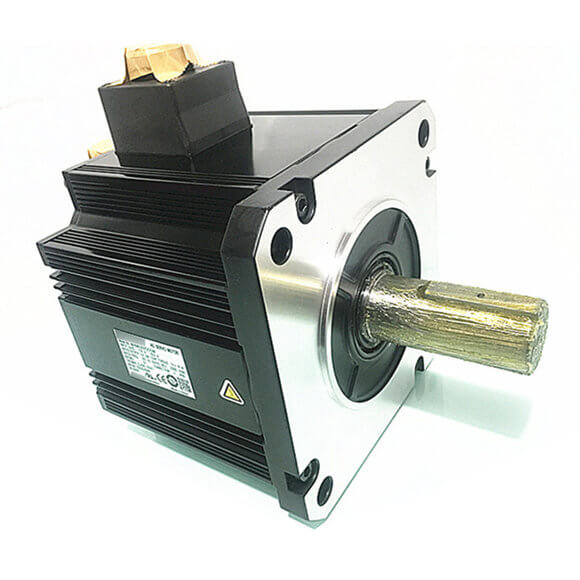

Panasonic Servo Motor MINAS A6 3KW Break MHMF302L1H6M

Series#: Panasonic Servomotor

Product Details

  • Panasonic Servo Motor MINAS A6 3KW Break MHMF302L1H6M
  • We are First Class Panasonic servomotors dealer and Panasonic servomotors distributor in China.
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
  • 100% Original and new,In stock by Panasonic Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Panasonic Servo Motor MINAS A6 3KW Break MHMF AC200 V
Panasonic Servo Motor MINAS A6

IP67

MHMF302L1□□
Panasonic Servo Motor MINAS A6

Multifunction type

MFDLTA3SF
Panasonic Servo Motor MINAS A6

RS485 communication type *2

MFDLNA3SG
Panasonic Servo Motor MINAS A6

Basic type *2

MFDLNA3SE
Panasonic Servo Motor MINAS A6

Frame symbol

F-frame
Power supply capacity(kVA) 5.2
Rated output(W) 3000
Rated torque(N•m) 14.3
Continuous stall torque(N•m) 17.2
Momentary Max. peak torque(N•m) 43.0
Rated current(A(rms)) 17.0
Max. current(A(o-p)) 72
Regenerative brake frequency (times/min) Note) Without option No limit Note)2
DV0P4285×2 No limit Note)2
Rated rotational speed(r/min) 2000
Max. rotational speed(r/min) 3000
Moment of inertia of rotor (×10−4 kg•m2)

Without brake

85.3
With brake 90.7
Recommended moment of inertia ratio of the load and the rotor 5 times or less
Rotary encoder specifications *3 23-bit Absolute
 Resolution per single turn 8388608
