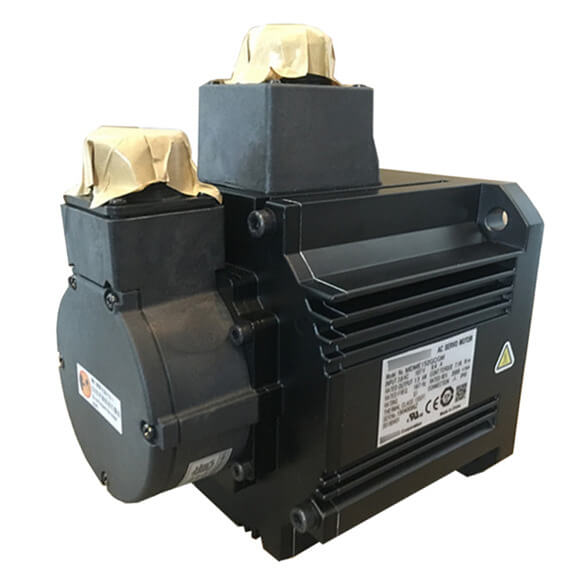

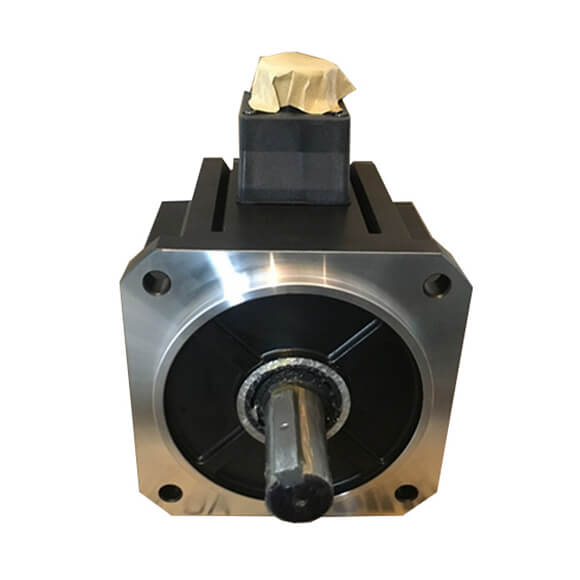

Panasonic Servo Motor MINAS A6 3KW MSMF | AC200 V |
Panasonic Servo Motor MINAS A6 IP67 | MSMF302L1□□ |
Multifunction type | MFDLTA3SF |
RS485 communication type *2 | MFDLNA3SG |
Basic type *2 | MFDLNA3SE |
Frame symbol | F-frame |
Power supply capacity(kVA) | 5.2 |
Rated output(W) | 3000 |
Rated torque(N•m) | 9.55 |
Continuous stall torque(N•m) | 11.0 |
Momentary Max. peak torque(N•m) | 28.6 |
Rated current(A(rms)) | 18.1 |
Max. current(A(o-p)) | 77 |
Regenerative brake frequency (times/min) Note)1Without option | No limit Note)2 |
DV0P4285×2 | No limit Note)2 |
Rated rotational speed (r/min) | 3000 |
Max. rotational speed (r/min) | 5000 |
Moment of inertia of rotor (×10−4 kg•m2)Without brake | 7.04 |
With brake | 7.38 |
Recommended moment of inertia ratio of the load and the rotor | 15 times or less |
Rotary encoder specifications *3 | 23-bit Absolute |
Resolution per single turn | 8388608 |
