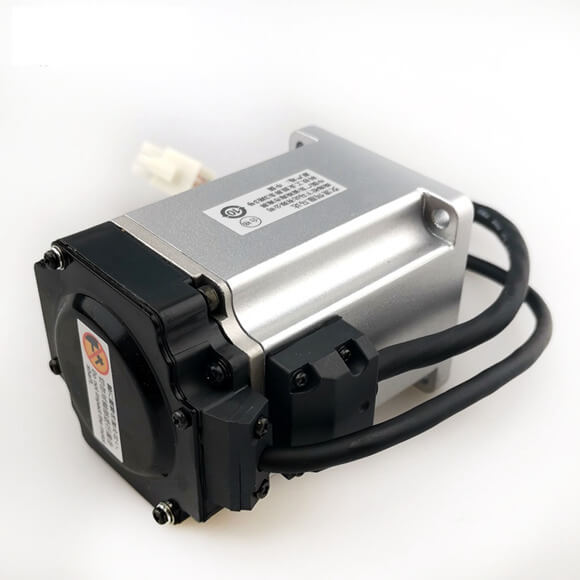

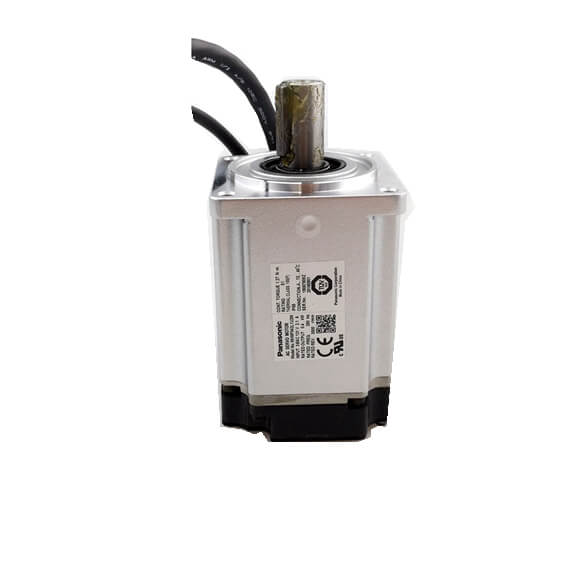

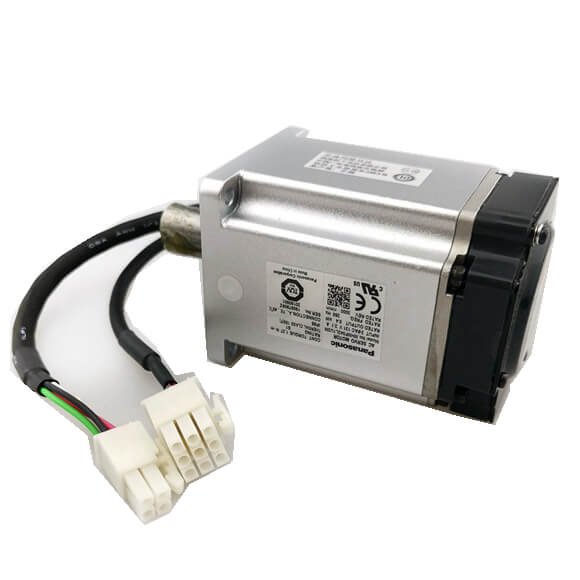

Panasonic Servo Motor MINAS A6 | MSMF042L1□□ |
Multifunction type | MBDLT25SF |
RS485 communication type *2 | MBDLN25SG |
Basic type *2 | MBDLN25SE |
Frame symbol | B-frame |
Power supply capacity(kVA) | 0.9 |
Rated output(W) | 400 |
Rated torque(N•m) | 1.27 |
Continuous stall torque(N•m) | 1.27 |
Momentary Max. peak torque(N•m) | 3.82 |
Rated current(A(rms)) | 2.4 |
Max. current(A(o-p)) | 10.2 |
Regenerative brake frequency (times/min) Note)Without option | No limit Note)2 |
DV0P4283 | No limit Note)2 |
Rated rotational speed(r/min) | 3000 |
Max. rotational speed(r/min) | 6000 |
Moment of inertia of rotor (×10−4 kg•m2)Without brake | 0.27 |
With brake | 0.30 |
Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
Rotary encoder specifications *3 | 23-bit Absolute |
Resolution per single turn | 8388608 |
