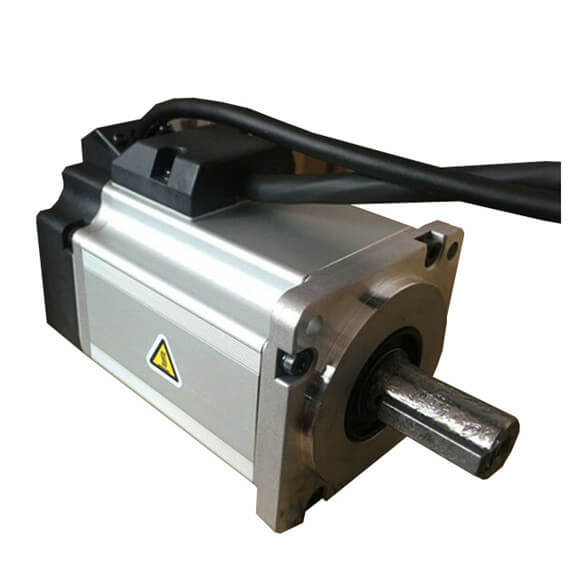

Panasonic Servo Motor MINAS A6 | AC100 V |
Panasonic Servo Motor MINAS A6 | MSMF041L1□□ |
Multifunction type | MCDLT31SF |
RS485 communication type *2 | MCDLN31SG |
basic type *2 | MCDLN31SE |
Frame symbol | C-frame |
Power supply capacity(kVA) | 0.9 |
Rated output(W) | 400 |
Rated torque(N•m) | 1.27 |
Continuous stall torque(N•m) | 1.27 |
Momentary Max. peak torque(N•m) | 3.82 |
Rated current(A(rms)) | 4.6 |
Max. current(A(o-p)) | 19.5 |
Regenerative brake frequency (times/min) Note)1
Without option |
No limit Note)2 |
DV0P4282 | No limit Note)2 |
Rated rotational speed (r/min) | 3000 |
Max. rotational speed (r/min) | 6000 |
Moment of inertia of rotor (×10−4 kg•m2)Without brake | 0.27 |
With brake | 0.30 |
Recommended moment of inertia ratio of the load and the rotorNote)3 | 30 times or less |
Rotary encoder specifications *3 | 23-bit Absolute |
Resolution per single turn | 8388608 |
