Panasonic Servo Motor MINAS A6 | AC100 V |

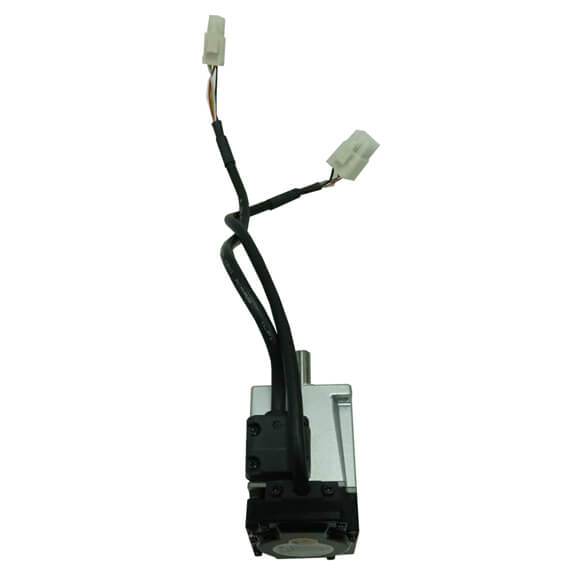

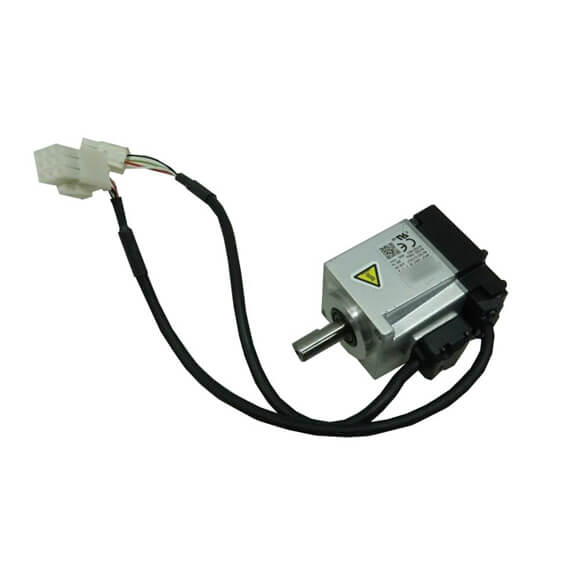

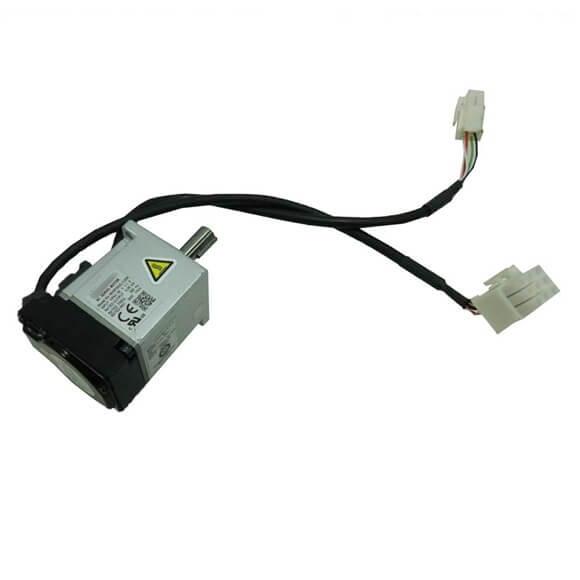

Panasonic Servo Motor MINAS A6 | MSMF5AZL1□□ |
Mufti-function type | MADLT01SF |
RS485 communication type *2 | MADLN01SG |
Basic type *2 | MADLN01SE |
Frame symbol | A-frame |
Rated rotational speed(r/min) | 3000 |
Max. rotational speed(r/min) | 6000 |
Panasonic Servo Motor MINAS A6 | AC200 V |
Motor model *1 | MSMF5AZL1□□ |
Multifunction type | MADLT05SF |
RS485 communication type *2 | MADLN05SG |
Basic type *2 | MADLN05SE |
Frame symbol | A-frame |
Power supply capacity(kVA) | 0.5 |
Rated output(W) | 50 |
Rated torque(N•m) | 0.16 |
Continuous stall torque(N•m) | 0.16 |
Momentary Max. peak torque(N•m) | 0.48 |
Rated current(A(rms)) | 1.1 |
Max. current(A(o-p)) | 4.7 |
Rotary encoder specifications *3 | 23-bit Absolute |
Resolution per single turn | 8388608 |
