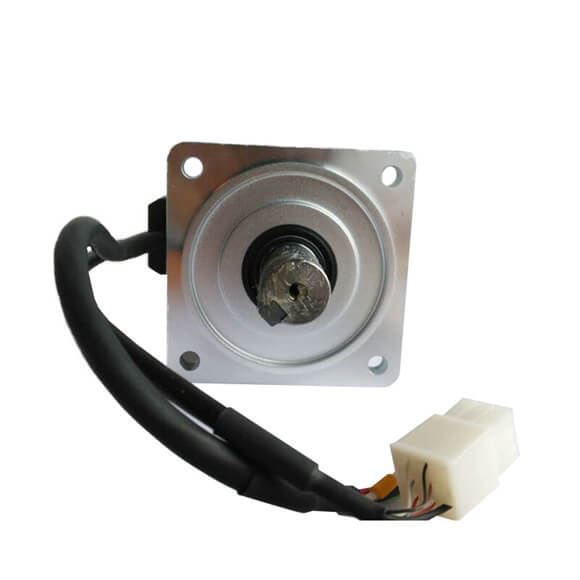

Panasonic Servo Motor MINAS A6 850w MGMF092L1G6M | AC200 V |
Panasonic Servo Motor MINAS A6
IP67 |
MGMF092L1□□ |
Multifunction type | MDDLT45SF |
RS485 communication type *2 | MDDLN45SG |
Basic type *2 | MDDLN45SE |
Frame symbol | D-frame |
Power supply capacity(kVA) | 2.0 |
Rated output(W) | 850 |
Rated torque(N•m) | 5.41 |
Continuous stall torque(N•m) | 5.41 |
Momentary Max. peak torque(N•m) | 14.3 |
Rated current(A(rms)) | 5.9 |
Max. current(A(o-p)) | 22 |
Regenerative brake frequency (times/min) Note)1Without option | No limit Note)2 |
DV0P4284 | No limit Note)2 |
Rated rotational speed(r/min) | 1500 |
Max. rotational speed(r/min) | 3000 |
Moment of inertia of rotor (×10−4 kg•m2)
Without brake |
6.18 |
With brake | 7.40 |
Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
Rotary encoder specifications *3 | 23-bit Absolute |
Resolution per single turn | 8388608 |
