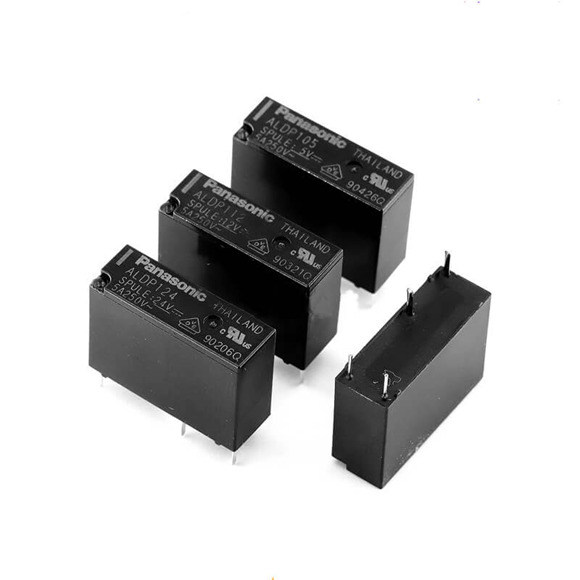

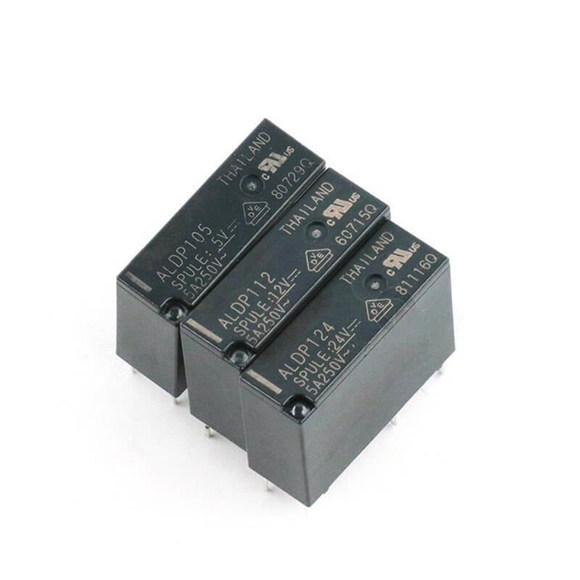

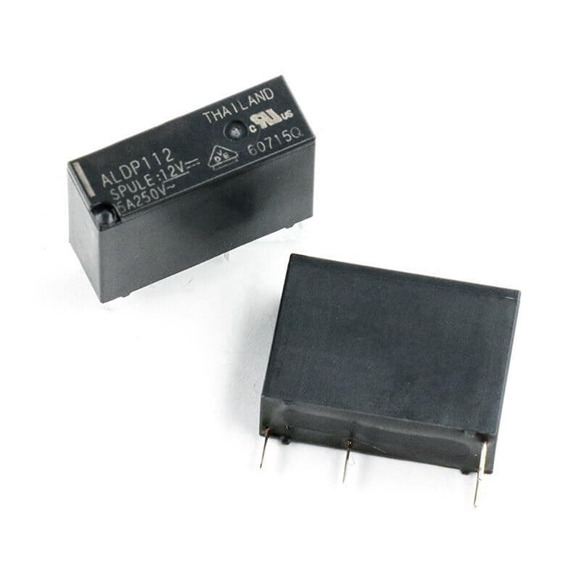

Item | Specifications | |
Arrangement | 1 Form A | |
1 Form A | 5V DC | ALDP105W |
1 Form A | 6V DC | ALDP106W |
1 Form A | 9V DC | ALDP109W |
1 Form A | 12V DC | ALDP112W |
1 Form A | 18V DC | ALDP118W |
1 Form A | 24V DC | ALDP124W |
1 Form A | 5V DC | ALDP105W |
Contact resistance (initial) | Max. 100 mΩ (By voltage drop 6 V DC 1A) | |
Contact material | AgNi type | |
Contact rating (resistive) | 5A 277V AC, 3A 30V DC | |
Max. switching power (resistive) | 1,385VA, 90W | |
Max. switching voltage | 277V AC, 30V DC | |
Max. switching current | 5A (AC), 3A (DC) | |
Min. switching load (reference value)*1 | 100mA 5V DC | |
Insulation resistance (initial) | Min. 1,000MΩ (at 500V DC) Measured portion is the same as the case of dielectric voltage. | |
Between open contacts | 750 Vrms for 1 min. (detection current: 10 mA) | |
Between contact and coil | 4,000 Vrms for 1 min. (detection current: 10 mA) | |
Between contact and coil | 10,000 V | |
Operate time (initial) | Max. 10 ms (at rated voltage, at 20°C 68°F, excluding contact bounce time) | |
Release time (initial) | Max. 10 ms (at rated voltage, at 20°C 68°F, excluding contact bounce time, with diode) | |
Functional | 300 m/s2 (half-wave pulse of sine wave: 11 ms; detection time: 10µs) | |
Destructive | 1,000 m/s2 (half-wave pulse of sine wave: 6 ms) | |
Functional | 10 to 55 Hz at double amplitude of 1.5 mm (Detection time: 10µs) | |
Destructive | 10 to 55 Hz at double amplitude of 1.5 mm | |
Mechanical | Min. 5×106 (at 180 times/min.) | |
Conditions for operation, transport and storage*3 | Ambient temperature: –40 to +85°C –40 to +185°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature) |
|
Unit weight | Approx. 4 g .14 oz |
