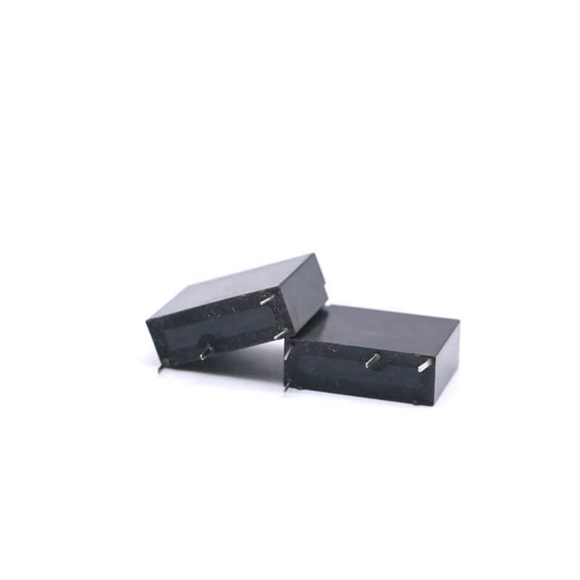

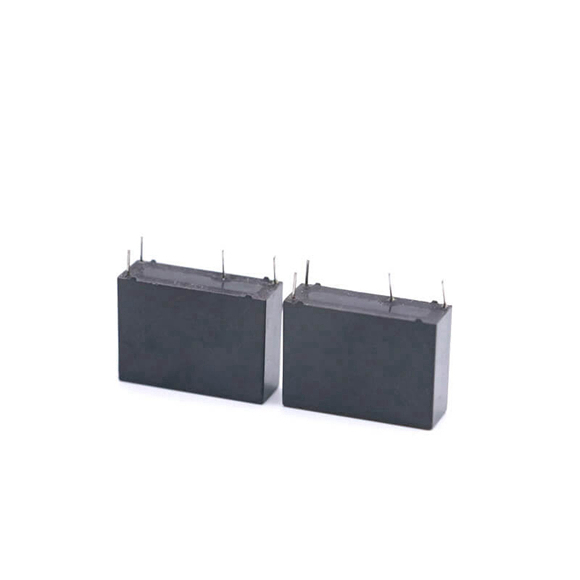

Max. operating speed | 20 cpm (at rated load) |
Initial insulation resistance*1 | Min. 1,000 MW (at 500 V DC) |
Between open contacts | 750 Vrms for 1 min. |
Between contact and coil | 4,000 Vrms for 1 min. |
Initial surge voltage between contact and coil*3 | Min. 10,000 V |
Operate time*4 (at nominal voltage) | Max. 10ms (at 20°C 68°F) |
Release time (with diode)*4 (at nominal voltage) | Max. 10ms (at 20°C 68°F) |
Temperature rise (at 70°C) |
Max. 45°C with nominal coil voltage and at 3 A contact carrying current
(resistance method) |
Shock resistance
Functional*5 |
Min. 300 m/s2{approx. 30 G} |
Shock resistance
Destructive*6 |
Min. 1,000 m/s2{approx. 100 G} |
Vibration resistance Functional*7 | 10 to 55Hz
at double amplitude of 1.5mm |
Vibration resistance Destructive | 10 to 55Hz
at double amplitude of 1.5mm |
Ambient temp. | –40°C to +70°C
–40°F to +158°F |
Humidity | 5 to 85% R.H. |
Unit weight | Approx. 4 g .141 oz |
