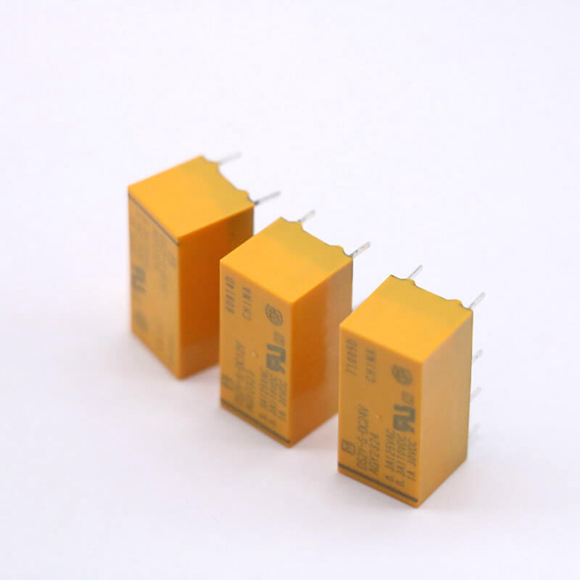

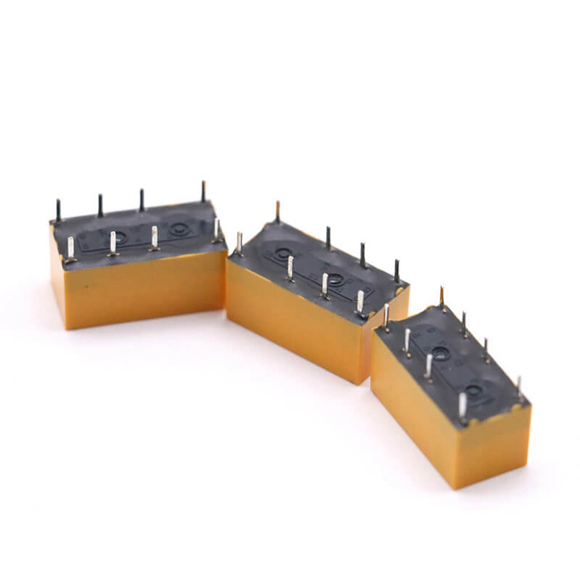

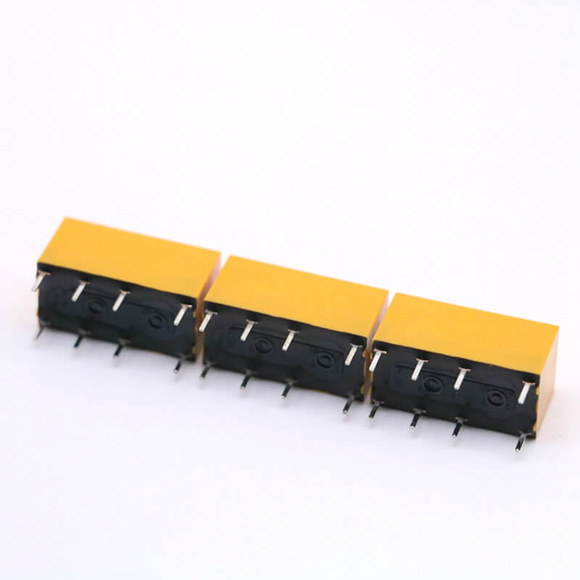

Panasonic Signal Relays DS2Y-S-DC3V DS2Y-S-DC5V DS2Y-S-DC6V DS2Y-S-DC9V

Panasonic Signal Relays DS2Y-S-DC3V DS2Y-S-DC5V DS2Y-S-DC6V DS2Y-S-DC9V

Series#: Panasonic Signal Relays

Product Details

Panasonic Signal Relays DS2Y-S-DC3V DS2Y-S-DC5V DS2Y-S-DC6V DS2Y-S-DC9V
We are First Class Panasonic Relays dealer and Panasonic Relays distributor in China.
We can Supply All kinds of Panasonic Relays,such as Panasonic Control Panel Relays,Panasonic PhotoMOS Couplers,Panasonic Power Relays,Panasonic Signal Relays and Ect.
100% Original and new,In stock by Panasonic Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Item	Specifications
2 Form C	3V DC	DS2Y-S-DC3V
2 Form C	5V DC	DS2Y-S-DC5V
2 Form C	6V DC	DS2Y-S-DC6V
2 Form C	9V DC	DS2Y-S-DC9V
2 Form C	12V DC	DS2Y-S-DC12V
2 Form C	24V DC	DS2Y-S-DC24V
2 Form C	48V DC	DS2Y-S-DC48V
Arrangement	2 Form C
Initial contact resistance, max.	Max. 50 mΩ (By voltage drop 6 V DC 1A)
Contact material	Ag+Au clad
Max. switching power	60 W, 62.5 VA (resistive load)
Max. switching voltage	220 V DC, 250 V AC
Max. switching current	2 A
Max. carrying current	3 A
Minimum operating power	Approx. 98 mW (147 mW: 48 V)
Nominal operating power	Approx. 200 mW (300 mW: 48 V)
Insulation resistance (Initial)	Min. 100MΩ (at 500V DC) Measurement at same location as “Initial breakdown voltage” section.
Between open contacts	750 Vrms for 1min. (Detection current: 10mA.)
Between contact sets	1,000 Vrms for 1min. (Detection current: 10mA.)
Between contact and coil	1,000 Vrms for 1min. (Detection current: 10mA.)
FCC surge breakdown voltage between contacts and coil	1,500 V
Temperature rise (at 20°C 68°F)	Max. 65°C with nominal coil voltage across coil and at nominal switching capacity
Operate time [Set time] (at 20°C 68°F)	Approx. 4 ms [approx. 3 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.)
Release time [Reset time] (at 20°C 68°F)	Approx. 3 ms [approx. 3 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.) (without diode)
Functional	Min. 490 m/s2 (Half-wave pulse of sine wave: 11 ms; detection time: 10µs.)
Destructive	Min. 980 m/s2 (Half-wave pulse of sine wave: 6 ms.)
Vibration resistance Functional	10 to 55 Hz at double amplitude of 3.3 mm (Detection time: 10µs.)
Vibration resistance Destructive	10 to 55 Hz at double amplitude of 5 mm
Mechanical	Min. 108
Electrical	Min. 5×105 (1 A 30 V DC), Min. 105 (2 A 30 V DC)
Conditions for operation, transport and storage*	Ambient temperature: –40°C to +70°C –40°F to +158°F Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
Max. operating speed (at rated load)	60 cpm
Unit weight	Approx. 4g .14oz
