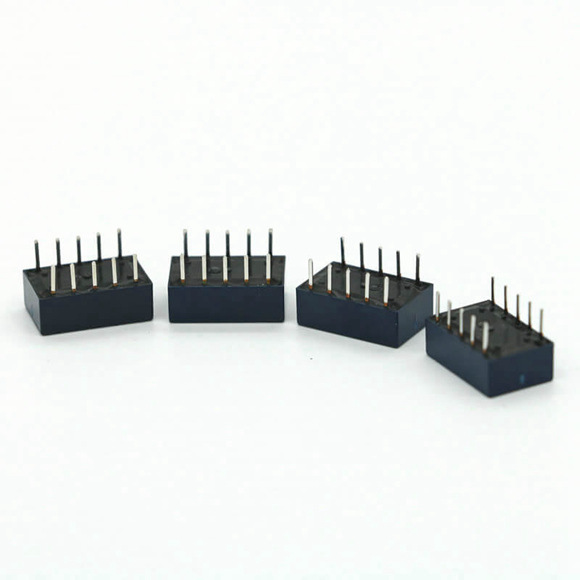

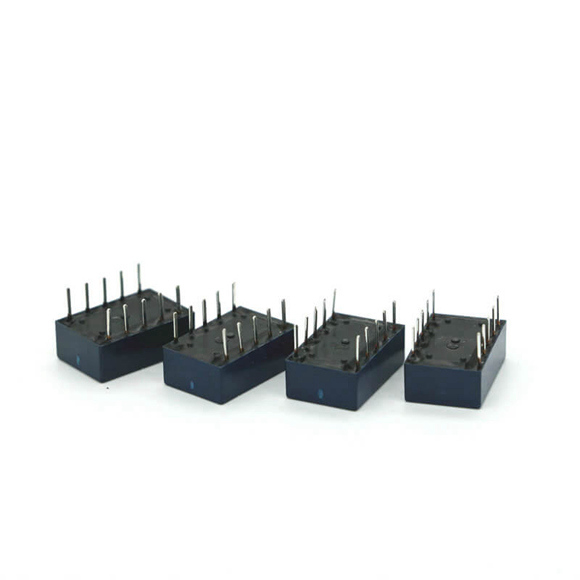

Panasonic Signal TQ Relays TQ2-3V TQ2-5V TQ2-6V TQ2-9V TQ2-12V TQ2-24V TQ2-48V

Series#: Panasonic Signal Relays

Product Details

Qty:

Specification

Item Specifications
Arrangement 2 Form C, 2 Form D (M.B.B.)
2 Form C Nominal coil voltage Single side stable 1 coil latching 2 coil latching
2 Form C 3 V DC TQ2-3V TQ2-L-3V TQ2-L2-3V
2 Form C 4.5 V DC TQ2-4.5V TQ2-L-4.5V TQ2-L2-4.5V
2 Form C 5 V DC TQ2-5V TQ2-L-5V TQ2-L2-5V
2 Form C 6 V DC TQ2-6V TQ2-L-6V TQ2-L2-6V
2 Form C 9 V DC TQ2-9V TQ2-L-9V TQ2-L2-9V
2 Form C 12 V DC TQ2-12V TQ2-L-12V TQ2-L2-12V
2 Form C 24 V DC TQ2-24V TQ2-L-24V TQ2-L2-24V
2 Form C 48 V DC TQ2-48V
Initial contact resistance, max. Max. 50 mΩ (By voltage drop of 6 V DC 1 A)
Contact material Ag+Au clad
Nominal switching capacity 1 A 30 V DC, 0.5 A 125 V AC (resistive load)
Max. switching power 30 W (DC), 62.5 VA (AC) (resistive load)
Max. switching voltage 110 V DC , 125V AC
Max. switching current 1 A
Min. switching capacity (Reference value)*1 10μA 10 mV DC


Single side stable

Standard (B.B.M) type : 140 mW (3 to 12 V DC), 200 mW (24 V DC), 300 mW(48 V DC)
M.B.B. type : 200 mW
1 coil latching 100 mW (3 to 12 V DC), 150mW (24 V DC)
2 coil latching 200 mW (3 to 12 V DC), 300mW (24 V DC)
Insulation resistance (Initial) Min. 1,000 MΩ (at 500 V DC) Measurement at same location as “Initial breakdown voltage” section.


Between open contacts

Standard (B.B.M) type : 750 Vrms for 1 min. (Detection current: 10 mA)
M.B.B. type : 300 Vrms for 1 min. (Detection current: 10 mA)
Between contact and coil 1,000 Vrms for 1 min. (Detection current: 10 mA)
Between contact sets 1,000 Vrms for 1 min. (Detection current: 10 mA)
Surge breakdown voltage (Initial)

Between open contacts

1,500 V (10×160 µs) (FCC Part 68)
Temperature rise (at 20 °C 68 °F) Max. 50°C (By resistive method, nominal coil voltage applied to the coil; contact carrying current: 1A.)
Operate time [Set time] (at 20°C 68°F) Max. 3 ms [Max. 3 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.)
Release time [Reset time] (at 20°C 68°F) Max. 3 ms [Max. 3 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.)(without diode)


Functional

Min. 490 m/s2 (Half-wave pulse of sine wave: 11 ms; detection time: 10μs.)
Destructive Min. 980 m/s2 (Half-wave pulse of sine wave: 6 ms.)
Vibration resistance

Functional

10 to 55 Hz at double amplitude 3 mm (Detection time: 10 μs.)
Destructive 10 to 55 Hz at double amplitude of 5 mm
Mechanical (at 180 cpm) Standard (B.B.M) type : Min. 108
M.B.B. type : Min. 107
Electrical (at 20 cpm) Standard (B.B.M) type : Min. 2 ×105 (1 A 30 V DC resistive) , Min. 105 (0.5 A 125 V AC resistive)
M.B.B. type : Min. 105 (1 A 30 V DC resistive)
Conditions for operation, transport and storage *2 Standard (B.B.M) type :
Ambient temperature: µs40°C to +70°C µs40°F to +158°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
M.B.B. type :
Ambient temperature: µs40°C to +50°C µs40°F to +122°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
Max. operating speed (at rated load) 20 cpm
Unit weight Approx. 1.5 g .053 oz
