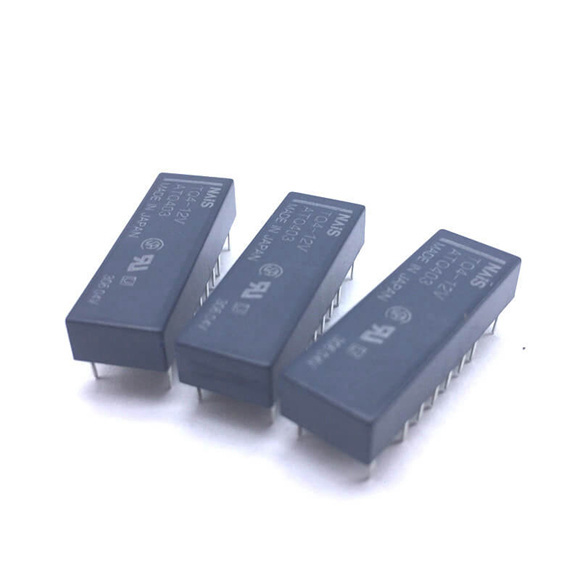

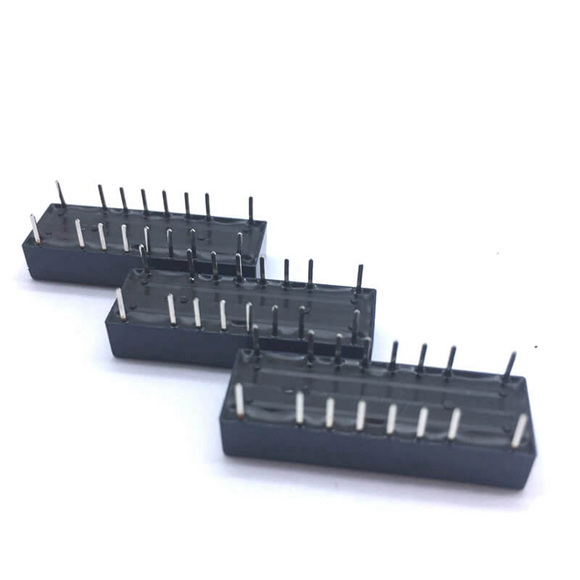

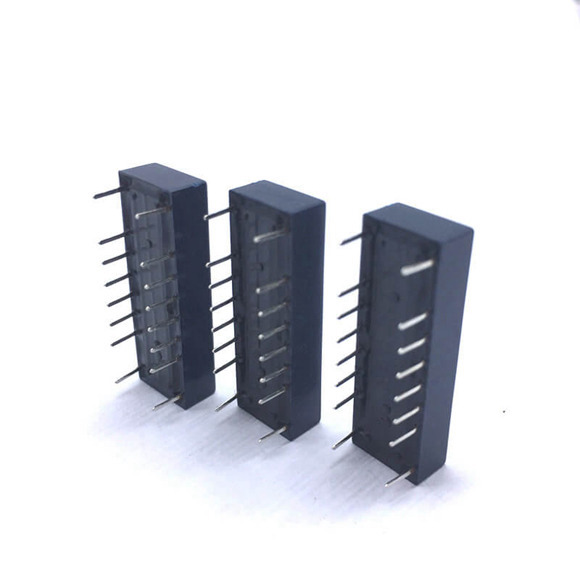

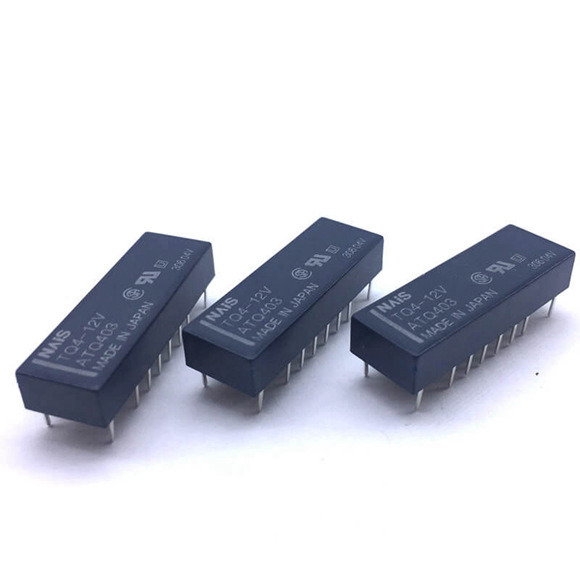

Panasonic Signal TQ Relays TQ4-12V TQ4-12VDC ATQ403

Series#: Panasonic Signal Relays

Product Details

Qty:

Specification

Item Specifications
Product Number TQ4-12V
Part Number ATQ403
Protective construction Sealed Type
Terminal shape Standard PC board terminal
Contact type Standard type
Contact mechanism B.B.M
Contact arrangement 4 Form C
Contact material Ag+Au clad
Operating function Single side stable type
Nominal operating power 280mW
Nominal coil voltage 12V DC
Pick-up voltage (at20°C 68°F) 75%V or less of nominal voltage (Initial)
Drop-out voltage (at20°C 68°F) 10%V or more of nominal voltage (Initial)
Nominal switching capacity (resistive load) 1 A 30 V DC, 0.5 A 125 V AC
Max.switching current 1 A
Min. switching capacity 10µA 10mV DC
Breakdown voltage (Initial) : Between open contacts 750 Vrms for 1min. (Detection current: 10mA.)
Breakdown voltage (Initial) : Between contact and coil 1,000 Vrms for 1min. (Detection current: 10mA.)
Breakdown voltage (Initial) : Between contact sets 1,000 Vrms for 1min. (Detection current: 10mA.)
Expected life : Mechanical Min. 108 (at 180 cpm)
Expected life : Electrical Min. 2 x 105 (1 A 30 V DC resistive) (at 20 cpm)
Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)
Conditions Ambient temperature: –40 to +70°C –40 to +158°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
Height (mm) 5
Unit weight Approx. 3 g .106 oz
Packing style Tube packing
Standard packing: Inner packing (pcs.) 25
Standard packing: Case (pcs.) 500
