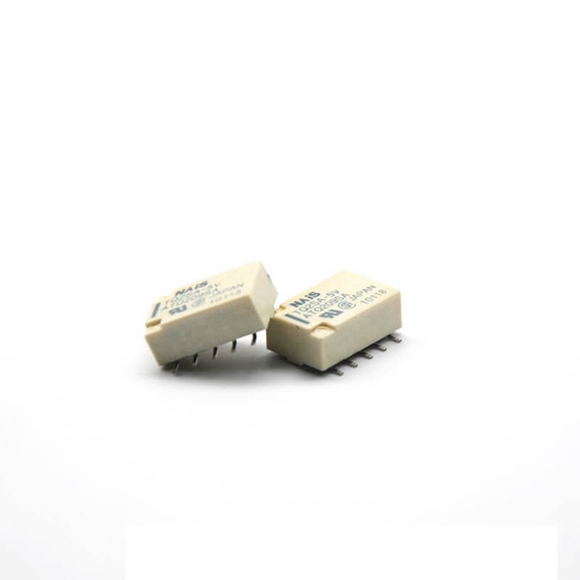

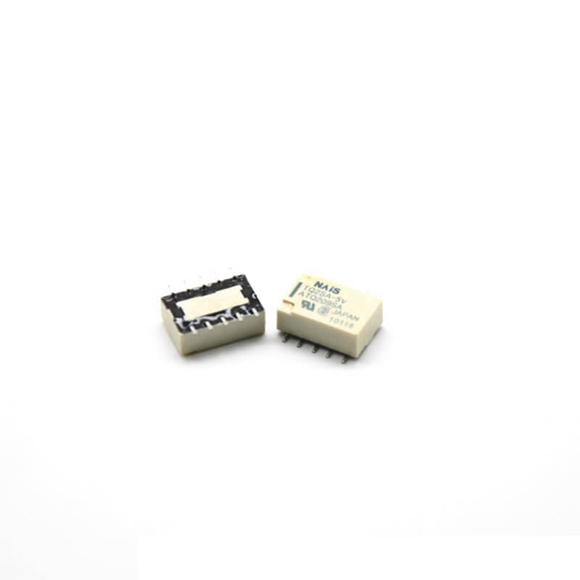

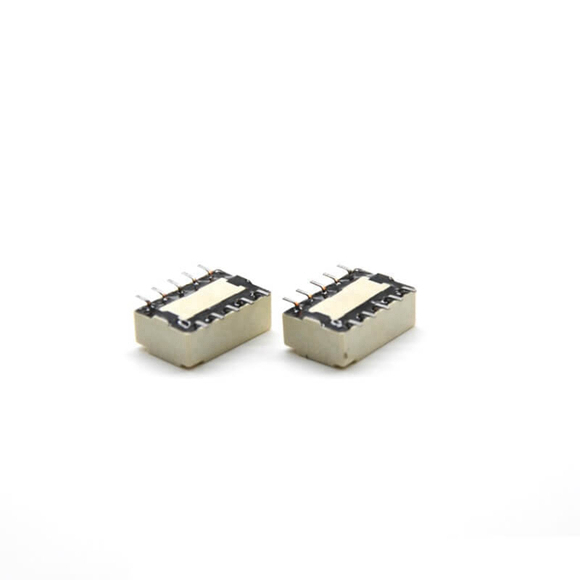

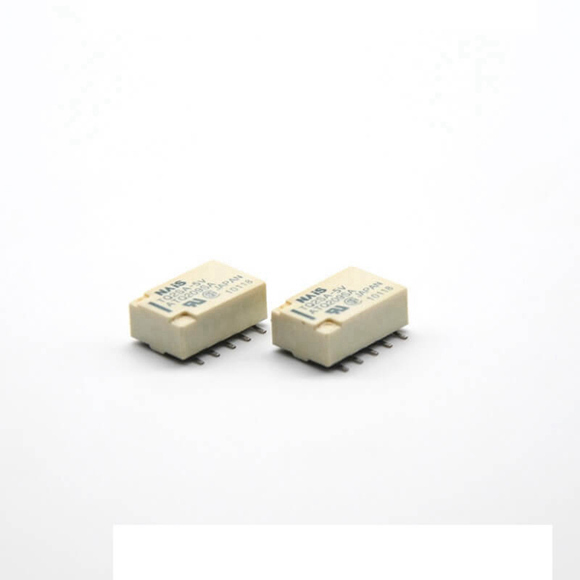

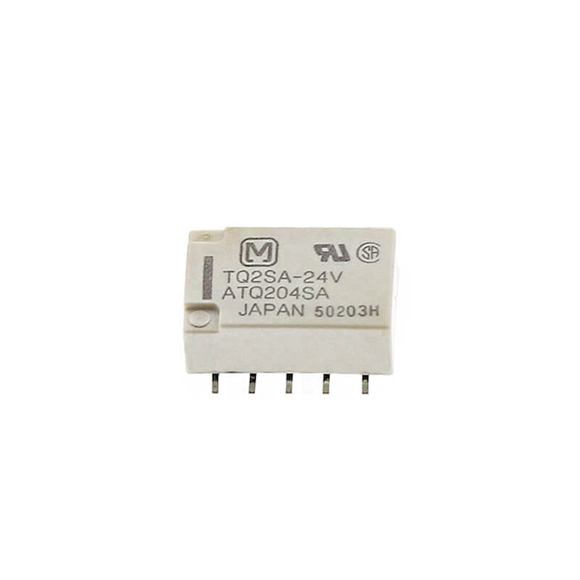

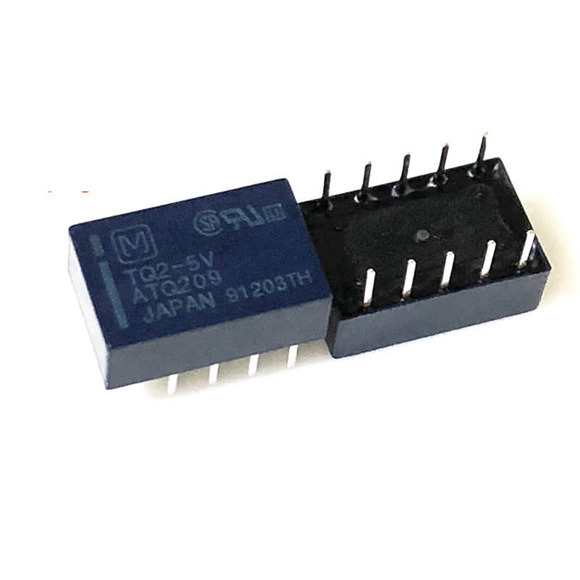

Panasonic Signal TQ2SA Relays TQ2SA-1.5V/-3V/-4.5V/-5V/-6V TQ2SA-9V/-12V/-24V/-48V

Series#: Panasonic Signal Relays

Product Details

Qty:

Specification

Item Specifications
Arrangement 2 Form C
Contact arrangement Nominal coil voltage Single side stable 1 coil latching 2 coil latching
2 Form C 1.5 V DC TQ2SA-1.5V TQ2S□-L-1.5V TQ2S□-L2-1.5V
2 Form C 3 V DC TQ2SA-3V TQ2S□-L-3V TQ2S□-L2-3V
2 Form C 4.5 V DC TQ2SA-4.5V TQ2S□-L-4.5V TQ2S□-L2-4.5V
2 Form C 5 V DC TQ2SA-5V TQ2S□-L-5V TQ2S□-L2-5V
2 Form C 6 V DC TQ2SA-6V TQ2S□-L-6V TQ2S□-L2-6V
2 Form C 9 V DC TQ2SA-9V TQ2S□-L-9V TQ2S□-L2-9V
2 Form C 12 V DC TQ2SA-12V TQ2S□-L-12V TQ2S□-L2-12V
2 Form C 24 V DC TQ2SA-24V TQ2S□-L-24V TQ2S□-L2-24V
2 Form C 48 V DC TQ2SA-48V
lnitial contact resistance, max. Max. 75 m▲ (By voltage drop 6 V DC 1A)
Contact material AgNi type+Au clad
Nominal switching capacity 2 A 30 V DC, 0.5 A 125 V AC (resistive load)
Max. switching power 60 W (DC), 62.5 VA (AC) (resistive load)
Max. switching voltage 220 V DC, 125 V AC
Max. switching current 2 A
Min. switching capacity (Reference value)*1 10μA 10mV DC
Single side stable 140 mW (1.5 to 12 V DC), 200 mW (24 V DC), 300 mW (48 V DC)
1 coil latching 70 mW (1.5 to 12 V DC), 100 mW (24 V DC)
2 coil latching 140 mW (1.5 to 12 V DC), 200 mW (24 V DC)
lnsulation resistance (lnitial) Min. 1,000M▲ (at 500V DC)

Measurement at same location as “lnitial breakdown voltage” section.

Between open contacts 1,000 Vrms for 1 min. (Detection current: 10 mA)
Between contact and coil 1,500 Vrms for 1 min. (Detection current: 10 mA)
Between contact sets 1,500 Vrms for 1 min. (Detection current: 10 mA)
Between open contacts 1,500 V (10×160μs) (FCC Part 68)
Between contacts and coil 2,500 V (2×10μs) (Telcordia)
Temperature rise (at 20°C 68°F) Max. 50°C

(By resistive method, nominal coil voltage applied to the coil; contact carrying current: 2A.)

Operate time [Set time] (at 20°C 68°F) Max. 4 ms [Max. 4 ms] (Nominal coil voltage applied to the coil, excluding contact bounce

time.)

Release time [Reset time] (at 20°C 68°F) Max. 4 ms [Max. 4 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.) (without diode)
Shock resistance Functional Min. 750 m/s2 (Half-wave pulse of sine wave: 6 ms; detection time: 10µs.)
Destructive Min. 1,000 m/s2 (Half-wave pulse of sine wave: 6 ms.)
Mechanical Min. 108 (at 180 cpm)
Electrical Min. 105 (2 A 30 V DC resistive), Min. 2×105 (1 A 30 V DC resistive),

Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)



Conditions for operation, transport and storage*2

Ambient temperature:

–40°C to +85°C –40°F to +185°F, Max. –40°C to +70°C (2A) Max. –40°F to +158°F (2A);

Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)

Max. operating speed (at rated load) 20 cpm
Weight Approx. 2 g .071 oz
