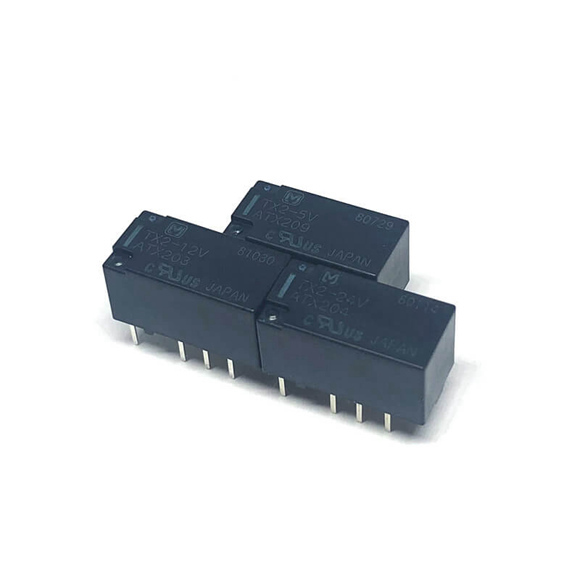

| Item | Specifications | ||
| Arrangement | 2 Form C | ||
| 2 Form C | Nominal coil voltage | Single side stable | 2 coil latching |
| 2 Form C | 3 V DC | TX2-3V | TX2-LT-3V |
| 2 Form C | 4.5 V DC | TX2-4.5V | TX2-LT-4.5V |
| 2 Form C | 5 V DC | TX2-5V | TX2-LT-5V |
| 2 Form C | 6 V DC | TX2-6V | TX2-LT-6V |
| 2 Form C | 9 V DC | TX2-9V | TX2-LT-9V |
| 2 Form C | 12 V DC | TX2-12V | TX2-LT-12V |
| 2 Form C | 24 V DC | TX2-24V | TX2-LT-24V |
| Initial contact resistance, max. | Max. 100 mΩ (By voltage drop 6 V DC 1 A) | ||
| Contact material | Standard contact: Ag+Au clad, AgPd contact (low level load): AgPd+Au clad (stationary), AgPd (movable) |
||
| Nominal switching capacity | Standard contact: 2 A 30 V DC, AgPd contact: 1 A 30 V DC (resistive load) |
||
| Max. switching power | Standard contact: 60 W (DC), AgPd contact: 30 W (DC) (resistive load) |
||
| Max. switching voltage | 220 V DC | ||
| Max. switching current | Standard contact: 2 A, AgPd contact: 1 A |
||
| Min. switching capacity (Reference value)*1 |
10 µA 10 mV DC | ||
| Single side stable | 140 mW (3 to 24 V DC) | ||
| 2 coil latching | 200 mW (3 to 24 V DC) | ||
| Insulation resistance (Initial) | Min. 1,000 MΩ (at 500 V DC) Measurement at same location as “Initial breakdown voltage” section. | ||
| Between open contacts | 1,000 Vrms for 1 min. (Detection current: 10 mA) | ||
| Between contact and coil | 2,000 Vrms for 1 min. (Detection current: 10 mA) | ||
| Between contact sets | 1,000 Vrms for 1 min. (Detection current: 10 mA) | ||
| Between open contacts | 1,500 V (10 × 160 µs) (FCC Part 68) | ||
| Between contacts and coil | 2,500 V (2 × 10 µs) (Telcordia) | ||
| Temperature rise (at 20°C 68°F) |
Max. 50°C (By resistive method, nominal coil voltage applied to the coil; contact carrying current: 2A.) | ||
| Operate time [Set time] (at 20°C 68°F) |
Max. 4 ms [Max. 4 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.) | ||
| Release time [Reset time] (at 20°C 68°F) |
Max. 4 ms [Max. 4 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.)(without diode) | ||
| Shock resistance Functional | Min. 750 m/s2 (Half-wave pulse of sine wave: 6 ms; detection time: 10 µs.) | ||
| Shock resistance Destructive | Min. 1,000 m/s2 (Half-wave pulse of sine wave: 6 ms.) | ||
| Functional | 10 to 55 Hz at double amplitude 3.3 mm (Detection time: 10 µs.) | ||
| Destructive | 10 to 55 Hz at double amplitude of 5 mm | ||
| Mechanical | Min. 108 (at 180 cpm) | ||
| Electrical (Standard contact) | Min. 105 (2 A 30 V DC resistive), 5 × 105 (1 A 30 V DC resistive) (at 20 cpm) |
||
| Conditions for operation, transport and storage*2 | Ambient temperature: –40°C to +85°C (Up to 24 V coil) –40°F to +185°F (Up to 24 V coil) [–40°C to +70°C (48 V coil) –40°F to +158°F (48 V coil)]; Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature) |
||
| Max. operating speed (at rated load) | 20 cpm | ||
| Unit weight | Approx. 2 g .071 oz | ||
