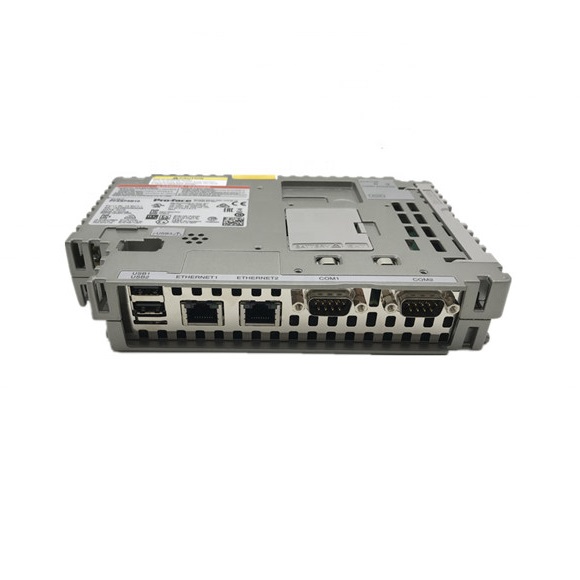

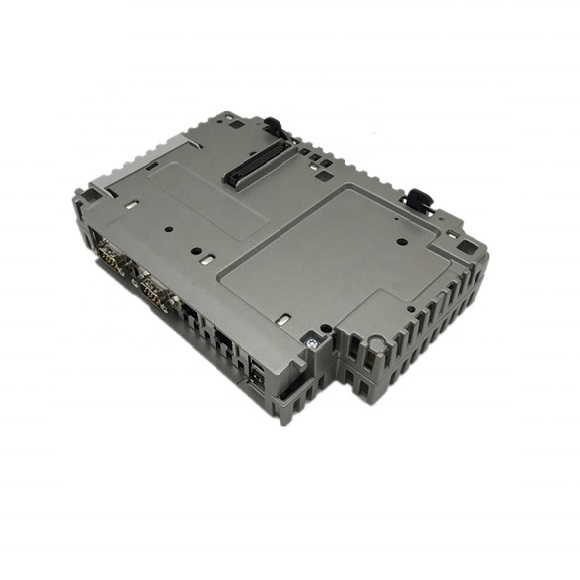

Proface Box Module High-speed processing (Power Box) PFXSP5B10

Series#: Proface HMI

Product Details

Qty:

Specification

Models SP-5B10 Power Box
Part Number PFXSP5B10 PFXSP5B10F0C
Operating System Real Time OS
Application Memory SD card
Backup Memory NVRAM 512 KB
Interfaces

Serial

COM1

RS-232C/422/485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits Parity: None, odd, or even, Data Transmission Speed: 2,400(1,200(( 115,200bps Connector: D-Sub 9 pin (plug)




COM2

RS-232C/422/485, Data Length: 7 or 8 bits Stop Bit: 1 or 2 bits Parity: None, odd, or even Data Transmission Speed: 2,400(1,200)…115,200 bps, 187,500bps (MPI) Connector: D-Sub 9 pin (plug)


Ethernet

Standard: IEEE802.3i/IEEE802.3u/IEEE802.3ab, 10BASE-T/100BASE-

TX/1000BASE-T Connector: Modular jack (RJ-45) x 2

USB Type A (V2.0) x2, Mini B (V2.0) x1


SD Card

SD Card Slot (System) x 1, SD Card Slot (Storage) x 1


Audio Output

Speaker Output: 300mW (Rated Load: 8Ω, Frequency : 1kHz) LINE Output: Rated load: 10kΩ or more Connector: 2-piece terminal block (AUX) x 1
