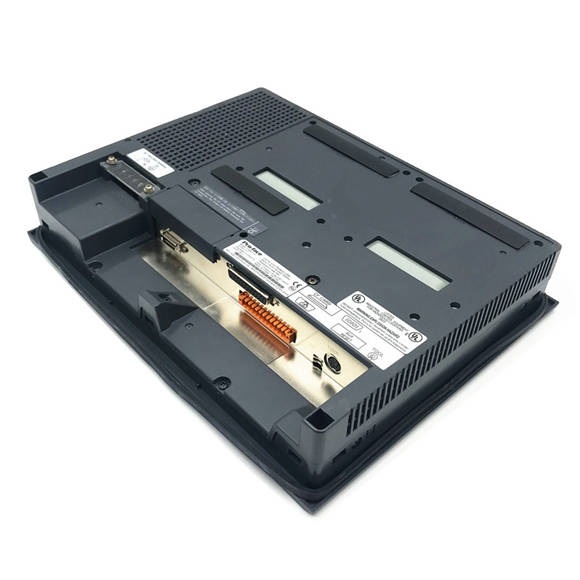

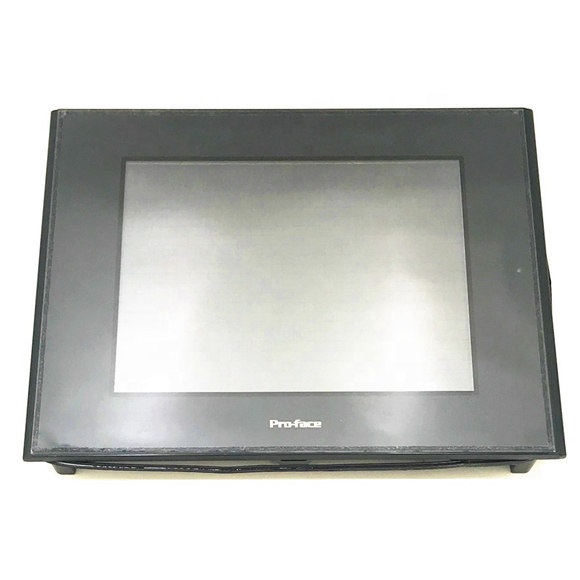

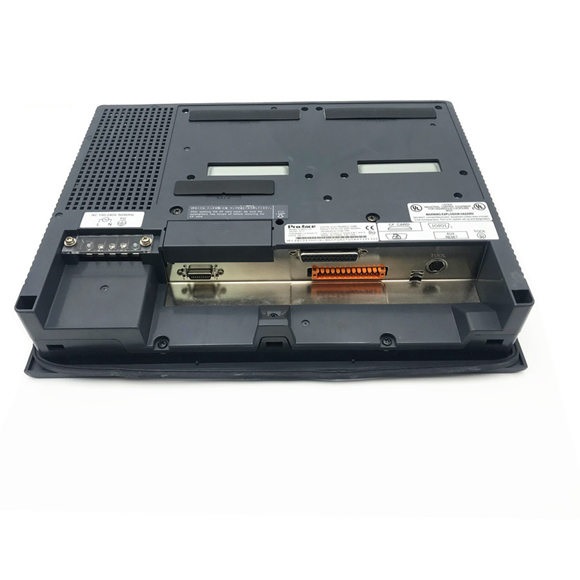

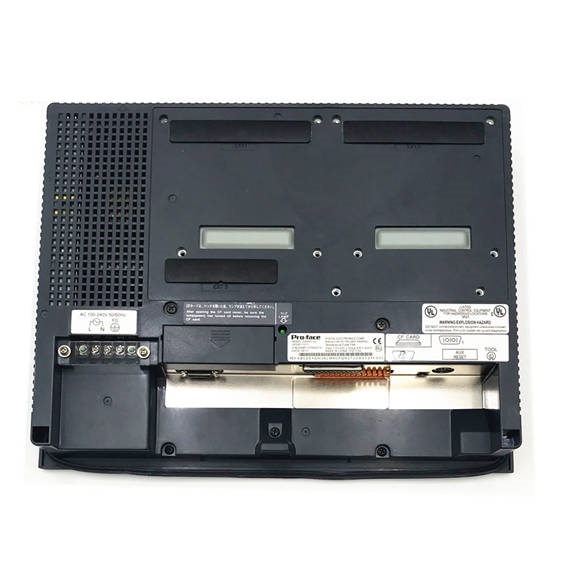

Proface operator panel HMI Touch Screen GP2500-TC11

Series#: Proface HMI

Product Details

Qty:

Specification

GP-2401 Series GP-2501 Series GP-2601 Series
Type TFT type color LCD GP-2501LMonochrome LCD TFT type color LCD
Type TFT type color LCD GP-2501SSTN type color LCD TFT type color LCD
Type TFT type color LCD GP-2501TTFT type color LCD TFT type color LCD
Colors 256 / No blink*1,64 colors / 3-speed blink (Color switching is done via software) GP-2501LBlack and White, 2 levels of gray/ 8 levels of gray*2(Color switching is donevia software) 256 / No blink*1,64 colors / 3-speed blink (Color switching is done via software)
Colors 256 / No blink*1,64 colors / 3-speed blink (Color switching is done via software) GP-2501S64 colors / 3-speed blink 256 / No blink*1,64 colors / 3-speed blink (Color switching is done via software)
Colors 256 / No blink*1,64 colors / 3-speed blink (Color switching is done via software) GP-2501T256 / No blink*1,64 colors / 3-speed blink (Color switching is done via software) 256 / No blink*1,64 colors / 3-speed blink (Color switching is done via software)
Resolution 640 x 480pixels 800 x 600pixels
Effective Display Area W149.8mm [5.90in.] xH112.3mm [4.42in.] W211.2mm [8.34in.] xH158.4mm [6.24in.] W246mm [9.69in.] xH184.5mm [7.26in.]
Language Fonts ASCII: (Code page 850) Alphanumeric (incl. Eur. characters) Chinese: (GB2312-80 codes) simplified Chinese fonts Japanese: ANK 158, Kanji : 6962 (JIS Standards 1 & 2) Korean: (KSC5601 – 1992 codes) Hangul fontsTaiwanese: (Big 5 codes) traditional Chinese fonts
8×8 dots 80 Char. x 60 rows 100 Char. x 75 rows
8×16 dots 80 Char. x 30 rows 100 Char. x 37 rows
16×16 dots 40 Char. x 30 rows 50 Char. x 37 rows
32×32 dots 20 Char. x 15 rows 25 Char. x 18 rows
Font Sizes Hight can be expanded 1 to 8 times.Width can be expanded 1/2*4, 1 to 8 times.
Character Sizes *3 8X8 dot font, 8X16 dot font, 16X16 dot font and 32X32 dot font
Backlight CCFL (Service life: 50,000 hrs. at 25oC and 24hr. operation)
Brightness Control 4 levels of adjustment available via touch panel.
