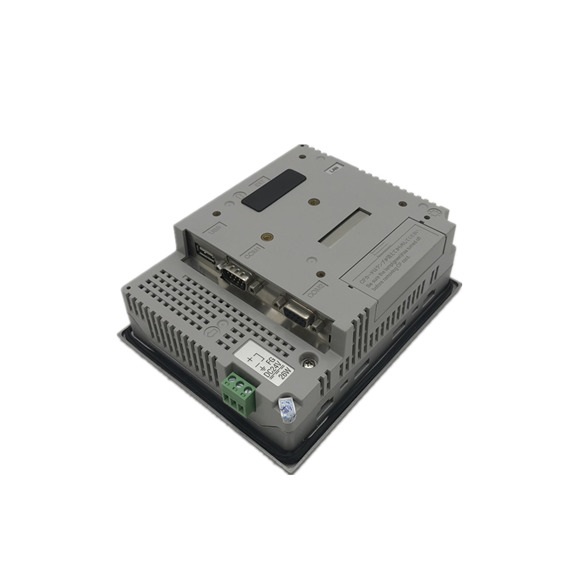

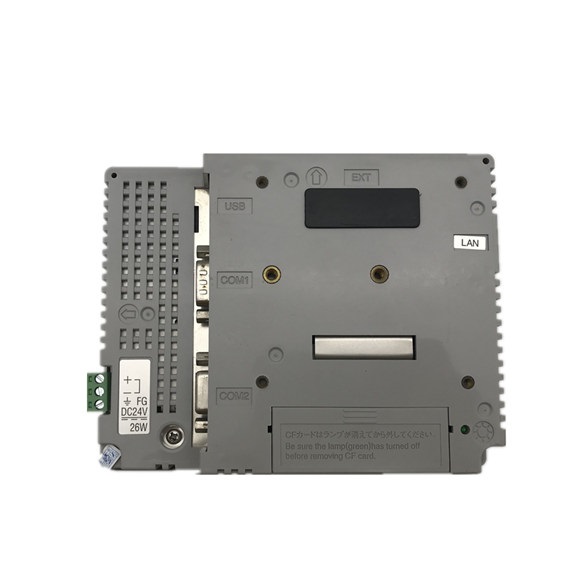

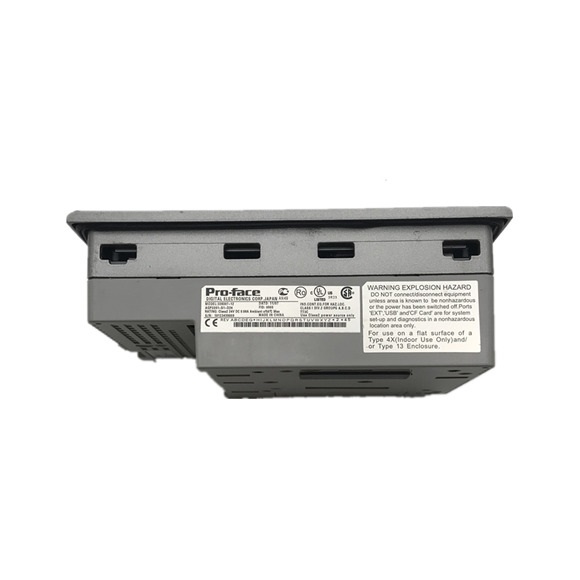

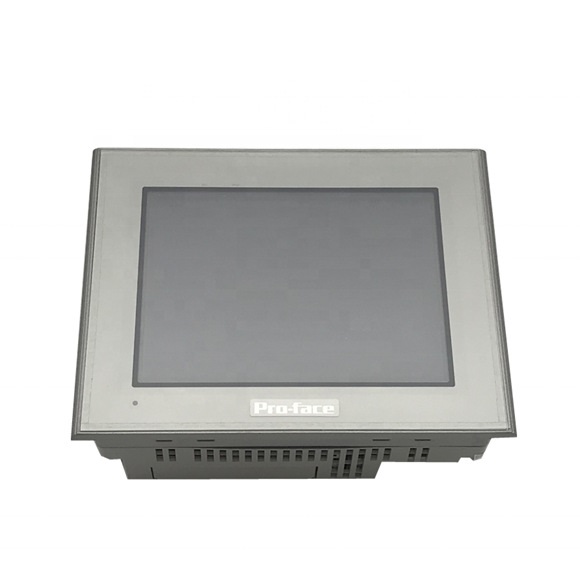

| Specifications | Proface Touch Screen HMI with Control | AAGP3300-T1-D24-D81K PFXGP3300TADDK | |||||||
| Model | AGP3300-L1-D24-CA1M | AGP3300-S1-D24-CA1M | AGP3300-T1-D24-CA1M | ||||||
| Display | Type | 5.7” Monochrome LCD | 5.7” STN Color LCD | 5.7” TFT Color LCD | |||||
| Colors | Black and White (16 shades) | 4096 colors | 65K colors | ||||||
| Backlight | CCFL (service life: 50,000 hrs. at 25°C and 24hr. operation) | ||||||||
| Resolution | 320 x 240 pixels (QVGA) | ||||||||
| Brightness Adjustment | 8 levels of adjustment available via touch panel | ||||||||
| Contrast Adjustment | 8 levels of adjustment available via touch pane | not applicable | |||||||
| Touch Panel | Resistive Film (Analog) 1024 x 1024 | ||||||||
| Memory | Application | 6MB Flash EPROM | |||||||
| Data Backup | 320KB SRAM (with lithium backup battery) | ||||||||
| Interfaces | Serial (COM1) Interface | RS-232C/422/485, 9 pin D-sub plug, Speed: 2400 to 115.2 kbps | |||||||
| Serial (COM2) Interface | RS-422/485, 9 pin D-sub socket, Speed: 2400 to 115.2 kbps & 187.5Kbps (MPI) | ||||||||
| Ethernet Interface | Ethernet IEEE802.3, 10BASE-T / 100BASE-TX, RJ45 | ||||||||
| USB Interface | 1 port USB 1.1 (Host), Type A | ||||||||
| CF Card Interface | 1x CompactFlash Card Slot (Type-II) | ||||||||
| Controller Interface | Built In CANopen (DS301) Master controller connects to up to 63 CANopen Slave devices.Speed: 50kbps – 1Mbps. Up to 512 each Discrete Input.Output, Up to 128 each Analog/Integer Input/ Output. Connect to Pro-face EXM I/O or 3rd party CANopen Slave Devices
Supported Message Types: PDO (252 RPDO, 252 TPDO), SDO, NMT, SYNC, EMT |
||||||||
