Range of product | Resi9 | |
product name | DB60 | |
product or component type | Circuit-breaker | |
device location in system | Main incomer | |
Pole | 1P + N | |
Maximum current rated | 60 A | |
Settings | 60 A 12 kVA | |
neutral position | Left | |
standards | NF C 62-411 | |
product certifications | ERDF CPT M&S SPE 11015B | |
quality labels | NF | |
electrical insulation class | Class II | |
network type | AC | |
trip unit technology | Thermal-magnetic | |
Safety function | Cover opening open |
network frequency | 50 Hz | |
[Ue] rated operational voltage | 250 V AC 50 Hz conforming to NF C 62-411 | |
residual current tripping technology | Voltage independent | |
breaking capacity | 2.4 kA | |
contact position indicator | Yes | |

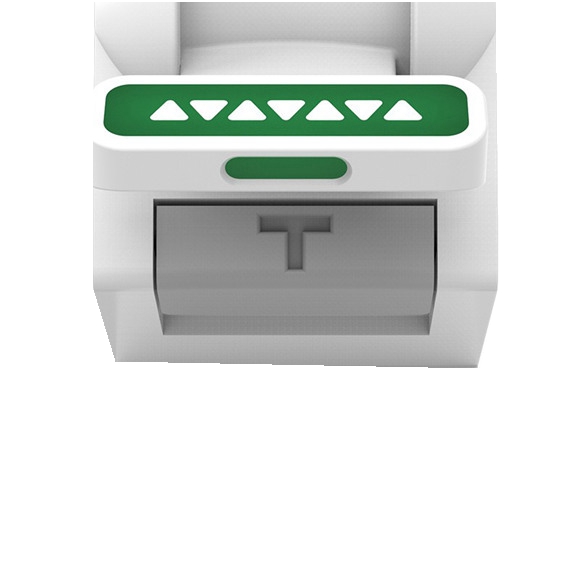

control type | Toggle | |
mounting support | Mounting plate | |
height | 209 mm | |
width | 71 mm | |
depth | 73 mm | |
mechanical durability | 5000 cycles | |
electrical durability | 1000 cycles conforming to NF C 62-411 | |
provision for padlocking | Padlockable with padlock Ø 6 mm | |
locking options description | Padlocking in OFF position | |

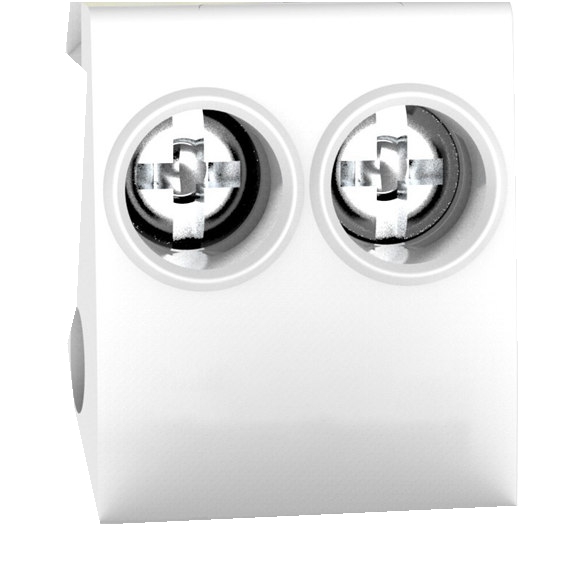

Type of connection | Orientational terminals 30°, cable cross section: 2.5…25 mm² | |
tightening torque | Power terminals: 4 N.m Setting: 1 N.m |
|
earth-leakage protection | Without |
