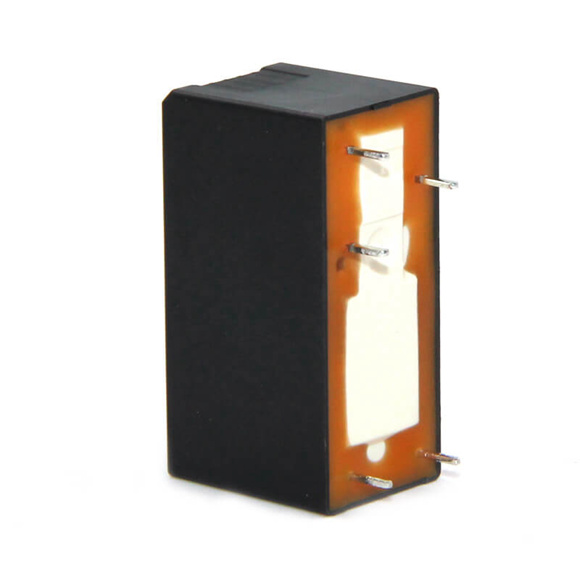

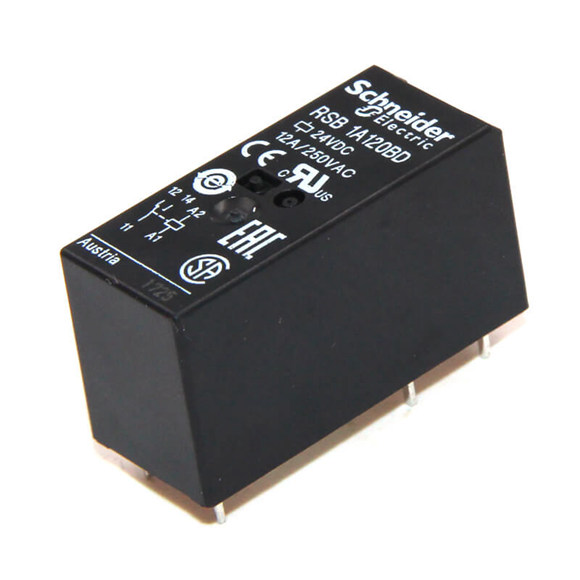

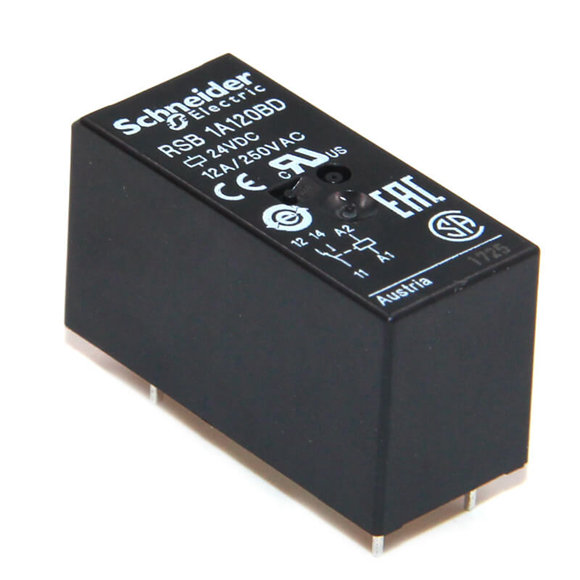

Schneider Interface relays RSB1A120BD

Schneider Interface relays RSB1A120BD
Interface plug-in relay, 12 A, 1 CO, 24 V DC
We are First Class Schneider Relays dealer and Schneider Relays distributor in China.
We can Supply All kinds Schneider Relays,such as Schneider Interface Relays,Schneider Miniature Relays,Schneider Power Relays,Schneider Timer Relays,Schneider Control Relays and Schneider Relays Socket.
100% Original and new,In stock by Schneider Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

range of product	Zelio Relay
series name	Interface relay
product or component type	Plug-in relay
device short name	RSB
contacts type and composition	1 C/O
contact operation	Standard
[Uc] control circuit voltage	24 V DC
[Ithe] conventional enclosed thermal current	12 A at -40…40 °C
status LED	Without
control type	Without push-button

shape of pin	Flat (PCB type)
average coil resistance	1440 Ohm network: AC at 20 °C +/- 10 %
[Ue] rated operational voltage	16.8…36 V DC
[Ui] rated insulation voltage	400 V conforming to EN/IEC 60947
[Uimp] rated impulse withstand voltage	3.6 kV IEC 61000-4-5
contacts material	Silver alloy (AgNi)
[Ie] rated operational current	12 A (AC-1/DC-1) NO conforming to IEC 6 A (AC-1/DC-1) NC conforming to IEC
minimum switching current	10 mA
maximum switching voltage	250 V DC conforming to IEC
minimum switching voltage	12 V
maximum switching capacity	3000 VA/336 W
resistive rated load	12 A at 250 V AC 12 A at 28 V DC
minimum switching capacity	120 mW at 10 mA, 12 V
operating rate	<= 600 cycles/hour under load <= 18000 cycles/hour no-load
mechanical durability	30000000 cycles
electrical durability	100000 cycles, 12 A at 250 V, AC-1 NO 100000 cycles, 6 A at 250 V, AC-1 NC
operating time	20 ms operating 20 ms reset
average coil consumption	0.45 W DC
drop-out voltage threshold	>= 0.1 Uc DC
safety reliability data	B10d = 100000
protection category	RT I
test levels	Level A group mounting
operating position	Any position
net weight	0.014 kg
sale per indivisible quantity	10
device presentation	Complete product

dielectric strength	1000 V AC between contacts 2500 V AC between poles 5000 V AC between coil and contact
standards	CSA C22.2 No 14 UL 508 EN/IEC 61810-1
product certifications	UL CSA EAC
ambient air temperature for storage	-40…85 °C
vibration resistance	+/- 1 mm (f= 10…55 Hz) conforming to EN/IEC 60068-2-6
IP degree of protection	IP40 conforming to EN/IEC 60529
shock resistance	10 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-27 5 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-27
ambient air temperature for operation	-40…85 °C (DC)
