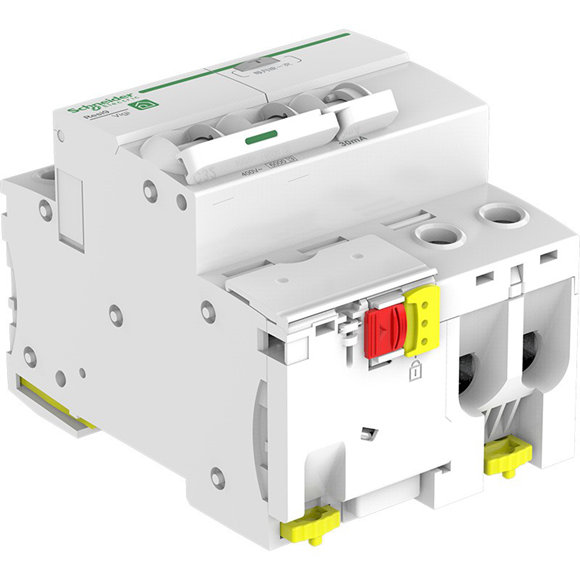

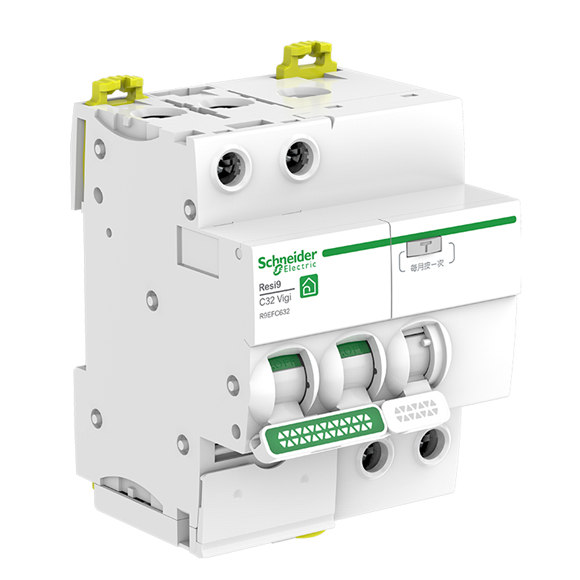

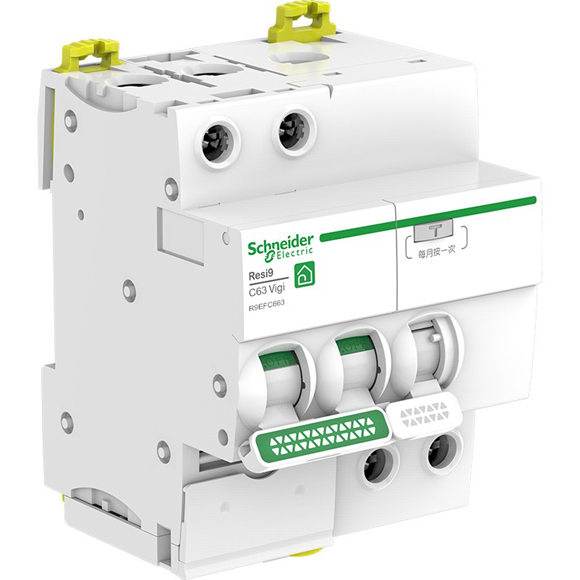

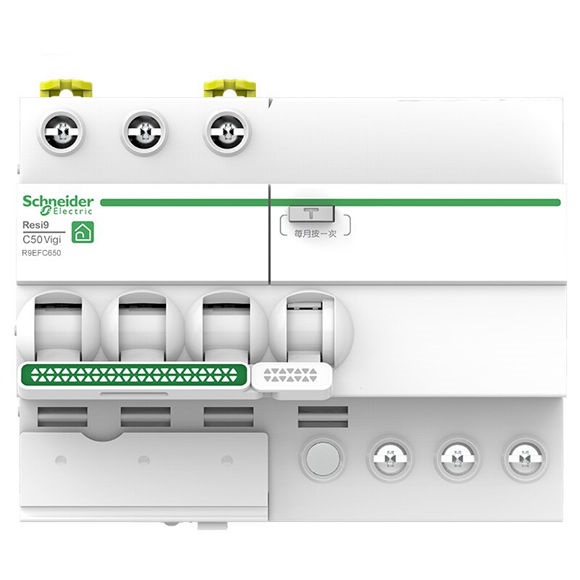

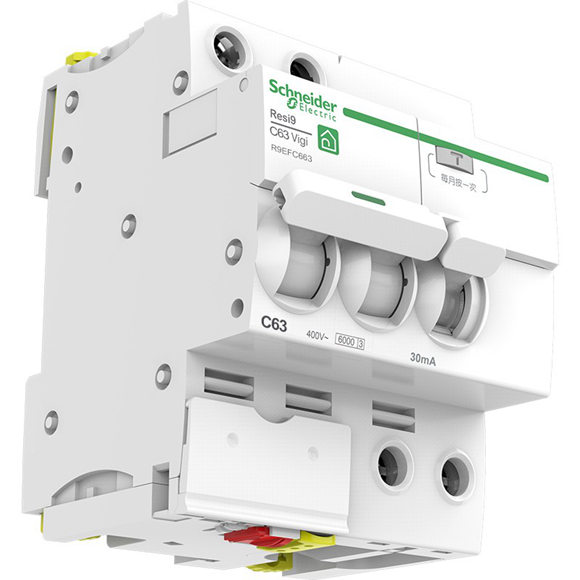

range | Resi9 | |
product name | Resi9 MCB | |
product or component type | Miniature circuit-breaker | |
device application | Distribution | |
poles description | 1P | |
number of protected poles | 1 | |
[In] rated current | 6 A at 30 °C | |
network type | AC | |
trip unit technology | Thermal-magnetic | |
curve code | C | |
breaking capacity | 3000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 | |
standards | EN/IEC 60898-1 | |
product certifications | CEBEC |
network frequency | 50/60 Hz | |
[Ue] rated operational voltage | 230 V AC 50/60 Hz | |
magnetic tripping limit | 5…10 x In | |
limitation class | 3 conforming to EN/IEC 60898-1 | |
[Ui] rated insulation voltage | 440 V AC 50/60 Hz | |
[Uimp] rated impulse withstand voltage | 4 kV | |
control type | Toggle | |
local signalling | ON/OFF indication | |
mounting mode | Clip-on | |
mounting support | DIN rail | |
comb busbar and distribution block compatibility | Bottom: biconnect | |
9 mm pitches | 2 | |
height | 85 mm | |
width | 18 mm | |
depth | 75 mm | |
net weight | 0.106 kg | |
colour | White | |
mechanical durability | 20000 cycles | |
electrical durability | 10000 cycles AC 50/60 Hz conforming to EN/IEC 60898-1 | |
locking options description | Padlock in OFF position | |
connections – terminals | Tunnel type terminals (top or bottom) – <= 35 mm² – rigid Tunnel type terminals (top or bottom) – <= 25 mm² – flexible with ferrule Tunnel type terminals (top or bottom) – <= 25 mm² – flexible |
|
wire stripping length | 14 mm for top or bottom connection | |
tightening torque | 2 N.m top or bottom | |
earth-leakage protection | Without |
