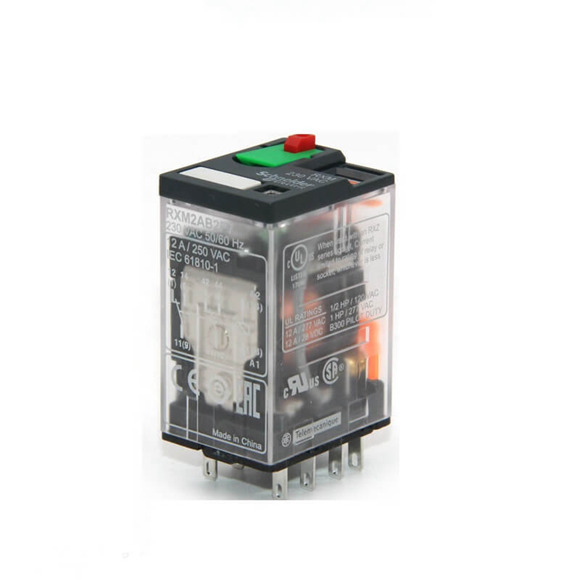

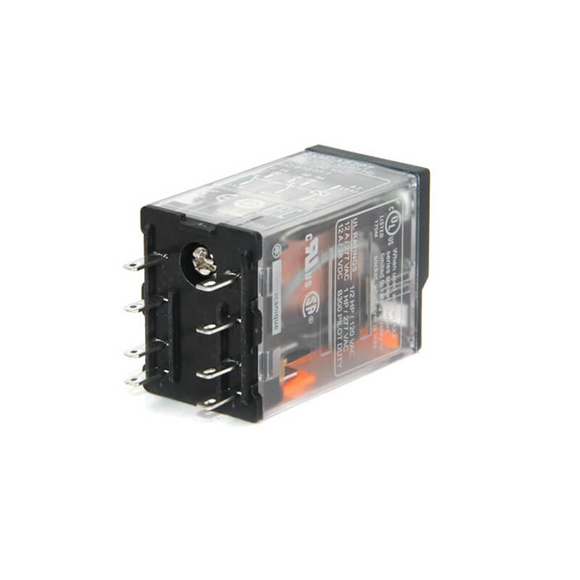

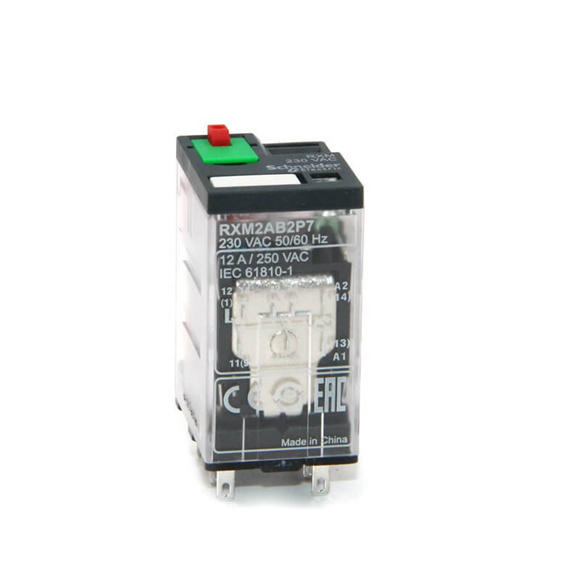

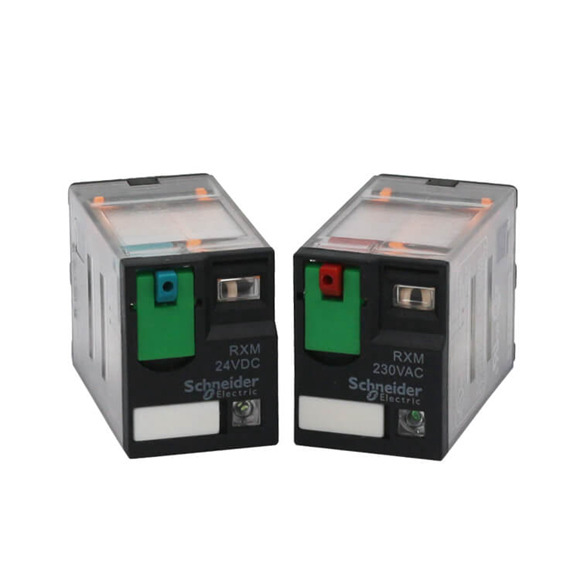

| range of product | Zelio Relay | |
| series name | Miniature | |
| product or component type | Plug-in relay | |
| device short name | RXM | |
| coil interference suppression | Without | |
| utilisation coefficient | 20 % | |
| sale per indivisible quantity | 10 |
| contact operation | Standard | |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz | |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C | |
| status LED | With | |
| control type | Without push-button | |
| [Ui] rated insulation voltage | 250 V conforming to IEC | |
| [Uimp] rated impulse withstand voltage | 3.6 kV during 1.2/50 µs conforming to IEC 61810-7 | |
| contacts material | Silver alloy (Ag/Ni) | |
| [Ie] rated operational current | 5 A (AC-1/DC-1) NO conforming to IEC 2.5 A (AC-1/DC-1) NC conforming to IEC |
|
| minimum switching current | 10 mA | |
| maximum switching voltage | 250 V AC 250 V DC |
|
| minimum switching voltage | 17 V | |
| load current | 5 A at 250 V AC 5 A at 28 V DC |
|
| maximum switching capacity | 1250 VA AC 140 W DC |
|
| minimum switching capacity | 170 mW | |
| operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
|
| mechanical durability | 10000000 cycles | |
| electrical durability | 100000 cycles for resistive load | |
| average coil consumption in VA | 1.2 AC | |
| drop-out voltage threshold | >= 0.15 Uc AC | |
| operating time | 20 ms between coil de-energisation and making of the Off-delay contact 20 ms between coil energisation and making of the On-delay contact |
|
| average resistance | 15000 Ohm network: AC at 20 °C +/- 15 % | |
| rated operational voltage limits | 184…253 V AC | |
| protection category | RT I | |
| test levels | Level A group mounting | |
| operating position | Any position | |
| CAD overall width | 21 mm | |
| CAD overall height | 27 mm | |
| CAD overall depth | 46 mm | |
| net weight | 0.031 kg |
