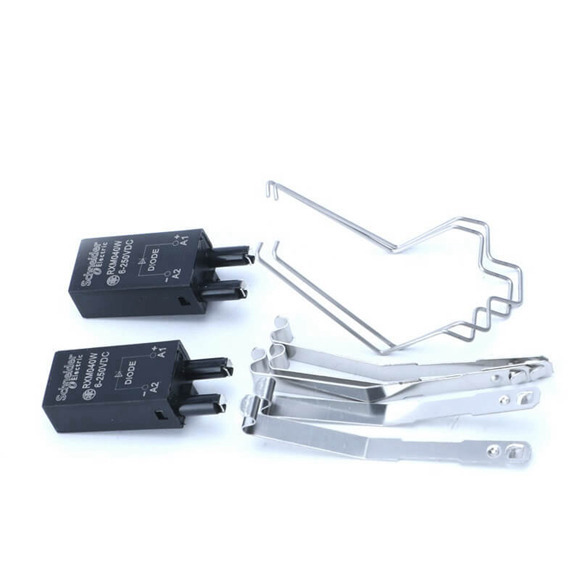

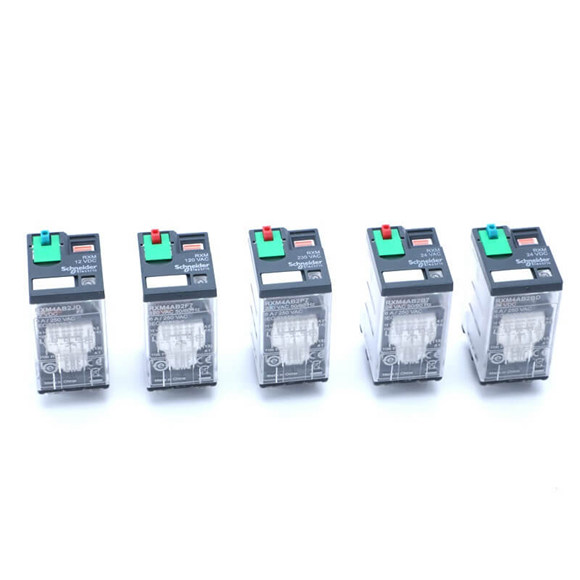

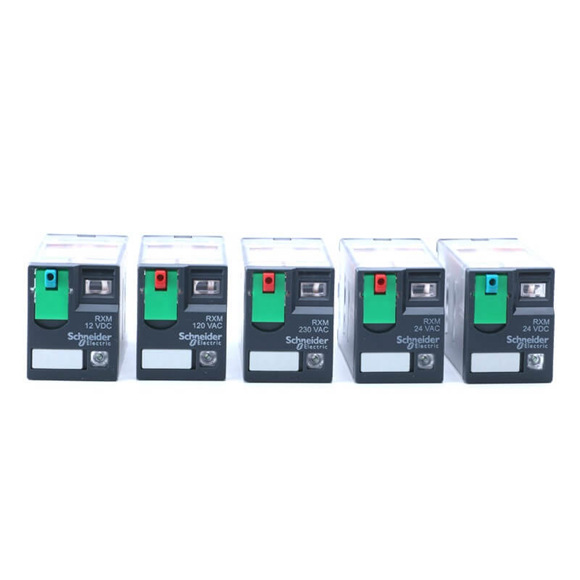

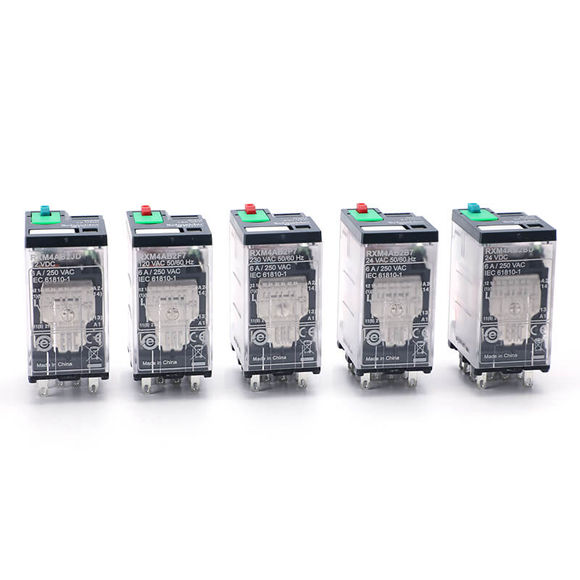

| range of product | Zelio Relay | |
| series name | Miniature | |
| product or component type | Plug-in relay | |
| device short name | RXM | |
| contacts type and composition | 4 C/O | |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz | |
| [Ithe] conventional enclosed thermal current | 6 A at -40…55 °C | |
| status LED | With | |
| control type | Lockable test button | |
| utilisation coefficient | 20 % |

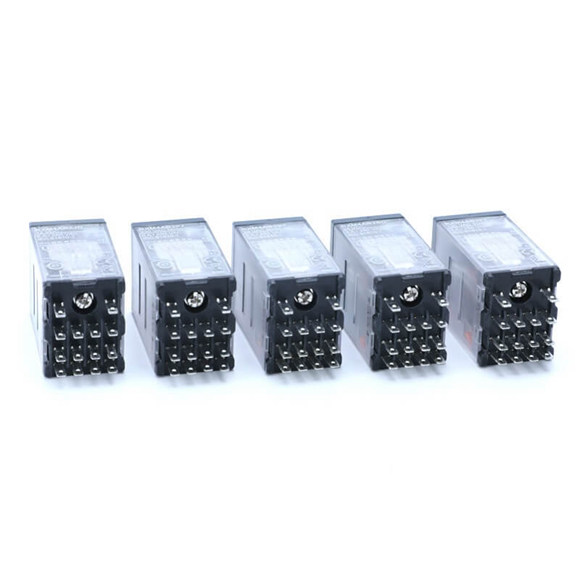

| shape of pin | Flat | |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
|
| [Uimp] rated impulse withstand voltage | 2.5 kV during 1.2/50 µs | |
| contacts material | AgNi | |
| [Ie] rated operational current | 3 A at 28 V (DC) NC conforming to IEC 3 A at 250 V (AC) NC conforming to IEC 6 A at 28 V (DC) NO conforming to IEC 6 A at 250 V (AC) NO conforming to IEC 6 A at 277 V (AC) conforming to UL 8 A at 30 V (DC) conforming to UL |
|
| maximum switching voltage | 250 V conforming to IEC | |
| resistive rated load | 6 A at 250 V AC 6 A at 28 V DC |
|
| maximum switching capacity | 1500 VA/168 W | |
| minimum switching capacity | 170 mW at 10 mA, 17 V | |
| operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
|
| mechanical durability | 10000000 cycles | |
| electrical durability | 100000 cycles for resistive load | |
| average coil consumption in VA | 1.2 at 60 Hz | |
| average consumption | 1.2 VA at 60 Hz | |
| drop-out voltage threshold | >= 0.15 Uc | |
| operate time | 20 ms | |
| release time | 20 ms | |
| average coil resistance | 15000 Ohm at 20 °C +/- 15 % | |
| rated operational voltage limits | 184…253 V AC | |
| safety reliability data | B10d = 100000 | |
| protection category | RT I | |
| test levels | Level A group mounting | |
| operating position | Any position | |
| CAD overall height | 82.8 mm | |
| CAD overall depth | 80.35 mm | |
| net weight | 0.037 kg | |
| device presentation | Complete product |
