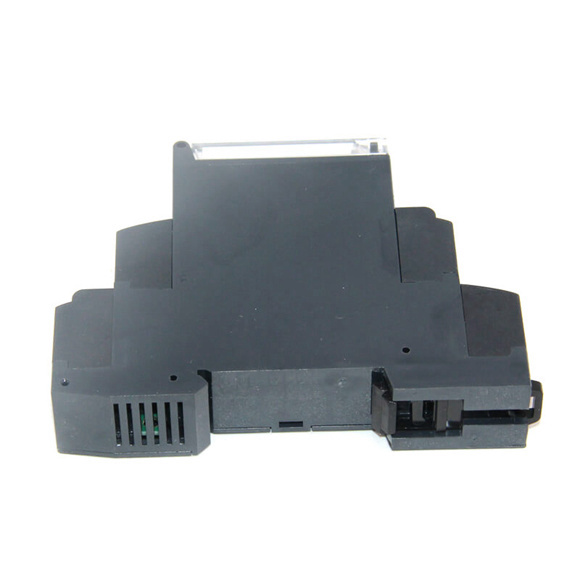

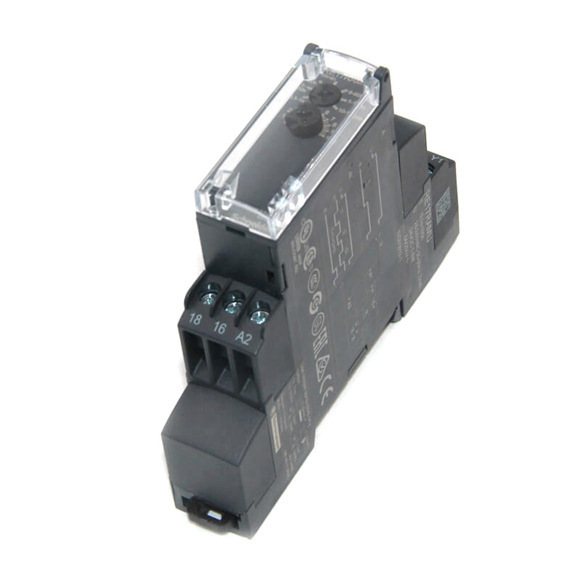

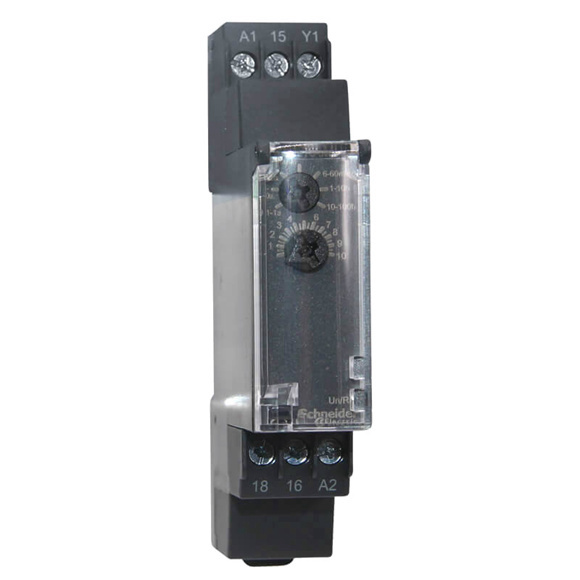

Schneider Modular timing relay RE17RAMU
Modular timing relay, 8 A, 1 CO, 1 s..100 h, on delay, 24…240 V AC
We are First Class Schneider Relays dealer and Schneider Relays distributor in China.
We can Supply All kinds Schneider Relays,such as Schneider Interface Relays,Schneider Miniature Relays,Schneider Power Relays,Schneider Timer Relays,Schneider Control Relays and Schneider Relays Socket.
100% Original and new,In stock by Schneider Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

range of product	Zelio Time
product or component type	Modular timing relay
discrete output type	Relay
width	17.5 mm
device short name	RE17R
time delay type	At A
time delay range	1…10 min 10…100 h 0.1…1 s 6…60 s 6…60 min 1…10 s 1…10 h
nominal output current	8 A

contacts type and composition	1 C/O
contacts material	Cadmium free
height	90 mm
depth	72 mm
control type	Selector switch front panel
[Us] rated supply voltage	24…240 V AC 50/60 Hz 24 V DC
voltage range	0.85…1.1 Us
supply frequency	50…60 Hz +/- 5 %
release of input voltage	10 V
connections – terminals	Screw terminals, 1 x 0.5…1 x 3.3 mm² (AWG 20…AWG 12) solid without cable end Screw terminals, 2 x 0.5…2 x 2.5 mm² (AWG 20…AWG 14) solid without cable end Screw terminals, 1 x 0.2…1 x 2.5 mm² (AWG 24…AWG 14) flexible with cable end Screw terminals, 2 x 0.2…2 x 1.5 mm² (AWG 24…AWG 16) flexible with cable end
tightening torque	0.6…1 N.m conforming to IEC 60947-1
housing material	Self-extinguishing
repeat accuracy	+/- 0.5 % conforming to IEC 61812-1
temperature drift	+/- 0.05 %/°C
voltage drift	+/- 0.2 %/V
setting accuracy of time delay	+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
control signal pulse width	100 ms with load in parallel typical 30 ms typical
insulation resistance	100 MOhm at 500 V DC conforming to IEC 60664-1
reset time	120 ms on de-energisation typical
on-load factor	100 %
power consumption in VA	0…32 VA at 240 V AC
maximum power consumption in W	0.6 W at 24 V DC
minimum switching current	10 mA at 5 V DC
maximum switching current	8 A AC/DC
maximum switching voltage	250 V AC
breaking capacity	2000 VA
operating frequency	10 Hz
electrical durability	100000 cycles (8 A at 250 V AC maximum) for resistive load
mechanical durability	10000000 cycles
dielectric strength	2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
[Uimp] rated impulse withstand voltage	5 kV during 1.2/50 µs
power on delay	100 ms
marking	CE
creepage distance	4 kV/3 conforming to IEC 60664-1
safety reliability data	B10d = 270000 MTTFd = 296.8 years
mounting position	Any position in relation to normal vertical mounting plane
mounting support	35 mm DIN rail conforming to EN/IEC 60715
local signalling	LED indicator for on steady: relay energised, no timing in progress LED indicator for flashing: timing in progress 80 % ON and 20 % OFF LED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF
net weight	0.07 kg
