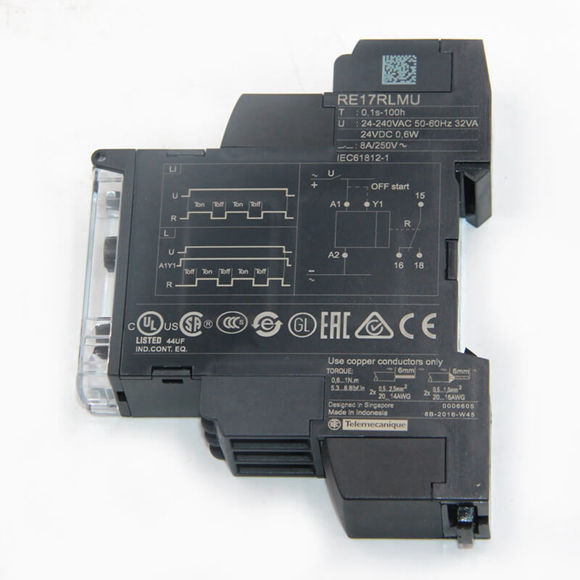

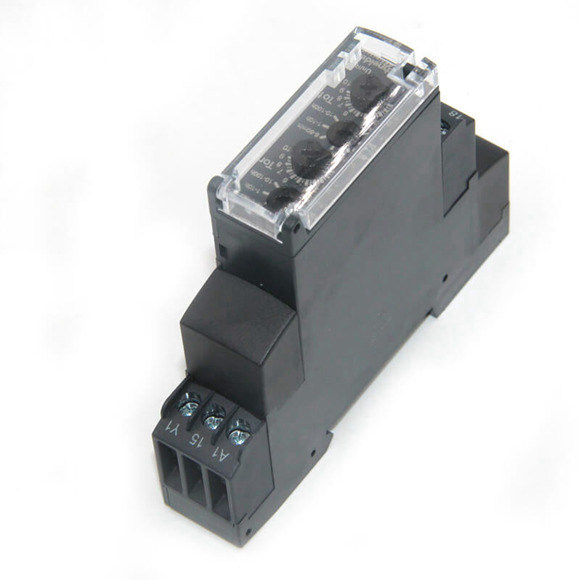

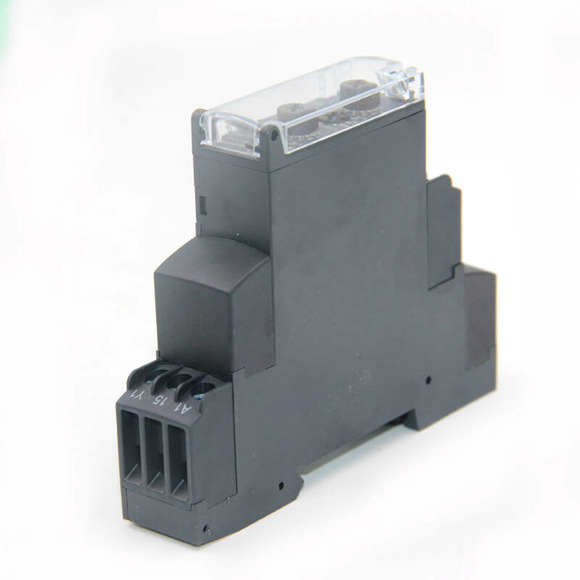

Schneider Modular timing relay RE17RLMU

Series#: Schneider Timer relays

Product Details

Qty:

Specification

range of product Zelio Time
product or component type Modular timing relay
discrete output type Relay
width 17.5 mm
device short name RE17R
time delay type Li
L
time delay range 1…10 h
1…10 s
0.1…1 s
6…60 min
1…10 min
10…100 h
6…60 s
nominal output current 8 A



contacts type and composition 1 C/O
contacts material Cadmium free
height 90 mm
depth 72 mm
control type Selector switch front panel
[Us] rated supply voltage 24…240 V AC 50/60 Hz
24 V DC
voltage range 0.85…1.1 Us
supply frequency 50…60 Hz +/- 5 %
release of input voltage 10 V
connections – terminals Screw terminals, 1 x 0.5…1 x 3.3 mm² (AWG 20…AWG 12) solid without cable end
Screw terminals, 2 x 0.5…2 x 2.5 mm² (AWG 20…AWG 14) solid without cable end
Screw terminals, 1 x 0.2…1 x 2.5 mm² (AWG 24…AWG 14) flexible with cable end
Screw terminals, 2 x 0.2…2 x 1.5 mm² (AWG 24…AWG 16) flexible with cable end
tightening torque 0.6…1 N.m conforming to IEC 60947-1
housing material Self-extinguishing
repeat accuracy +/- 0.5 % conforming to IEC 61812-1
temperature drift +/- 0.05 %/°C
voltage drift +/- 0.2 %/V
setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
control signal pulse width 100 ms with load in parallel typical
30 ms typical
insulation resistance 100 MOhm at 500 V DC conforming to IEC 60664-1
reset time 120 ms on de-energisation typical
on-load factor 100 %
power consumption in VA 0…32 VA at 240 V AC
maximum power consumption in W 0.6 W at 24 V DC
minimum switching current 10 mA at 5 V DC
maximum switching current 8 A AC/DC
maximum switching voltage 250 V AC
breaking capacity 2000 VA
operating frequency 10 Hz
electrical durability 100000 cycles (8 A at 250 V AC maximum) for resistive load
mechanical durability 10000000 cycles
dielectric strength 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
[Uimp] rated impulse withstand voltage 5 kV during 1.2/50 µs
power on delay 100 ms
marking CE
creepage distance 4 kV/3 conforming to IEC 60664-1
safety reliability data MTTFd = 296.8 years
B10d = 270000
mounting position Any position in relation to normal vertical mounting plane
mounting support 35 mm DIN rail conforming to EN/IEC 60715
local signalling LED indicator for on steady: relay energised, no timing in progress
LED indicator for flashing: timing in progress 80 % ON and 20 % OFF
net weight 0.07 kg
