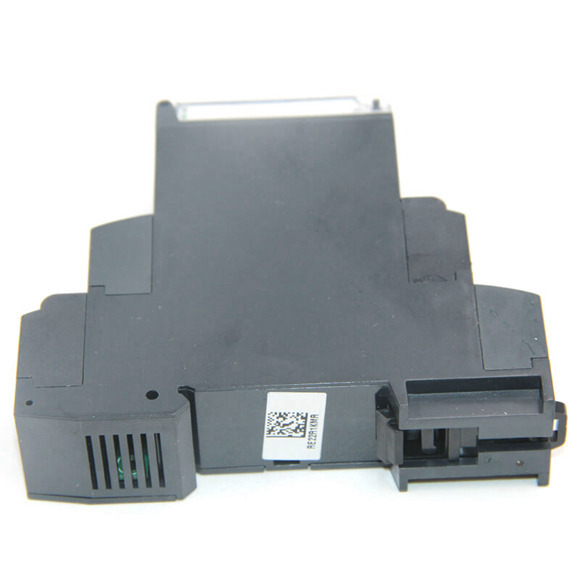

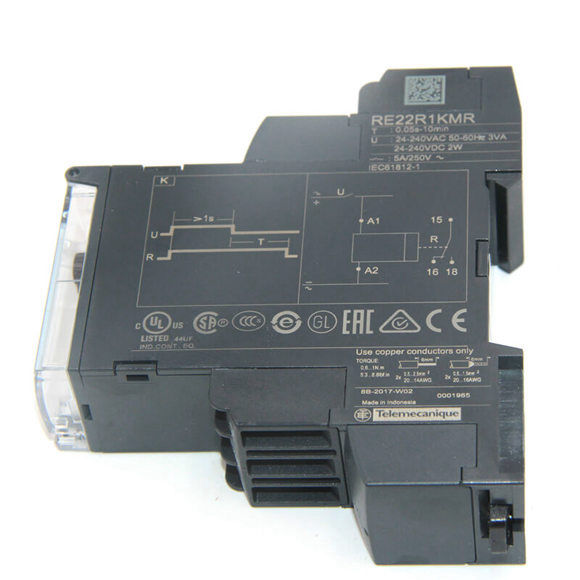

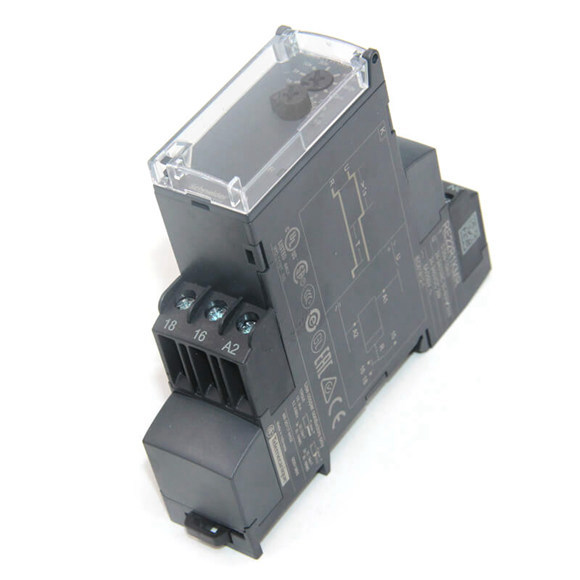

Schneider Modular timing relay RE22R1KMR
Off-delay Timing Relay – 0.05s…10min – 24…240V AC/DC – 1C/O
We are First Class Schneider Relays dealer and Schneider Relays distributor in China.
We can Supply All kinds Schneider Relays,such as Schneider Interface Relays,Schneider Miniature Relays,Schneider Power Relays,Schneider Timer Relays,Schneider Control Relays and Schneider Relays Socket.
100% Original and new,In stock by Schneider Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

range of product	Zelio Time
product or component type	Modular timing relay
discrete output type	Relay
device short name	RE22
nominal output current	5 A

contacts type and composition	1 C/O timed contact, cadmium free
time delay type	K
time delay range	10…100 s 1…10 min 1…10 s 0.3…3 s 3…30 s 0.05…1 s 30…300 s
control type	Rotary knob
[Us] rated supply voltage	24…240 V AC/DC 50/60 Hz
Release input voltage	<= 2.4 V
voltage range	0.85…1.1 Us
supply frequency	50…60 Hz +/- 5 %
connections – terminals	Screw terminals, 1 x 0.5…1 x 3.3 mm² (AWG 20…AWG 12) solid without cable end Screw terminals, 2 x 0.5…2 x 2.5 mm² (AWG 20…AWG 14) solid without cable end Screw terminals, 1 x 0.2…1 x 2.5 mm² (AWG 24…AWG 14) flexible with cable end Screw terminals, 2 x 0.2…2 x 1.5 mm² (AWG 24…AWG 16) flexible with cable end
tightening torque	0.6…1 N.m conforming to IEC 60947-1
housing material	Self-extinguishing
repeat accuracy	+/- 0.5 % conforming to IEC 61812-1
temperature drift	+/- 0.05 %/°C
voltage drift	+/- 0.2 %/V
setting accuracy of time delay	+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
insulation resistance	100 MOhm at 500 V DC conforming to IEC 60664-1
Recovery time	100 ms on de-energisation
immunity to microbreaks	10 ms
power consumption in VA	3 VA at 240 V AC
power consumption in W	2 W at 240 V DC
switching capacity in VA	1250 VA
minimum switching current	10 mA at 5 V DC
maximum switching current	5 A
maximum switching voltage	250 V AC
electrical durability	100000 cycles, 2 A at 24 V, DC-1 100000 cycles, 5 A at 250 V, AC-1
mechanical durability	10000000 cycles
Rated impulse withstand voltage	5 kV for 1.2…50 µs conforming to IEC 60664-1
Power on delay	200 ms
creepage distance	4 kV/3 conforming to IEC 60664-1
overvoltage category	III conforming to IEC 60664-1
safety reliability data	MTTFd = 194 years B10d = 180000
mounting position	Any position
mounting support	35 mm DIN rail conforming to EN/IEC 60715
status LED	LED backlight green (steady) for dial pointer indication LED yellow (steady) for output relay energised LED yellow (steady) for power ON
width	22.5 mm
net weight	0.1 kg
