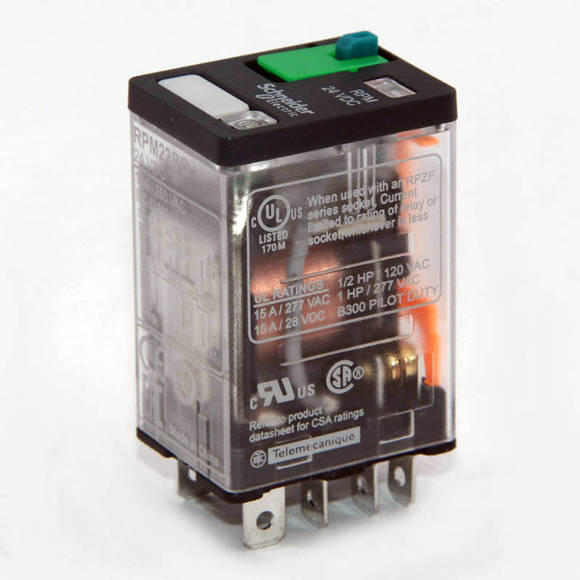

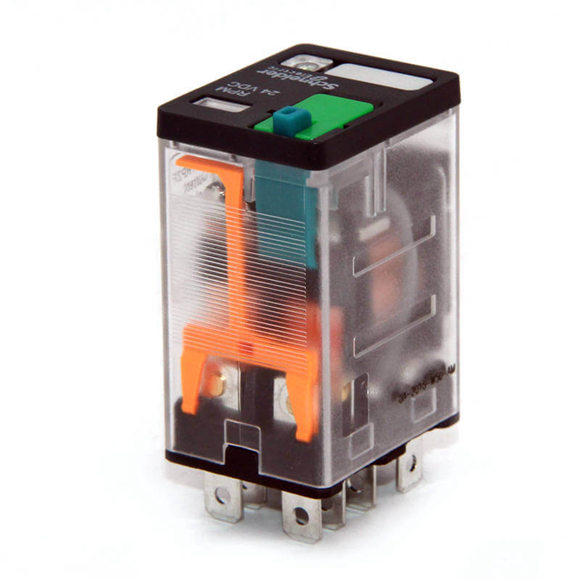

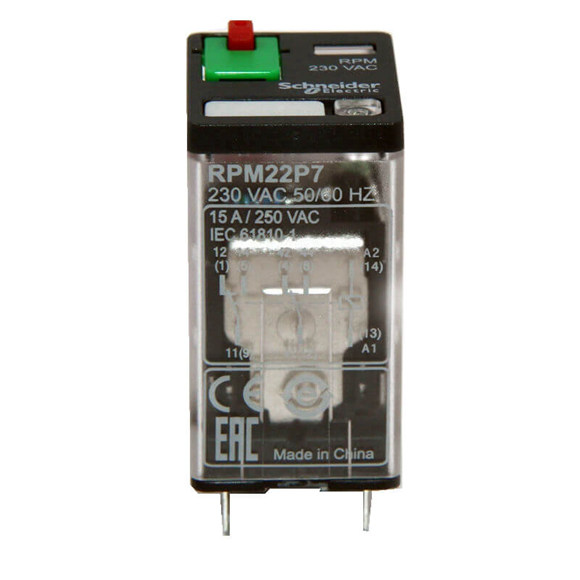

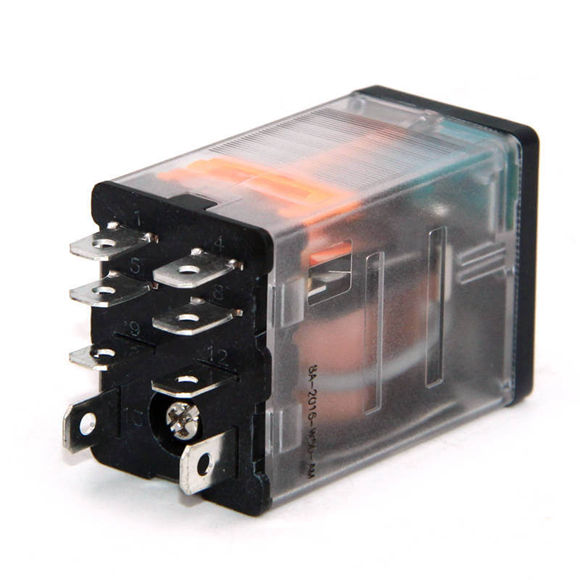

Schneider Power relays RPM22BD DC24V

Series#: Schneider Power relays

Product Details

Qty:

Specification

range of product Zelio Relay
series name Power
product or component type Plug-in relay
device short name RPM
contacts type and composition 2 C/O
[Uc] control circuit voltage 24 V DC
[Ithe] conventional enclosed thermal current 15 A at -40…55 °C
status LED With
control type Lockable test button
utilisation coefficient 20 %



shape of pin Flat
[Ui] rated insulation voltage 250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
[Uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs
contacts material AgNi
[Ie] rated operational current 15 A at 277 V (AC) conforming to UL
15 A at 28 V (DC) conforming to UL
15 A at 250 V (AC) NO conforming to IEC
15 A at 28 V (DC) NO conforming to IEC
7.5 A at 250 V (AC) NC conforming to IEC
7.5 A at 28 V (DC) NC conforming to IEC
maximum switching voltage 250 V conforming to IEC
Resistive load current 15 A at 250 V AC
15 A at 28 V DC
maximum switching capacity 3750 VA
420 W
minimum switching capacity 170 mW at 10 mA, 17 V
operating rate <= 1200 cycles/hour under load
<= 18000 cycles/hour no-load
mechanical durability 10000000 cycles
electrical durability 100000 cycles for resistive load
Average coil consumption 0.85 W
drop-out voltage threshold >= 0.1 Uc DC
Operate time 20 ms at nominal voltage
Release time 20 ms at nominal voltage
Average coil resistance 640 Ohm at 20 °C +/- 10 %
rated operational voltage limits 19.2…26.4 V DC
protection category RT I
test levels Level A group mounting
operating position Any position
pollution degree 3
safety reliability data B10d = 100000
net weight 0.036 kg
device presentation Complete product
