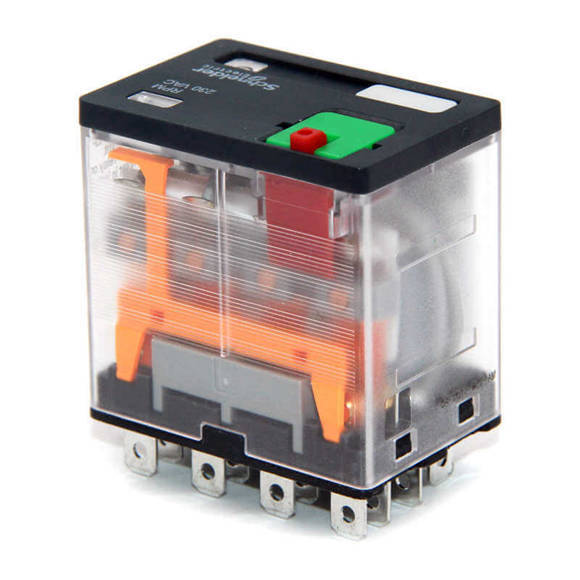

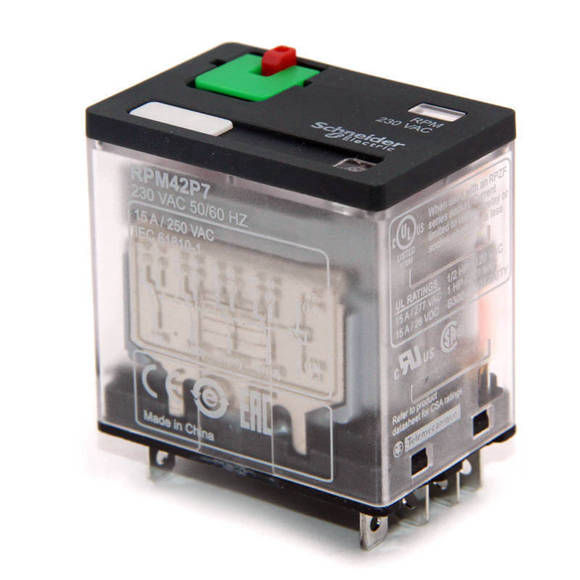

| range of product | Zelio Relay | |
| series name | Power | |
| product or component type | Plug-in relay | |
| device short name | RPM | |
| contacts type and composition | 4 C/O | |
| [Uc] control circuit voltage | 230 V AC | |
| [Ithe] conventional enclosed thermal current | 15 A at -40…55 °C | |
| status LED | With | |
| control type | Lockable test button | |
| utilisation coefficient | 20 % |
| shape of pin | Flat | |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
|
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs | |
| contacts material | AgNi | |
| [Ie] rated operational current | 15 A at 277 V (AC) conforming to UL 15 A at 28 V (DC) conforming to UL 15 A at 250 V (AC) NO conforming to IEC 15 A at 28 V (DC) NO conforming to IEC 7.5 A at 250 V (AC) NC conforming to IEC 7.5 A at 28 V (DC) NC conforming to IEC |
|
| maximum switching voltage | 250 V conforming to IEC | |
| Resistive load current | 15 A at 250 V AC 15 A at 28 V DC |
|
| maximum switching capacity | 3750 VA 420 W |
|
| minimum switching capacity | 170 mW at 10 mA, 17 V | |
| operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
|
| mechanical durability | 10000000 cycles | |
| electrical durability | 100000 cycles for resistive load | |
| Average coil consumption in VA | 2.5 at 60 Hz | |
| drop-out voltage threshold | >= 0.15 Uc AC | |
| Operate time | 20 ms at nominal voltage | |
| Release time | 20 ms at nominal voltage | |
| Average coil resistance | 7350 Ohm at 20 °C +/- 15 % | |
| rated operational voltage limits | 184…253 V AC | |
| protection category | RT I | |
| test levels | Level A group mounting | |
| operating position | Any position | |
| pollution degree | 3 | |
| safety reliability data | B10d = 100000 | |
| net weight | 0.071 kg |
