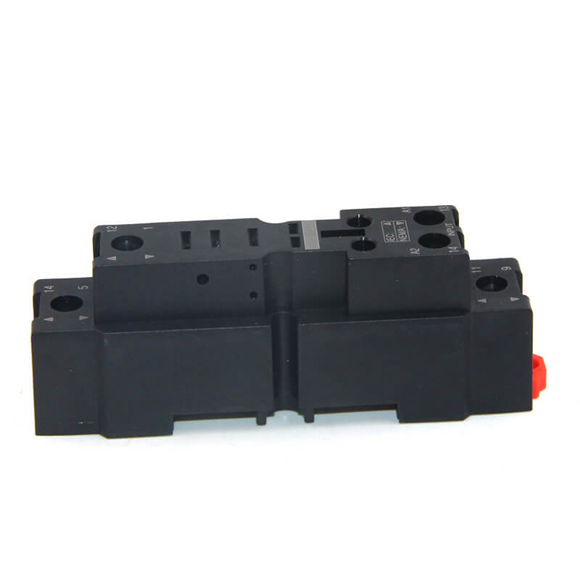

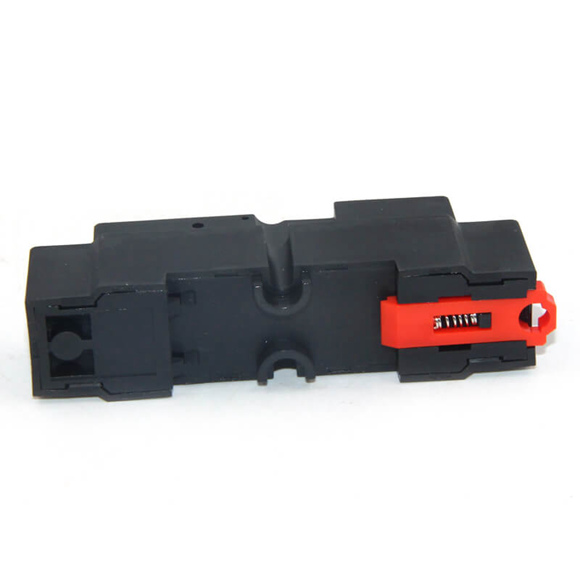

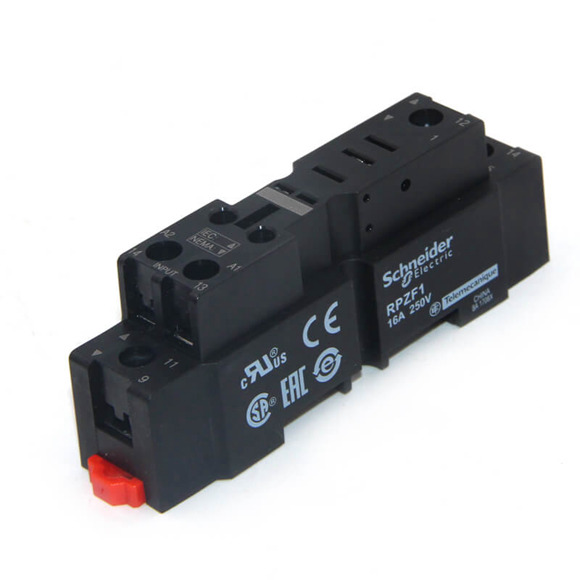

Schneider RPM1 Relays socket RPZF1

Schneider RPM1 Relays socket RPZF1
Socket, mixed contact, 16 A, relay type RPM1, screw clamp terminals, 250 V AC
We are First Class Schneider Relays dealer and Schneider Relays distributor in China.
We can Supply All kinds Schneider Relays,such as Schneider Interface Relays,Schneider Miniature Relays,Schneider Power Relays,Schneider Timer Relays,Schneider Control Relays and Schneider Relays Socket.
100% Original and new,In stock by Schneider Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

range of product	Zelio Relay
product or component type	Socket
contact terminal arrangement	Mixed
product compatibility	Plug-in relay RPM with 1 C/O contact
device short name	RPZ

[Ith] conventional free air thermal current	16 A
[Ue] rated operational voltage	250 V
tightening torque	< 1 N.m for M3.5 screw(s) < 0.8 N.m for M3 screw(s)
fixing mode	By screw (panel) Clip-on (35 mm symmetrical DIN rail)
net weight	0.031 kg

connections – terminals	Contact terminal – screw clamp terminals, 2 wires solid cable without cable end 0.5…4 mm² / AWG 20…AWG 12 Contact terminal – screw clamp terminals, 1 wire solid cable without cable end 0.5…4 mm² / AWG 20…AWG 12 Contact terminal – screw clamp terminals, 2 wires flexible cable with cable end 0.5…2.5 mm² / AWG 20…AWG 14 Contact terminal – screw clamp terminals, 1 wire flexible cable with cable end 0.5…2.5 mm² / AWG 20…AWG 14 Coil terminal – screw clamp terminals, 2 wires solid cable without cable end 0.5…2.5 mm² / AWG 20…AWG 14 Coil terminal – screw clamp terminals, 1 wire solid cable without cable end 0.5…2.5 mm² / AWG 20…AWG 14 Coil terminal – screw clamp terminals, 2 wires flexible cable with cable end 0.5…1.5 mm² / AWG 20…AWG 16 Coil terminal – screw clamp terminals, 1 wire flexible cable with cable end 0.5…1.5 mm² / AWG 20…AWG 16
standards	IEC 61984 CSA C22.2 No 14 UL 508
product certifications	CSA UL RoHS China RoHS EAC REACH CE
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	-40…55 °C
IP degree of protection	IP20 conforming to EN/IEC 60529
dielectric strength	2500 V
