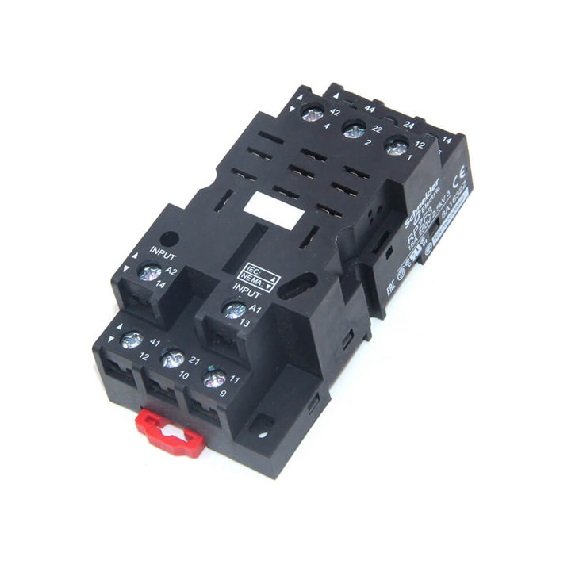

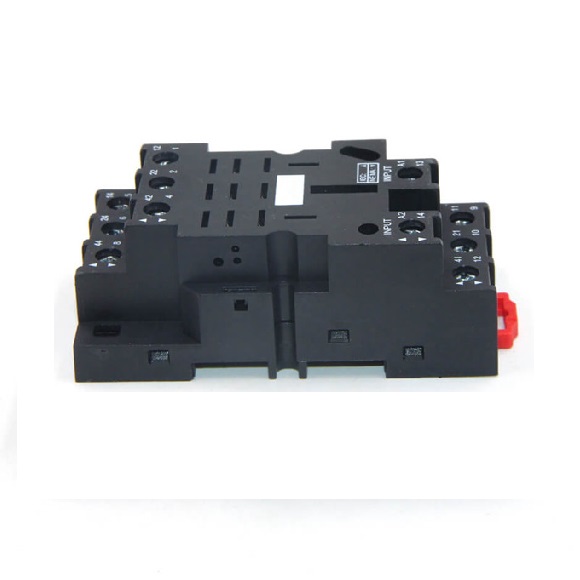

| range of product | Zelio Relay | |
| product or component type | Socket | |
| contact terminal arrangement | Mixed | |
| product compatibility | Plug-in relay RPM with 3 C/O contact | |
| shape of pin | Flat | |
| device short name | RPZ | |
| sale per indivisible quantity | 10 |
| [Ith] conventional free air thermal current | 16 A | |
| [Ue] rated operational voltage | < 250 V | |
| tightening torque | < 1 N.m for M3.5 screw(s) | |

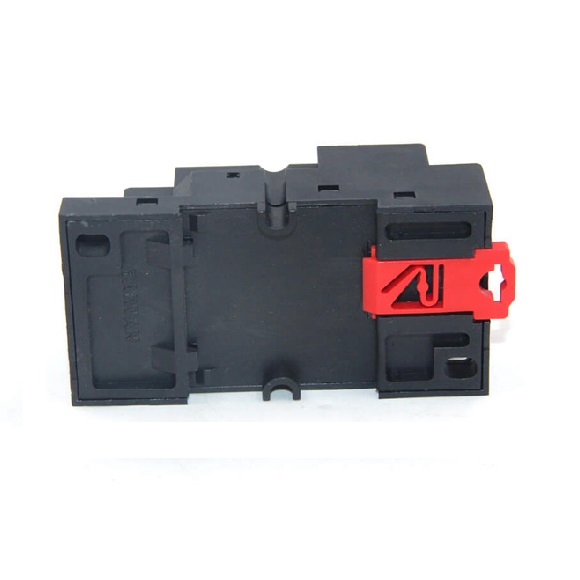

| fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
|
| marking | CE | |
| width | 40 mm | |
| net weight | 0.072 kg |
| connections – terminals | – screw clamp terminals, flexible cable with cable end 1 x 0.5…2 x 1.5 mm² / AWG 20…AWG 14 – screw clamp terminals, solid cable without cable end 1 x 0.5…2 x 1.5 mm² / AWG 20…AWG 12 |
|
| standards | IEC 61984 | |
| product certifications | CSA UL |
|
| ambient air temperature for storage | -40…85 °C | |
| ambient air temperature for operation | -40…55 °C | |
| IP degree of protection | IP20 conforming to EN/IEC 60529 | |
| dielectric strength | 2500 V |
| Unit Type of Package 1 | PCE | |
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 77 g | |
| Package 1 Height | 3 cm | |
| Package 1 width | 4 cm | |
| Package 1 Length | 8.5 cm | |
| Unit Type of Package 2 | BB1 | |
| Number of Units in Package 2 | 10 | |
| Package 2 Weight | 770 g | |
| Package 2 Height | 6.3 cm | |
| Package 2 width | 12 cm | |
| Package 2 Length | 20.2 cm | |
| Unit Type of Package 3 | S03 | |
| Number of Units in Package 3 | 150 | |
| Package 3 Weight | 12.45 kg | |
| Package 3 Height | 30 cm | |
| Package 3 width | 30 cm | |
| Package 3 Length | 40 cm |
