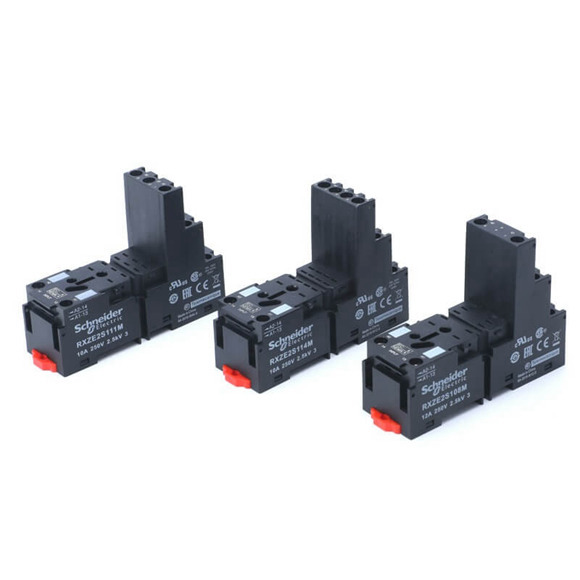

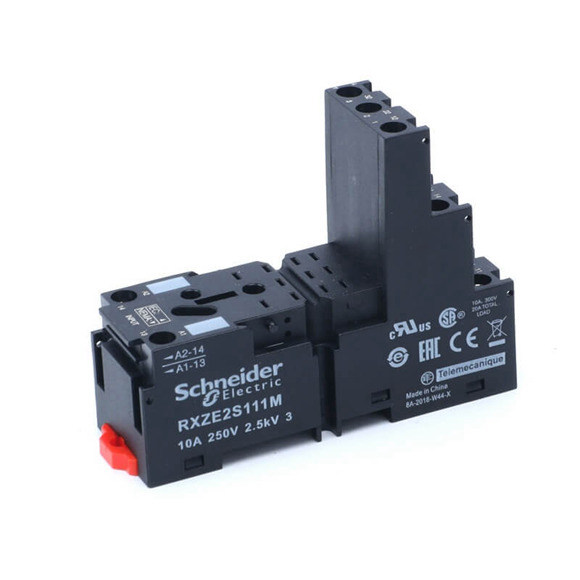

Schneider RXM3 Relays Socket RXZE2S111M 11Pin

Schneider RXM2 Relays Socket RXZE2S111M 11Pin
Socket, separate contact, 10 A, relay type RXM3, screw connector, 250 V AC
We are First Class Schneider Relays dealer and Schneider Relays distributor in China.
We can Supply All kinds Schneider Relays,such as Schneider Interface Relays,Schneider Miniature Relays,Schneider Power Relays,Schneider Timer Relays,Schneider Control Relays and Schneider Relays Socket.
100% Original and new,In stock by Schneider Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

range of product	Zelio Relay
product or component type	Socket
contact terminal arrangement	Separate
product compatibility	Plug-in relay RXM with 3 C/O contact
shape of pin	Flat
device short name	RXZ
sale per indivisible quantity	10

[Ith] conventional free air thermal current	5 A with bus jumper 10 A
[Ue] rated operational voltage	< 250 V
connections – terminals	Connector, 1 x 0.25…1 x 2.5 mm² (AWG 22…AWG 14) flexible with cable end Connector, 2 x 0.25…2 x 1 mm² (AWG 22…AWG 17) flexible with cable end Connector, 1 x 0.5…1 x 2.5 mm² (AWG 20…AWG 14) solid without cable end Connector, 2 x 0.5…2 x 1.5 mm² (AWG 20…AWG 16) solid without cable end
tightening torque	< 1 N.m for M3 screw(s)
fixing mode	By screw (panel) Clip-on (35 mm symmetrical DIN rail)
marking	CE
width	27 mm
net weight	0.066 kg
