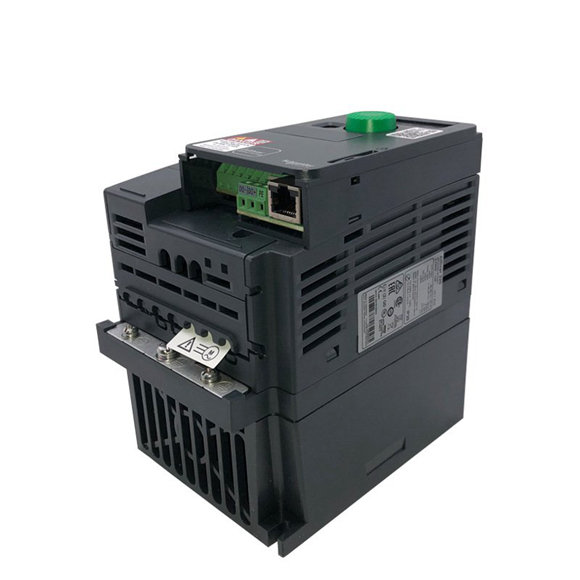

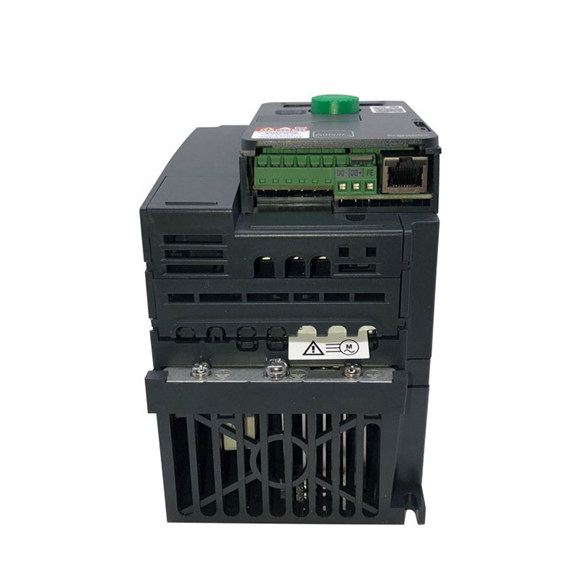

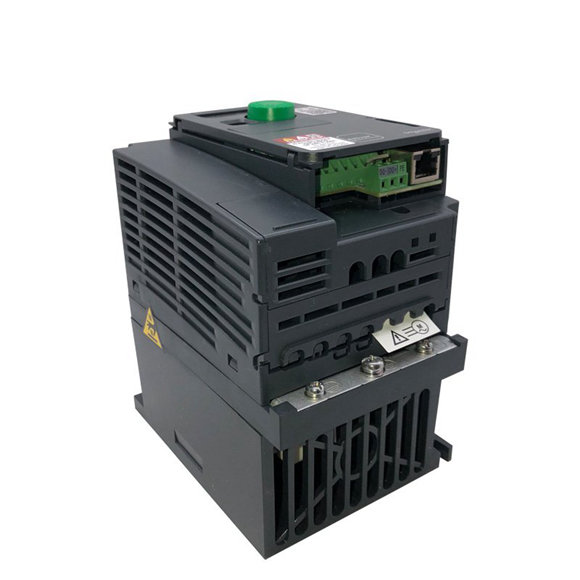

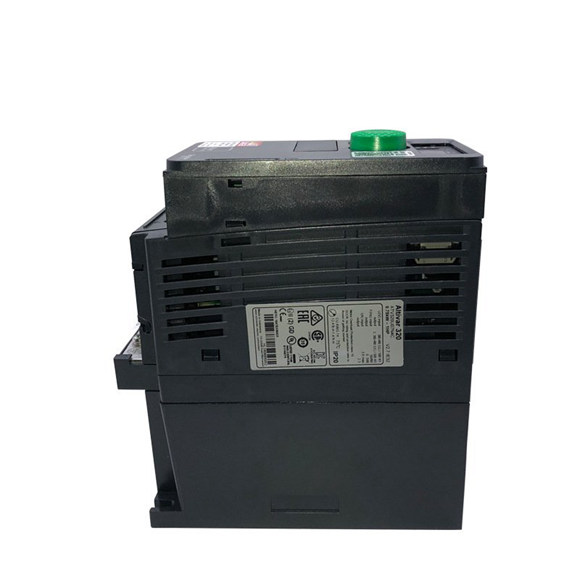

Schneider VFD Inverter Drive ATV320 0.37kw-15KW

Series#: Schneider Inverter VFD

Product Details

Schneider VFD Inverter Drive ATV320 0.37kw-15KW
We are First Class Schneider VFD Inverter Drive dealer and Schneider VFD Inverter Drive distributor in China.
We can Supply Schneider Electric parts,such as Schneider PLC,Schneider Servo Motor,Schneider HMI,Schneider VFD and Schneider Relays.
100% Original and new,In stock by Schneider Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Item	Schneider VFD Inverter Drive ATV320 0.37kw-15KW
Degree of protection	IP20	IP20
Single-phase 200…240V	0.18…2.2 kW/0.25… 3 HP	0.18…2.2 kW/0.25… 3 HP
Three-phase 200…240V	0.18…15 kW/0.25…20 HP	–
Three-phase 380…500V	0.37…15 kW/0.5…20 HP	0.37…15 kW/0.5…20 HP
Three-phase 525…600V	0.75…15 kW/1…20 HP	–
Output frequency	0.1…599 Hz	–
Control type Asynchronous motor	U/F ratio (2 points, 5 points, energy saving, quadratic), Flux vector control without sensor (Standard and Energy saving)
Synchronous motor	Vector control without sensor
Motor sensor Integrated	–
as an option	RS422 (speed monitoring)
Overload torque performance	Up to 200% Tn of over torque, and 170% tn of braking torque for open loop motor control
Advanced functions	b Control of asynchronous and snychronous motors; including IE2, IE3 and PM motors in open loop b MachineStruxure integration in SoMachine b Operation in Velocity mode and Torque control (with current limitation) b Customizable and flexible application functions with ATV Logic (up to 50 function blocks) b Numerous application functions for targeted application segments b Embedded safety functions dedicated to targeted application segments
Integrated safety functions	STO (up to SIL3 / PLe), SS1, SLS, SMS, GDL
Number of preset speeds	16
Analog inputs	3: 1 Bipolar differential ±10 V, 1 with Voltage 0…10 V and 1 with current (0-20 mA)
Digital inputs	6: 4 configurable (positive or negative logic), 1 with PTC probe input, 1x20kHz pulse input
Analog outputs	1: Configurable as voltage (0…10 V) or current (0-20 mA)
Digital outputs	1: Configurable as sink or source
Relay outputs	2: 1 with NO/NC contacts and 1 with NO contacts
Safety function inputs	1 + 4: 1 with STO and 4 configurable for safety functions from digital inputs
Integrated	Single port compatible with CANopen and Modbus Serial line
Optional	Ethernet IP and Modbus TCP, CANopen RJ45 Daisy Chain, Sub-D, and screw terminals, PROFINET, Profibus DP V1, EtherCAT, DeviceNet and PowerLink
Configuration and runtime tools	Integrated Display, DTM (Device Type Manager), SoMove software, simple loader (optional), Multiloader(optional), and remote graphic terminal(optional).
