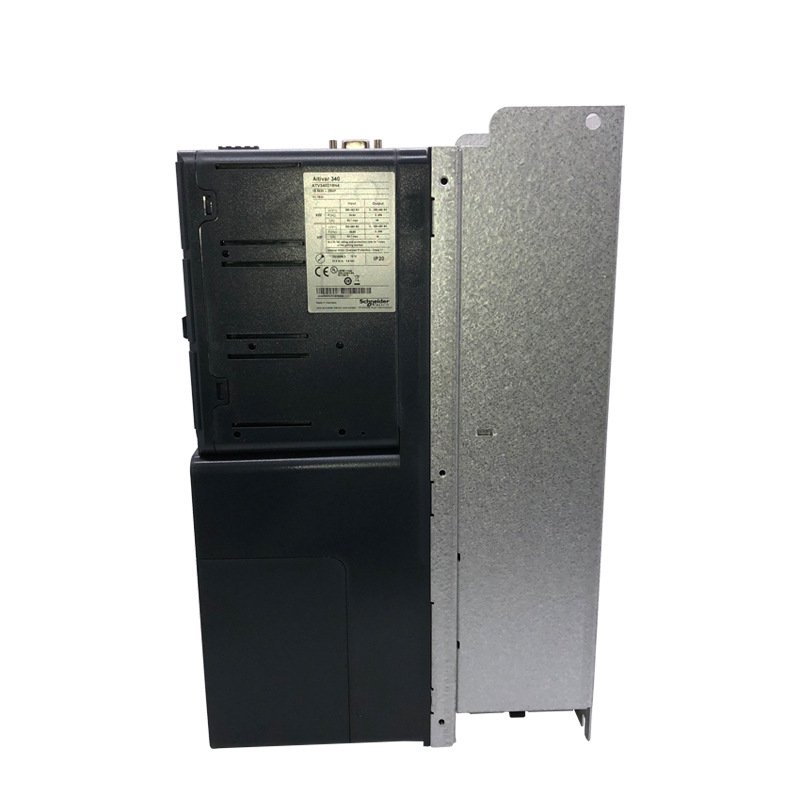

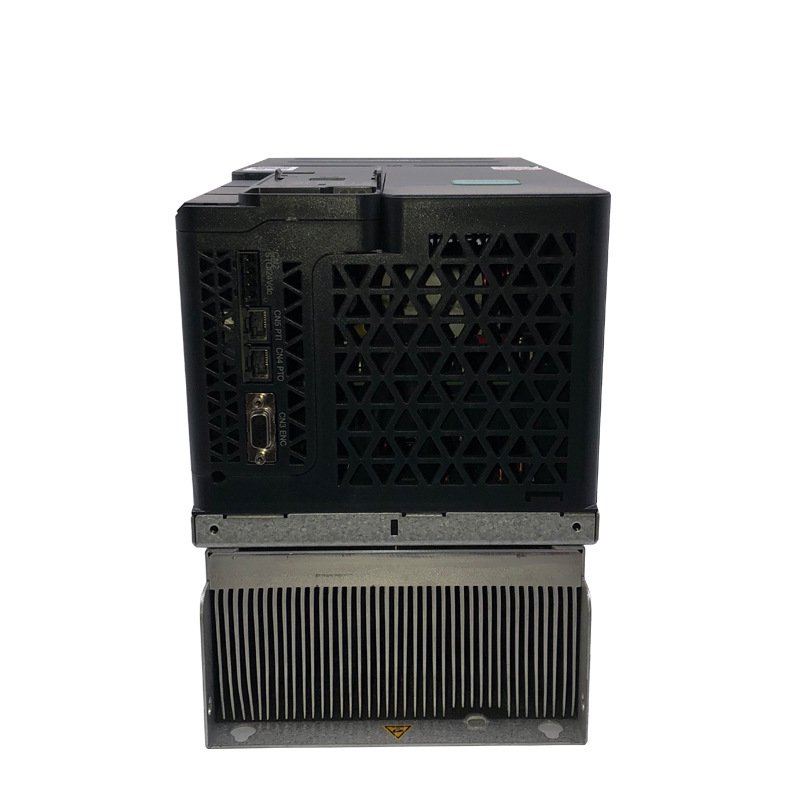

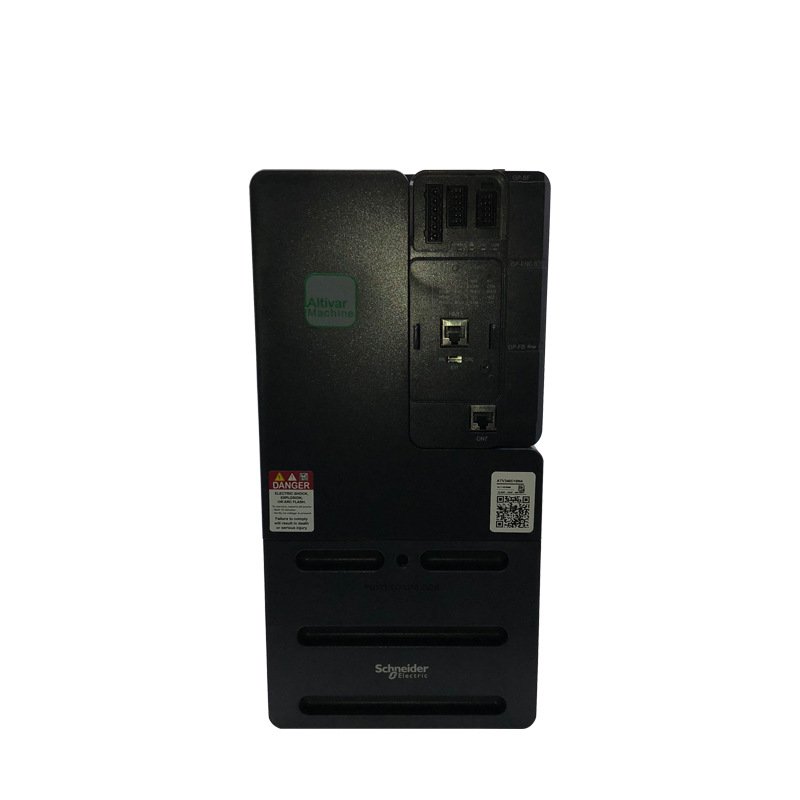

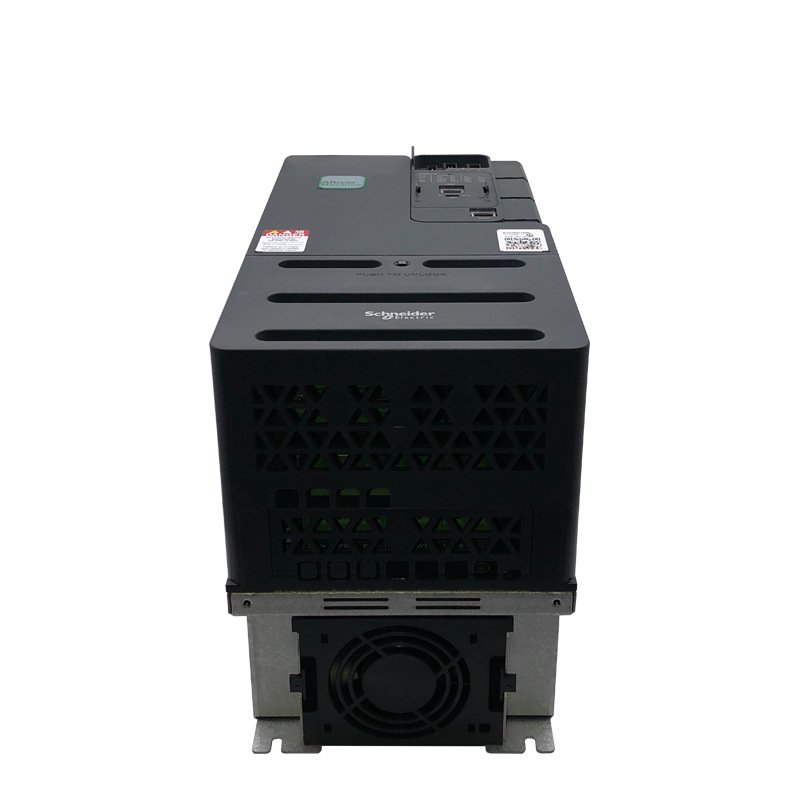

Schneider VFD Inverter Drive ATV340 Series 0.75-75KW

Series#: Schneider Inverter VFD

Product Details

Schneider VFD Inverter Drive ATV340 0.75-75KW
Designed for optimized installation, the Altivar Machine ATV340 drive offers cutting edge application control and advanced.
Altivar Machine ATV340 was engineered to maximize machine performance, reduce machine build time and sustain machine productivity.
Seamless automation integration
Robust design for long-lasting operation and reliable service
The Altivar Machine 340 is compliant with machine safety and cybersecurity standards to ensure enduring protection of your people and assets
Compliant with machine-related safety standards EN ISO 13849-1 and EN-62061
Compliant with IEC60721-3-3 Class 3C3 and 3S3
Enriched variety of interfaces, numerous I/Os, Multi Ethernet protocol, PTI/PTO, embedded encoder as well as multiple option interfaces offers maximum flexibility in architecture design
Data logging and monitoring through the local system or remote monitoring via the embedded web server ensure users have access to any motor or application-relevant data anytime, anywhere

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Item	Schneider VFD Inverter Drive ATV340 Series 0.75-75KW
Degree of protection			IP20		IP20
Power range for 50..60 Hz supply	Single-phase 200…240 V			0.18…2.2 kW/0.25… 3 HP	0.18…2.2 kW/0.25… 3 HP
	Three-phase 200…240 V			0.18…15 kW/0.25…20 HP	–
	Three-phase 380…480 V			–
	Three-phase 380…500 V			0.37…15 kW/0.5…20 HP	0.37…15 kW/0.5…20 HP
	Three-phase 525…600 V			0.75…15 kW/1…20 HP	–
Drive	Output frequency			0.1…599 Hz	–
	Control type	Asynchronous motor		U/F ratio (2 points, 5 points, energy saving, quadratic), flux vector control without sensor (standard and energy saving)
		Synchronous motor		Vector control without sensor
	Motor sensor	Integrated		–
	Available as an option			RS422 (speed monitoring)
	Overload torque performance			Up to 200% Tn of overtorque, and 170% Tn of braking torque for open loop motor control
Functions	Advanced functions			b Control of asynchronous and synchronous motors; including IE2, IE3, and PM motors in open loop b MachineStruxure integration in EcoStruxure Machine Expert b Operation in Velocity mode and Torque control (with current limitation) b Customizable and flexible application functions with ATV Logic (up to 50 function blocks) b Numerous application functions for targeted application segments b Embedded Safety functions dedicated to targeted application segments
	Integrated Safety functions			STO (up to SIL3/PLe), SS1, SLS, SMS, GDL
	Number of preset speeds			16
Number of integrated I/O	Analog inputs			3: 1 bipolar differential input ±10 V, 1 voltage input (0…10 V), and 1 current input (0-20 mA)
	Digital inputs			6: 4 configurable inputs (positive or negative logic), 1 input with PTC probe, 1 x 20 kHz pulse input
	Analog outputs			1: Configurable as voltage (0…10 V) or current (0-20 mA)
	Digital outputs			1: Configurable as sink or source
	Relay outputs			2: 1 with NO/NC contacts and 1 with NO contacts
	Safety function inputs			1 + 4: 1 with STO and 4 configurable for Safety functions from digital inputs
