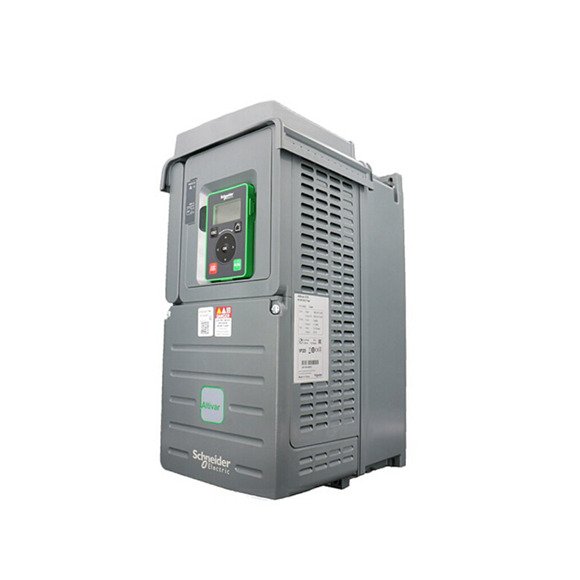

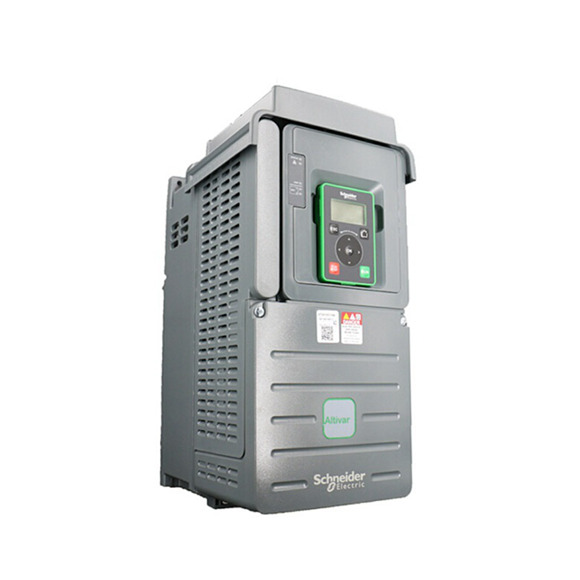

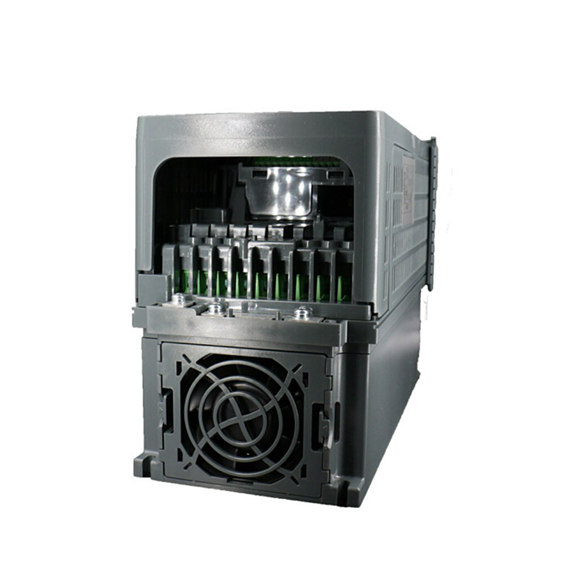

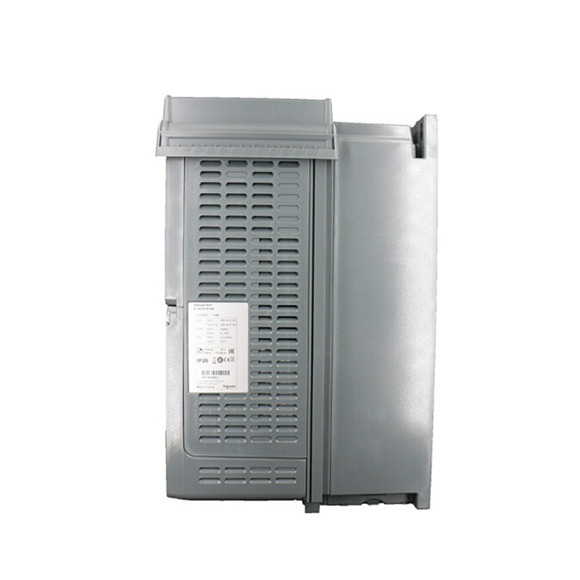

| Item | Schneider VFD Inverter Drive ATV610 Series 0.75-160KW | ||||
| Mounting type | Cabinet integration | ||||
| Degree of protection | IP20 | ||||
| Power range for 50…60 Hz line supply | Three phase: 380…480 V (kW/HP) | 0.75…90/1…120 | |||
| Three-phase: 400 V (kW) | – | ||||
| Three-phase: 440 V (kW) | – | ||||
| Three-phase: 480 V (HP) | – | ||||
| Three-phase: 500 (kW) | – | ||||
| Three-phase: 600 (HP) | – | ||||
| Three-phase: 690 (kW) | – | ||||
| Drive | Output frequency | 0.1… 500 Hz | |||
| Control type | Asynchronous motor | Standard constant torque, variable standard torque, optimized torque mode | |||
| Synchronous motor | PM (permanent magnet) motor, synchronous reluctance motor | ||||
| Functions | Advanced functions | Including all the advanced features of ATV600:b Accurate measurement for monitoring system energy consumption (deviation < 5%)
b Installation energy drift detection b Embedded Ethernet with direct access to system configuration and monitoring b Integration of actual pump curves to optimize the system operating point b Optimized pump monitoring based on actual operating point b Sensorless estimated flow rate b Measurements expressed in working units (e.g. m3/h, kWh/m3) b Limitation of overvoltage at the motor terminals b Contextual access to technical documentation through dynamic QR code b Continuous and historical real-time measurements with customizable dashboards b Predictive and preventive maintenance tracking functions (e.g. temperatures with PT100/1000 probe, fan monitoring) Easy setting of drive identification for Altivar Process Modular drives from 110 kW up to 800 kW (150…1100 HP) |
|||
| Integrated safety function | 1: STO (Safe Torque Off) SIL3 | ||||
| Number of preset speeds | 16 | ||||
| Number of integrated I/O | Analog inputs | 3: Configurable as voltage (0…10 V) or current (0-20 mA/4-20 mA), 2 of them including probes(PTC, PT100, PT1000, or KTY84) | |||
| Digital inputs | 6: Voltage 24 V c (positive or negative logic) | ||||
| Digital output | – | ||||
| Analog outputs | 2: Configurable as voltage (0…10 V) or current (0-20 mA) | ||||
| Relay outputs | 3: 1 with NO/NC contacts and 2 with NO contacts | ||||
| Safety function inputs | 2: For safety function STO | ||||
| I/O expansion modules (optional) | Analog inputs | 2 differential analog inputs configurable via software as voltage (0…±10 V) orcurrent (0-20 mA/ 4-20 mA), or for PTC, PT100, or PT1000, 2- or 3-wire | |||
| Digital inputs | 6: Voltage 24 V c (positive or negative logic) | ||||
| Digital outputs | 2: Assignable | ||||
| Relay output module (optional) | Relay outputs | 3: NO contacts | |||
| Communication | Integrated | Modbus/TCP, Modbus serial link | |||
| Option modules | Ethernet/IP, Modbus TCP and MD-Link dual port, CANopen Daisy chain, SUB-D and screwterminal block, PROFINET, PROFIBUS DP V1, DeviceNet, BACnet MS/TP, POWERLINK | ||||
| Configuration and runtime tools | Graphic display terminal, embedded Web server, DTM (Device Type Manager), SoMovesoftware | ||||
| Standards and certifications | 86/188/EEC, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6,EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1,
TÜV certification, e marking |
||||
