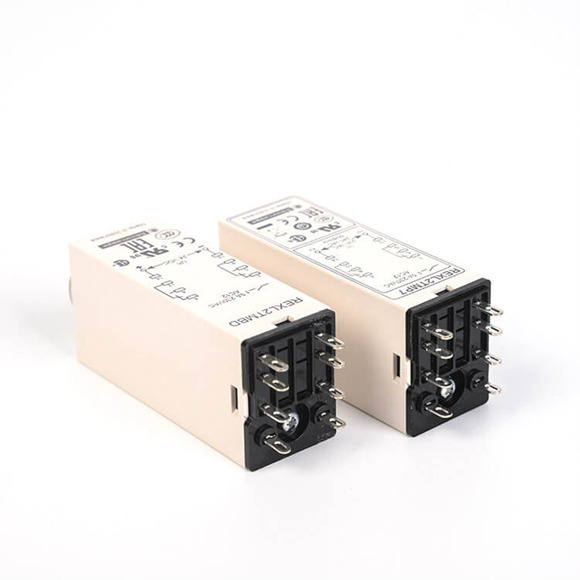

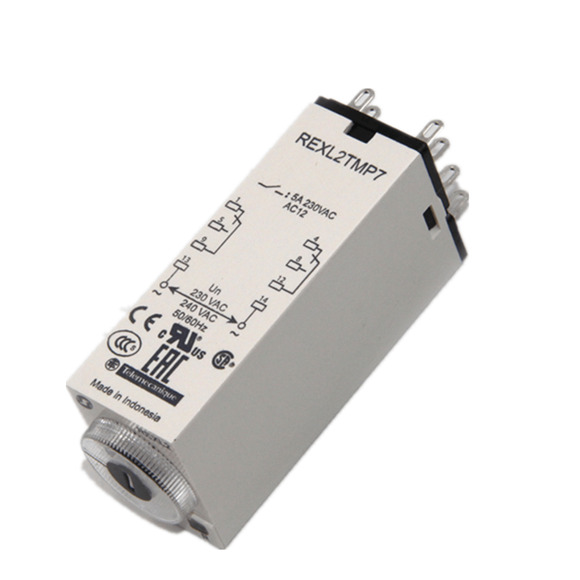

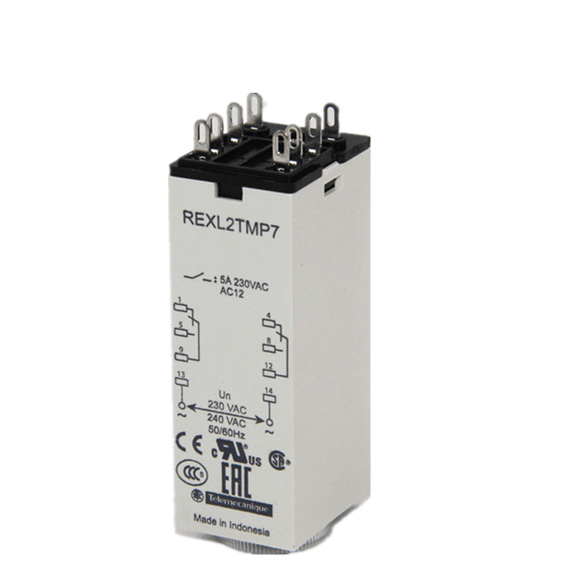

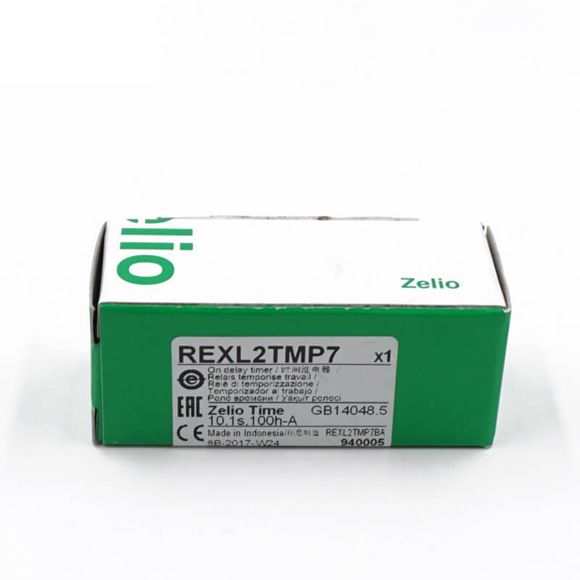

Schneider Zelio Timer Relays REXL2TMP7 AC220V

Series#: Schneider Modular timing relay

Product Details

Qty:

Specification

range of product Zelio Time
product or component type Miniature timing relay
fixing mode Plug-in (socket)
discrete output type Relay
contacts type and composition 2 C/O
component name REXL
time delay type A
time delay range 10…100 h
1…10 min
1…10 h
0.1…1 s
6…60 min
6…60 s
1…10 s



contacts material Cadmium free
[Us] rated supply voltage 230 V AC 50/60 Hz
voltage range 0.85…1.15 Us
[In] rated current 5 A AC
repeat accuracy +/- 0.5 %
setting accuracy of time delay 10 % at full scale at 25 °C conforming to EN/IEC 61812-1
temperature drift 0.05 %/°C
maximum reset time 250 ms after time delay, on de-energisation
50 ms during time delay, on de-energisation
voltage drift +/- 0.2 %/V
maximum switching capacity 4 x 5 A
maximum temporary permissible current 10 A for < 10 s
minimum switching current 100 mA
electrical durability 100000 cycles at 250 V AC resistive
mechanical durability 10000000 cycles
maximum power consumption 3 VA
[Ui] rated insulation voltage 250 V conforming to IEC 255 Group C
250 V conforming to VDE 0010
output overvoltage protection 2 J
surge withstand 2 kV conforming to EN/IEC 61000-4-5 level 3
creepage distance 4 kV/3 conforming to IEC 60664-1
local signalling 1 LED (red)output in operation:
1 LED (yellow)power ON:
net weight 0.05 kg
