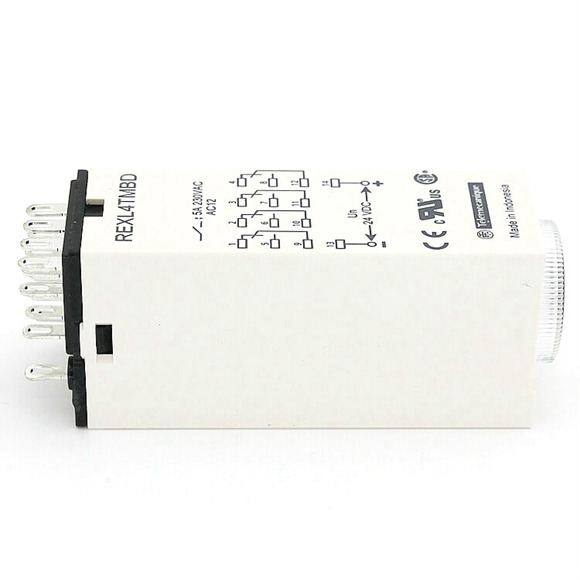

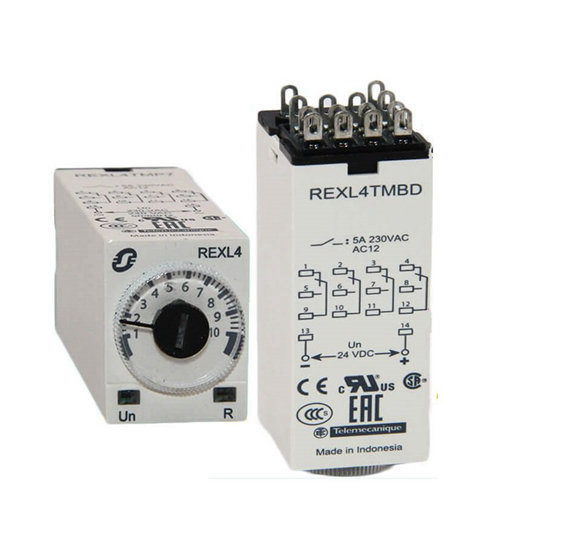

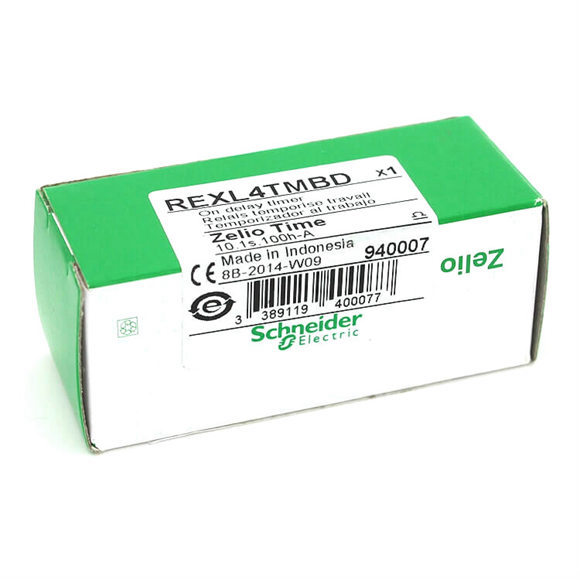

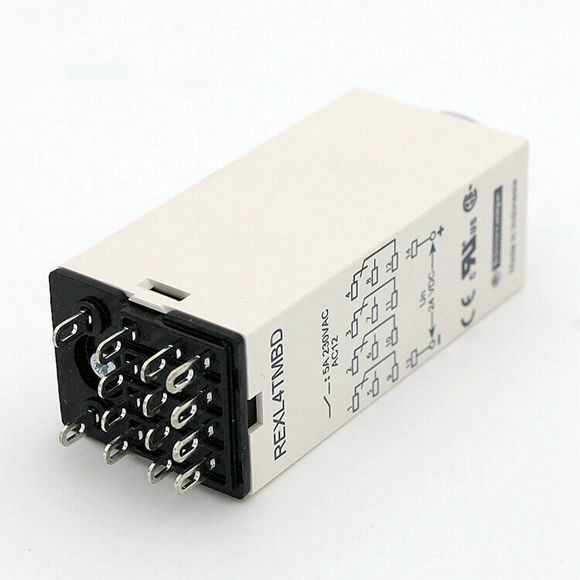

Schneider Zelio Timer Relays REXL4TMBD DC24V

Schneider Zelio Timer Relays REXL4TMBD DC24V
Modular timing relay, 5 A, 4 CO, 0.1 s..100 h, on-Delay, 24 V DC
We are First Class Schneider Relays dealer and Schneider Relays distributor in China.
We can Supply All kinds Schneider Relays,such as Schneider Interface Relays,Schneider Miniature Relays,Schneider Power Relays,Schneider Timer Relays,Schneider Control Relays and Schneider Relays Socket.
100% Original and new,In stock by Schneider Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

range of product	Zelio Time
product or component type	Miniature timing relay
fixing mode	Plug-in (socket)
discrete output type	Relay
contacts type and composition	4 C/O
component name	REXL
time delay type	A
time delay range	10…100 h 6…60 s 6…60 min 1…10 s 1…10 h 1…10 min 0.1…1 s

contacts material	Cadmium free
[Us] rated supply voltage	24 V DC
voltage range	0.9…1.1 Us
[In] rated current	5 A AC
repeat accuracy	+/- 0.5 %
setting accuracy of time delay	10 % at full scale at 25 °C conforming to EN/IEC 61812-1
temperature drift	0.05 %/°C
maximum reset time	250 ms after time delay, on de-energisation 50 ms during time delay, on de-energisation
voltage drift	+/- 0.2 %/V
maximum switching capacity	4 x 5 A
maximum temporary permissible current	10 A for < 10 s
minimum switching current	100 mA
electrical durability	100000 cycles at 250 V AC resistive
mechanical durability	10000000 cycles
maximum power consumption	1.2 W
[Ui] rated insulation voltage	250 V conforming to IEC 255 Group C 250 V conforming to VDE 0010
output overvoltage protection	2 J
surge withstand	2 kV conforming to EN/IEC 61000-4-5 level 3
creepage distance	4 kV/3 conforming to IEC 60664-1
local signalling	1 LED (red)output in operation: 1 LED (yellow)power ON:
net weight	0.05 kg
