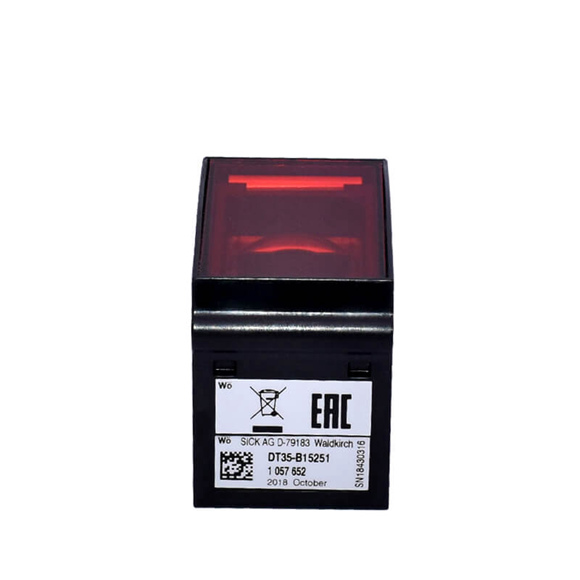

Sick Distance Sensors DT35-B15851

Series#: Sick Distance Sensors

Product Details

Qty:

Specification



Supply voltage Vs DC 12 V … 30 V 1) 2)
Ripple ≤ 5 Vpp 3)
Power consumption ≤ 1.7 W 4) 5)
Initialization time ≤ 500 ms
Warm-up time ≤ 20 min
Housing material Plastic (ABS/PC)
Window material Plastic (PMMA)
Connection type Male connector, M12, 5-pin
Indication LEDs
Weight 65 g
Dimensions (W x H x D) 32 mm x 58.67 mm x 42.7 mm
Enclosure rating IP65

IP67

Protection class III
Measuring range 50 mm … 12,000 mm, 90 % remission 1) 2)

50 mm … 5,300 mm, 18 % remission

50 mm … 3,100 mm, 6 % remission

Target Natural objects
Resolution 0.1 mm
Repeatability ≥ 0.5 mm 2) 3) 4)
Accuracy Typ. ± 10 mm 4)
Response time 2.5 ms … 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms 5) 6)
Switching frequency 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz 5) 6)
Output time 1 ms … 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms 5) 7)
Light source Laser, infrared 8)
visible red light
Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014)
Typ. light spot size (distance) 15 mm x 15 mm (at 2 m)
Additional function Set speed: Super Fast … Super Slow, teach-in of analog output and invertible analog output, Output Q2 adaptable: Current output / Voltage output / Digital output, Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB), teach-in of digital output and digital output invertible, Multifunctional input: laser off / external teach / deactivated, reset to factory default
