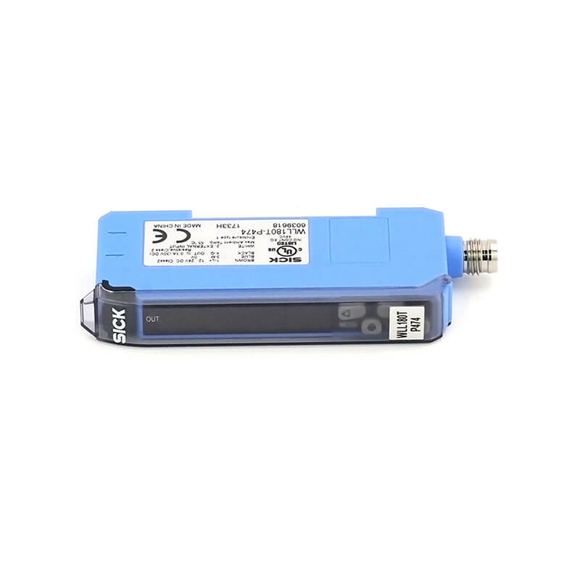

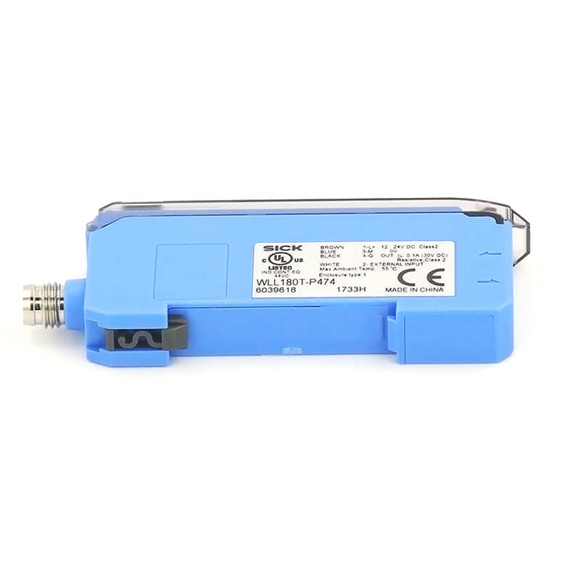

Sick Fiber-optic sensors WLL180T-P432 WLL180T-P434 WLL180T-P474 WLL180T-P435

Series#: Sick Fiber Sensors

Product Details

Qty:

Specification



Type Stand-alone
Dimensions (W x H x D) 10.5 mm x 34.6 mm x 71.9 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m … 20 m, Through-beam system 1) 2)
Sensing range 0 mm … 1,400 mm, Proximity system 3) 4)

0 … 18 m, Through-beam system 1) 2)

Focus 5)
Type of light Visible red light
Light source LED 6)
Angle of dispersion Approx. 65° 5)
Wave length 650 nm
Adjustment Menu-controlled

Single teach-in button

Cable

Delay time Programmable, 0 ms … 9,999 ms
Time functions Without time delay

Off delay

On delay

ON and OFF delay

One shot

Indication Display
Display LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters



Supply voltage 12 V DC … 24 V DC 1)
Ripple ≤ 10 % 2)
Power consumption 50 mA 3)
Switching output PNP
Number of switching outputs 1
Switching mode Light/dark switching
Switching mode selector Manually selectable
Output current Imax. ≤ 100 mA
Response time ≤ 16 µs, ≤ 70 µs, ≤ 250 µs, ≤ 2,000 µs, ≤ 8,000 µs 4)
Switching frequency 31.2 kHz

7.1 kHz

2 kHz

250 Hz

62.5 Hz

Time functions Without time delay

Off delay

On delay

ON and OFF delay

One shot

Delay time Programmable, 0 ms … 9,999 ms
Input Multifunctional input MF
Connection type Cable, 4-wire, 2 m 5)
Cable material PVC
Conductor cross-section 0.2 mm²
Circuit protection A 6)

B 7)

C 8)

D 9)

Protection class III
Weight 25 g
Housing material Plastic, ABS/PC
Enclosure rating IP50 10)
Items supplied BEF-WLL180 mounting bracket
Ambient operating temperature –25 °C … +55 °C
Ambient storage temperature –40 °C … +70 °C
UL File No. NRKH.E300503
